Toro Groundsmaster 5900 Series Installation Instructions

7
InstallingtheRearLights
Partsneededforthisprocedure:
1Rightpivotbracket
1
Leftpivotbracket
2Pivotarm
1
Leftlampshroud
1Rightlampshroud
4
Cabletie
8
Clip
2Rearlamppanel
18
Hex-washerbolt(1/4x3/4inch)
8
Nut(1/4inch)
8Rollpin
2
Spring
2Washer
6
Bolt(3/8x1inch)
8
Nut(3/8inch)
1Tail-lightwireharness
1Licensewireharness
1Rightdirectionindicatorlight
1
Leftdirectionindicatorlight
4
Locknut(M4)
Procedure

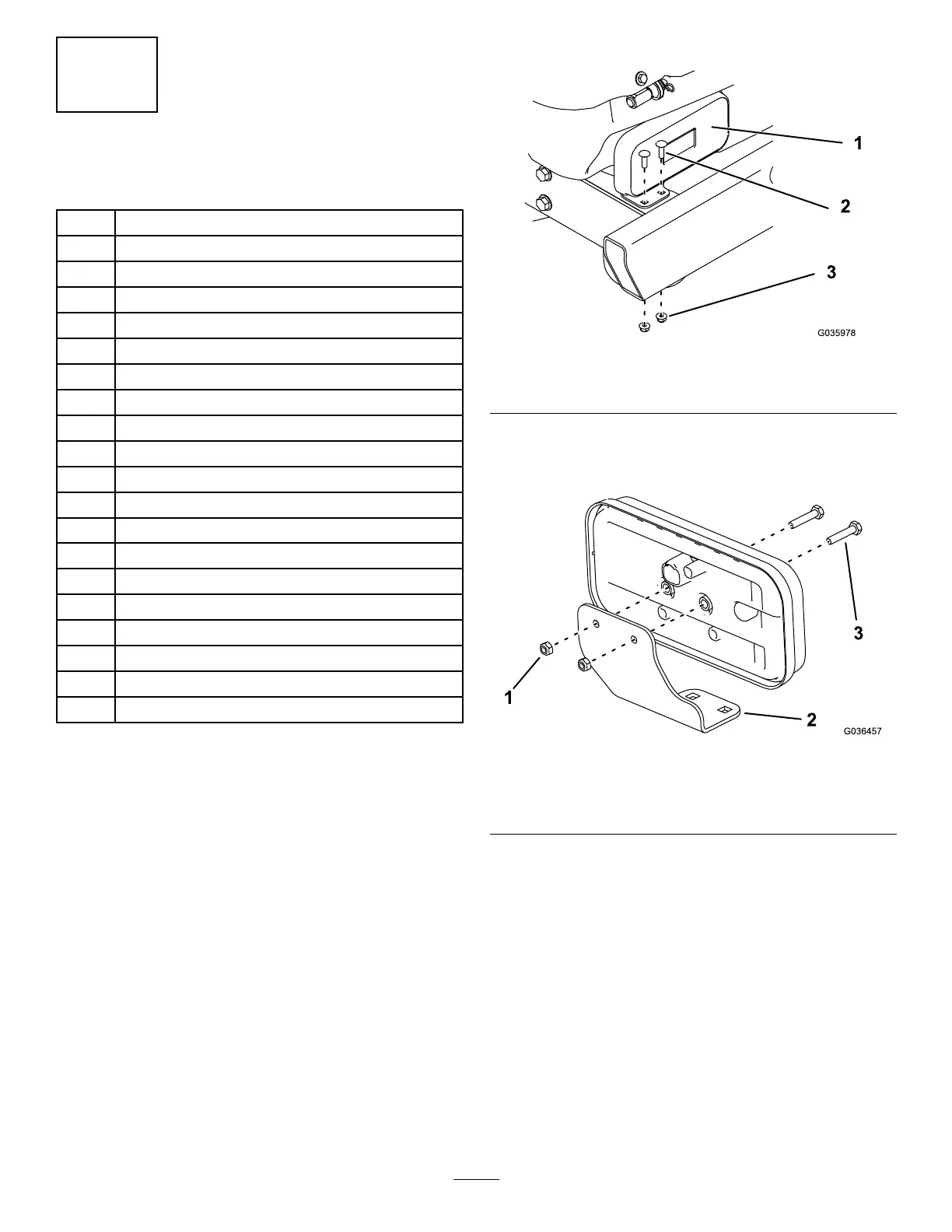

1.Unplugthewireharnessfrombothtaillights(Figure
13).
2.Removethetaillightsfromthemachine(Figure13)
g035978
Figure13
1.Taillight2.Bolt3.Nut
3.Removethereectorfromthelightsandremovethe
lightsfromthemountingbrackets(Figure14);retain
thelightsandfasteners.
g036457
Figure14
1.Locknut(M6)3.Bolt(M6x30)
2.Mountingbracket
8

Toro Groundsmaster 5900 Series Specifications

General

Deck Lift	Hydraulic
Cutting Width	16 ft (4.9 m)
Drive System	4WD
Cutting Height	1 - 6 inches (2.5 - 15.2 cm)
Ground Speed	0-17 mph (0-27.4 km/h)
Transmission	Hydrostatic
Turning Radius	Zero-turn
Standard Tires	26 x 12-12
