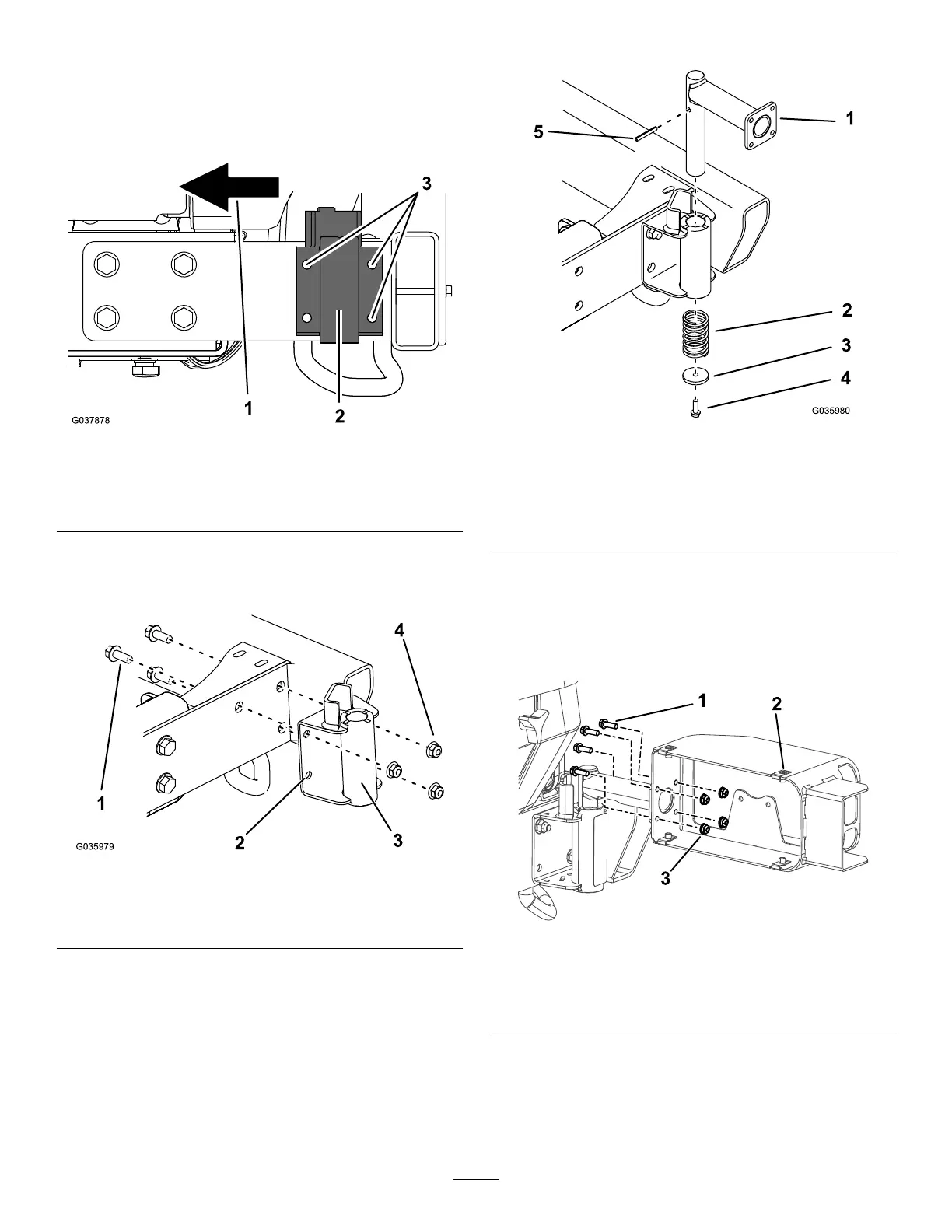

4.Holdthepivotbracketontherearoftheleftframe
anddrill3holes(10mmor0.39inchdiameter)inthe
locationsshowninFigure15.
Note:Youwillnotusethelowerfrontholeinthe
pivotbracket.
g037878
Figure15
1.Directiontowardthefront
ofthemachine
3.Drillhere.
2.Pivotbracket
5.Installtheleftpivotbrackettothebumperbracket
using3bolts(3/8x1inch)and3nuts(3/8inch)as
showninFigure16.
g035979
Figure16
1.Bolt(3/8x1inch)
3.Pivotbracket
2.Unusedhole
4.Nut(3/8inch)
6.Insertarollpininthepivotarm(Figure17).
g035980
Figure17
1.Pivotarm
4.Hex-washerbolt(1/4x3/4
inch)
2.Spring
5.Rollpin
3.Washer
7.Installaspring,washer,hex-washerbolt(1/4x3/4
inch),andpivotarmtothepivotbracket(Figure17)
8.Installtheleftlampshroudtothepivotarmusing4
hex-washerbolts(1/4x3/4inch)and4nuts(1/4inch)
asshowninFigure18.
g205339
Figure18
1.Hex-washerbolt(1/4x3/4
inch)
3.Nut(1/4inch)
2.Lampshroud
9

Toro Groundsmaster 5900 Series Specifications

General

Deck Lift	Hydraulic
Cutting Width	16 ft (4.9 m)
Drive System	4WD
Cutting Height	1 - 6 inches (2.5 - 15.2 cm)
Ground Speed	0-17 mph (0-27.4 km/h)
Transmission	Hydrostatic
Turning Radius	Zero-turn
Standard Tires	26 x 12-12
