Toro Groundsmaster 5900 Series Installation Instructions

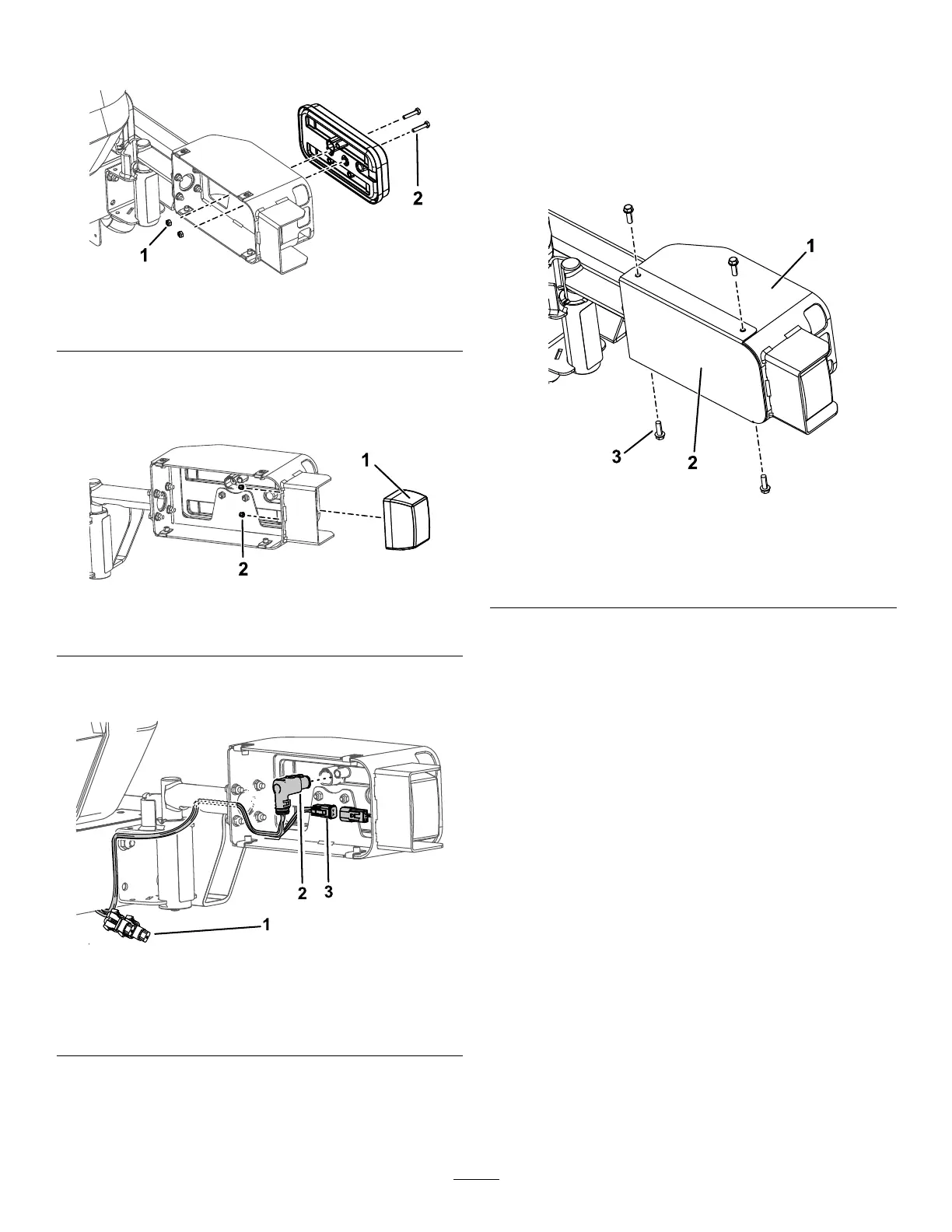

9.Installtheleftlighttotheshroudusing2bolts(M6x
30)and2nuts(M6)thatyouremovedin2(Figure19).
g205340
Figure19
1.Nut(M6)2.Bolt(M6x30)
10.Installthereectortothelight.
11.Installtheleftdirectionindicatorlightandsecurewith
2locknuts(Figure20).
g205338
Figure20
1.Directionindicatorlight2.Locknuts
12.Connectthelefttaillightconnectorofthetail-light
wireharnesstothelight(Figure21).
g205337
Figure21
1.Fuses
3.leftdirectionindicatorlight
connector
2.Lefttail-lightconnector
13.Connecttheleftdirectionindicatorlightconnectorof
thedirectionindicatorlightwireharnesstothelight
(Figure21).
14.Routethewireharnessundertheframeofthemachine
andconnecttheotherendofthetail-lightwireharness
tothemachinewireharness.
Note:Usethelefttail-lightconnectionthatyou
disconnectedinstep1.
15.Installtherearlightpanelusing4hex-washerbolts
(1/4x3/4inch)asshowninFigure22.
g205341
Figure22
1.Light
3.Hex-washerbolt(1/4x3/4
inch)
2.Rearlightpanel
16.Repeatsteps2through15fortherighttaillightand
license-platewireharness.
17.Connectthewireharnesstothelicense-platelight.
10

Toro Groundsmaster 5900 Series Specifications

General

Deck Lift	Hydraulic
Cutting Width	16 ft (4.9 m)
Drive System	4WD
Cutting Height	1 - 6 inches (2.5 - 15.2 cm)
Ground Speed	0-17 mph (0-27.4 km/h)
Transmission	Hydrostatic
Turning Radius	Zero-turn
Standard Tires	26 x 12-12
