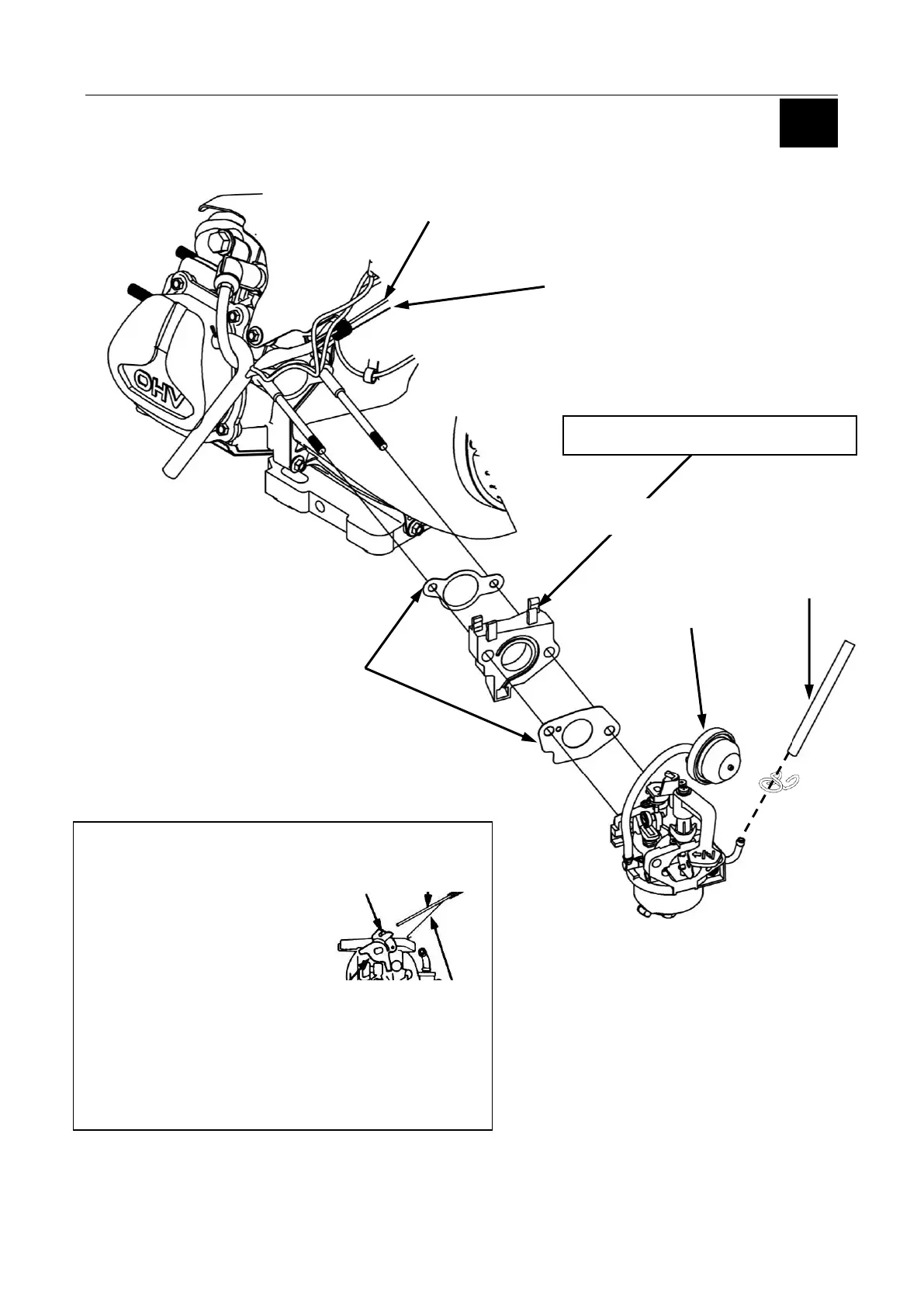

Carburetor Mounting
Note spacer orientation for installation
Carburetor Removal:
-Remove throttle return spring
from throttle shaft
-Pull Carburetor outward
-Align governor rod with notch
in throttle shaft
-Remove governor rod
and remove carburetor
Throttle
Shaft
Throttle
Return spring
Governor Rod
Notch
Fuel Hose
Governor Rod
Throttle Return Spring
Gasket
Spacer
Primer Asm.
