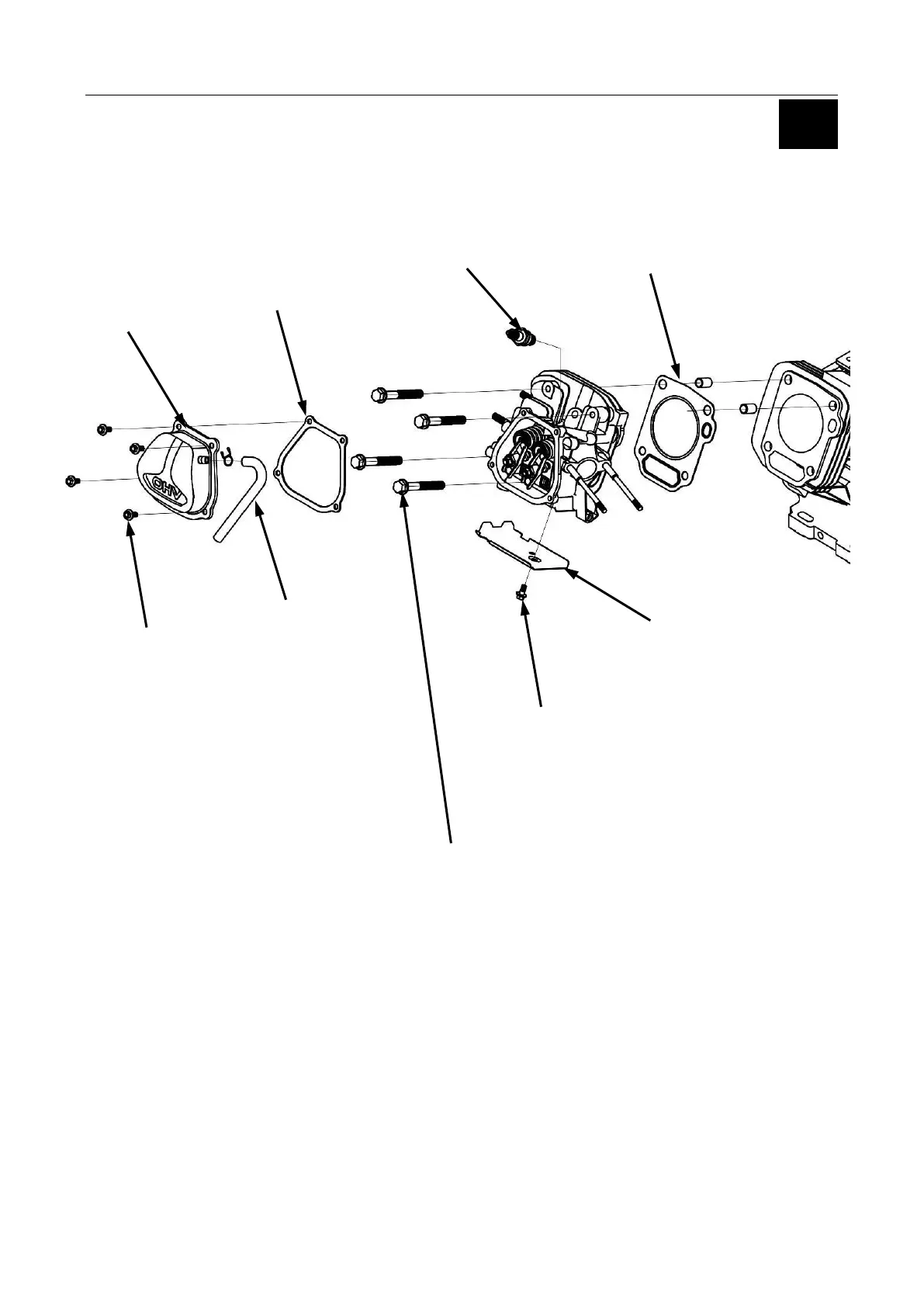

Cylinder Head Exploded View and Service Information
Valve Cover
7 ft-lbs (10 Nm)
Gasket
Breather
Tube
Spark Plug
22 ft-lbs (30 Nm)
Gasket
7 ft-lbs (10 Nm)
Shroud
Cylinder Head Bolt Torque Sequence:
1. Initially Torque the (4) Cylinder Head Bolts in a Crisscross Pattern to 10 ft-lbs (14 Nm).
2. Evenly Torque the (4) Cylinder Head Bolts in a Crisscross Pattern to 35 ft-lbs (48 Nm).
3
