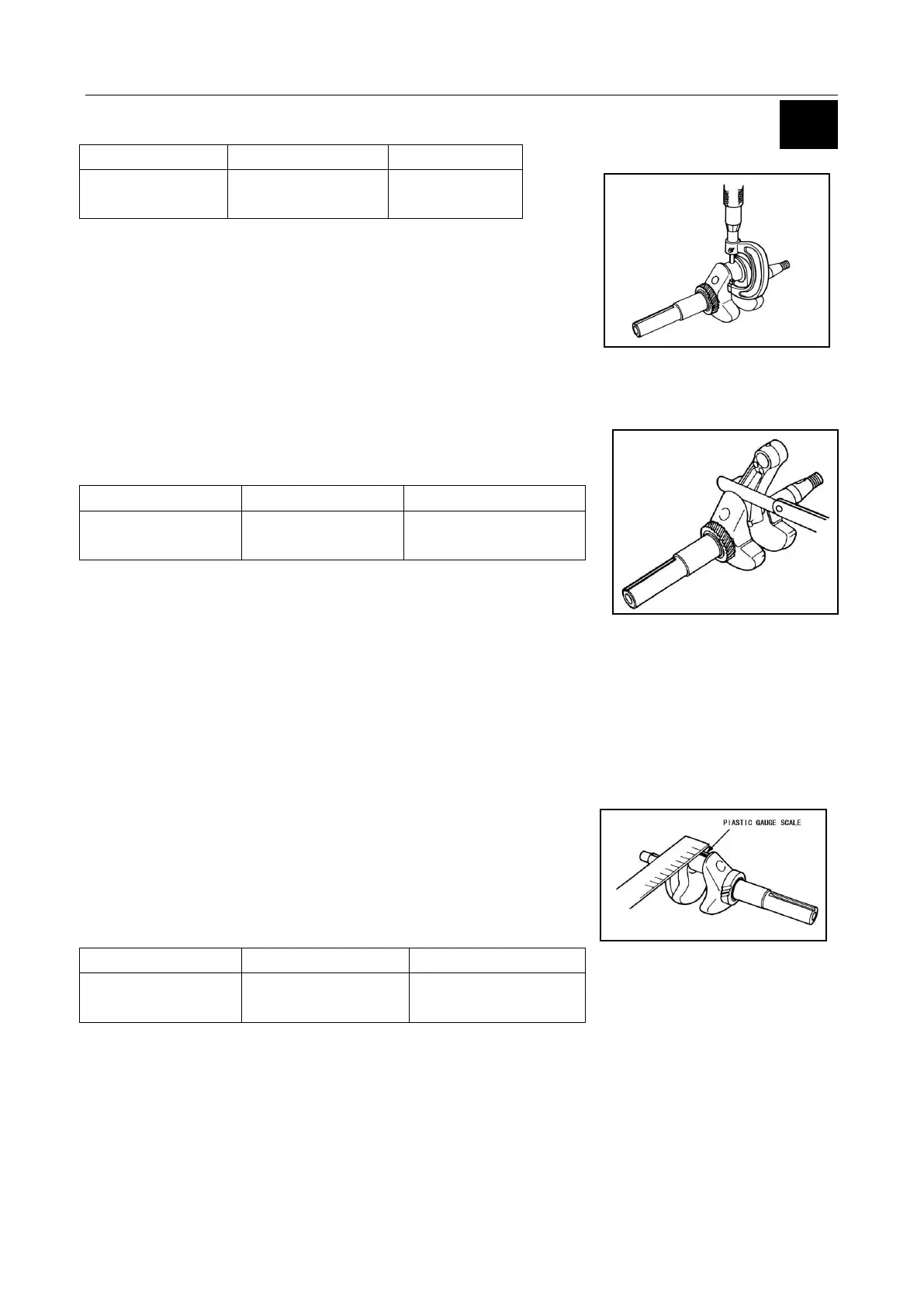

Crankshaft Pin Outside Diameter
Engine
Standard
Service Limit
175FDS-1
180FDS-1
1.2979” - 1.2984”
(32.966-32.981 mm)
1.296”
(32.92 mm)
Connecting Rod Big End Side Clearance
Engine
Standard
Service Limit
175FDS-1
180FDS-1
0.0039 - 0.0275”
(0.1-0.7 mm)
0.0394”
(1.0 mm)
Connecting Rod Big End Oil Clearance
- Clean oil from the crankshaft and connecting rod.
- Use plastic gauge style measuring tool in accordance
to the manufactures instructions to measure the oil clearance.
Connecting Rod Bolt Torque: 14 ft-lbs (19Nm)
Engine
Standard
Service Limit
175FDS-1
180FDS-1
0.00157 - 0.00259”
(0.04-0.066 mm)
0.00472”
(0.12 mm)
3
