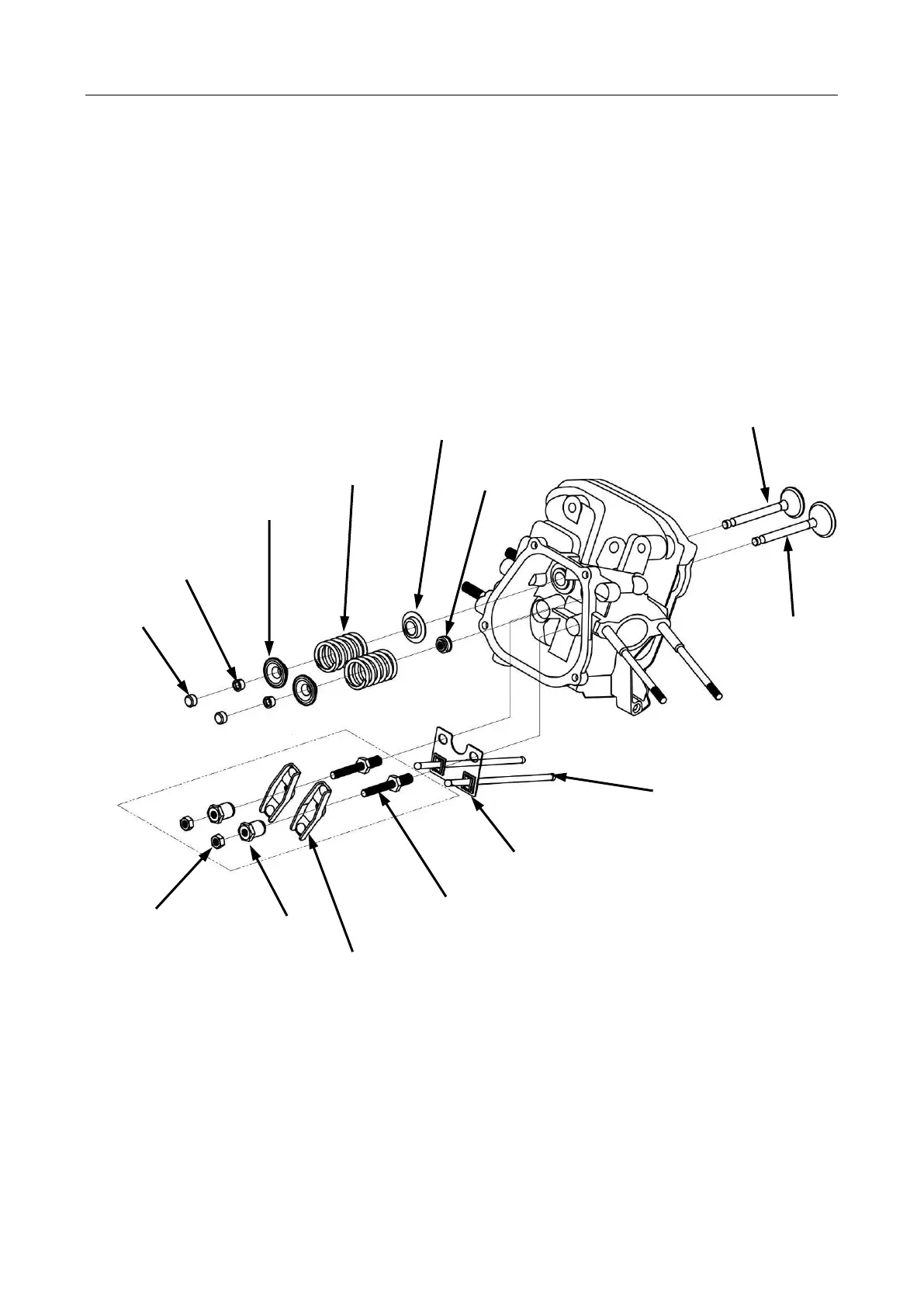

Cylinder Head / Valves Exploded View and Service Information
Exhaust Valve
Intake Valve
Push Rod
Guide Plate
Studs
23 ft-lbs (31 Nm)
Rocker Arm
Pivot
Pivot Lock Nut
11 ft-lbs (15 Nm)
Valve Keeper
Valve Keeper
Rotator
Retainer
Valve Spring
Spring Seat
Seal
