22

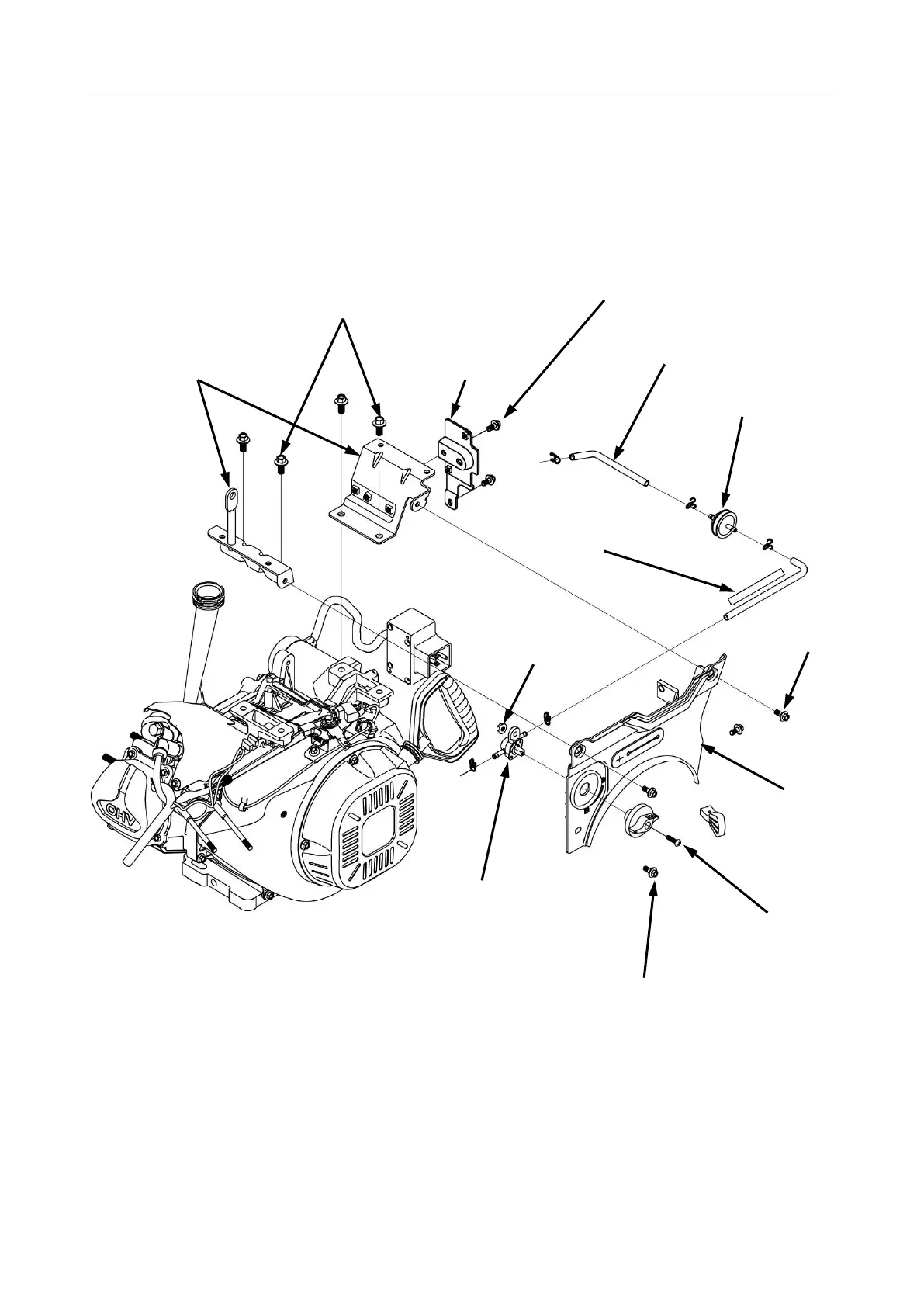

Engine Cover / Front Panel / Fuel Tank / Fuel Hose Exploded View
Fuel Tank
Mounting Bracket
19 ft-lbs (26 Nm)
Starter Switch
Bracket
7 ft-lbs (10 Nm)
Fuel Filter
Fuel Hose
Fuel Hose
and Sleeve
Fuel Shut
Off Valve
7 ft-lbs
(10 Nm)
Front
Panel
18 in-lbs (2 Nm)
7 ft-lbs (10 Nm)
7 ft-lbs (10 Nm)
