Spark Testing
- Fuel is Extremely Flammable - Use Extreme Caution When Servicing the Fuel System
- High Voltage Ignition Systems can be Dangerous - Use Caution when Servicing Ignition Systems
1. Remove spark plug cap from the spark plug.
2. Remove the spark plug from the engine.
3. Connect the negative (-) electrode of the spark plug (threaded area) to ground (cylinder head cover).
4. Crank the engine and view the electrode gap. Spark should be present when engine is turning over.
5. Reinstall the spark plug and torque to specification - 22 ft-lbs (30 Nm).
6. Properly install the spark plug cap

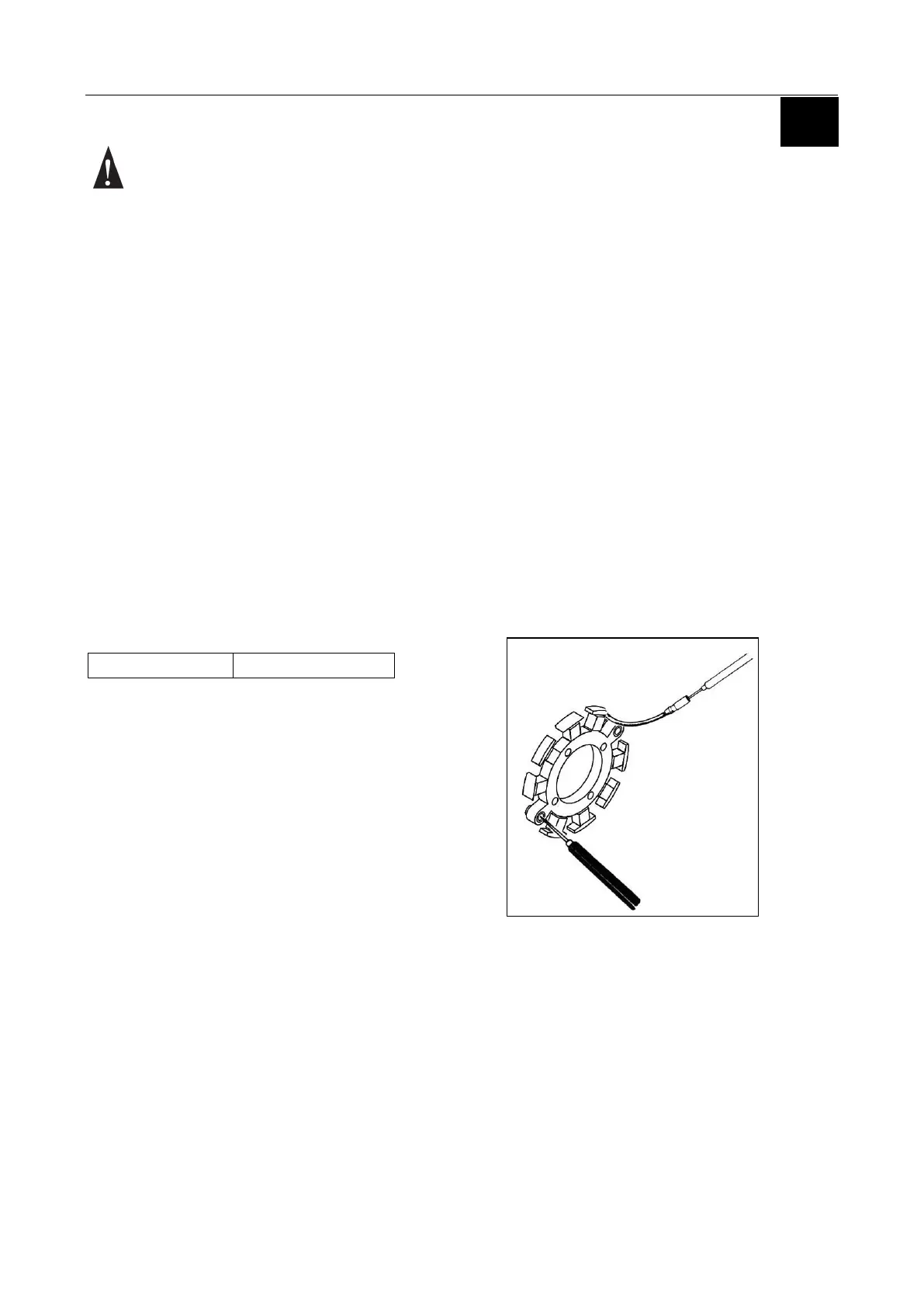

Stator Resistance Test
Measure resistance between lead wire terminals as shown.
