Toro LC1P92F - Fuel Filter Replacement

16

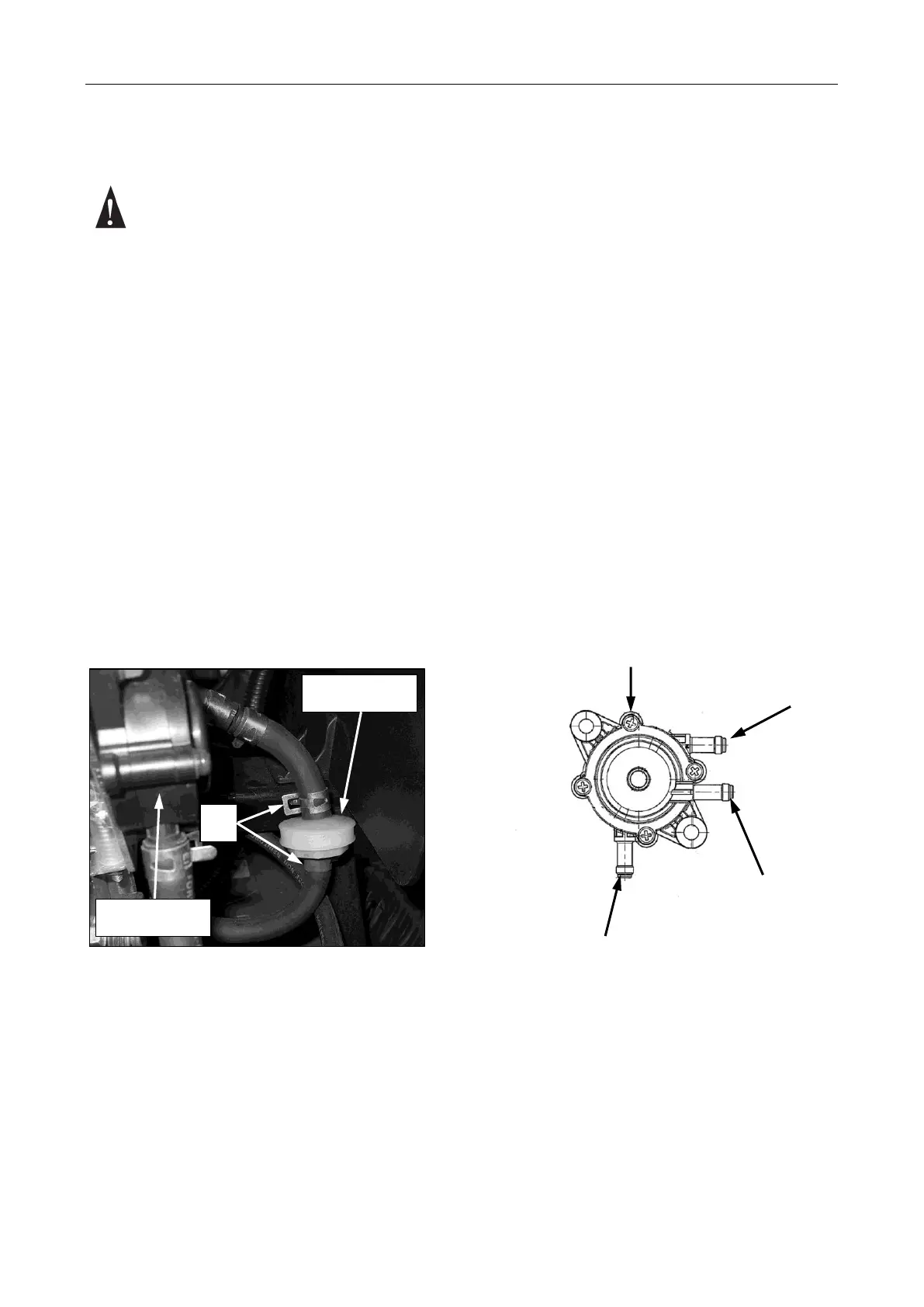

Fuel Filter and Replacement
- Fuel is Extremely Flammable - Use Extreme Caution When Servicing the Fuel System
1. Place a proper fuel drain pan under the fuel filter area.
2. Release the fuel filter / fuel hose clamps (A) and slide them away from the filter.
3. Remove the fuel filter from the (2) fuel hoses.
4. Install new fuel filter and reinstall the fuel hose clamps (A). Make note of installation direction for proper
fuel flow.
5. Verify hose routing and check for leaks.
6. Properly dispose of any fuel.
A
Fuel Pump
Fuel Filter
Fuel Pump
Fuel Out
Fuel In
Pulse Line
