Engine Service – Lower End

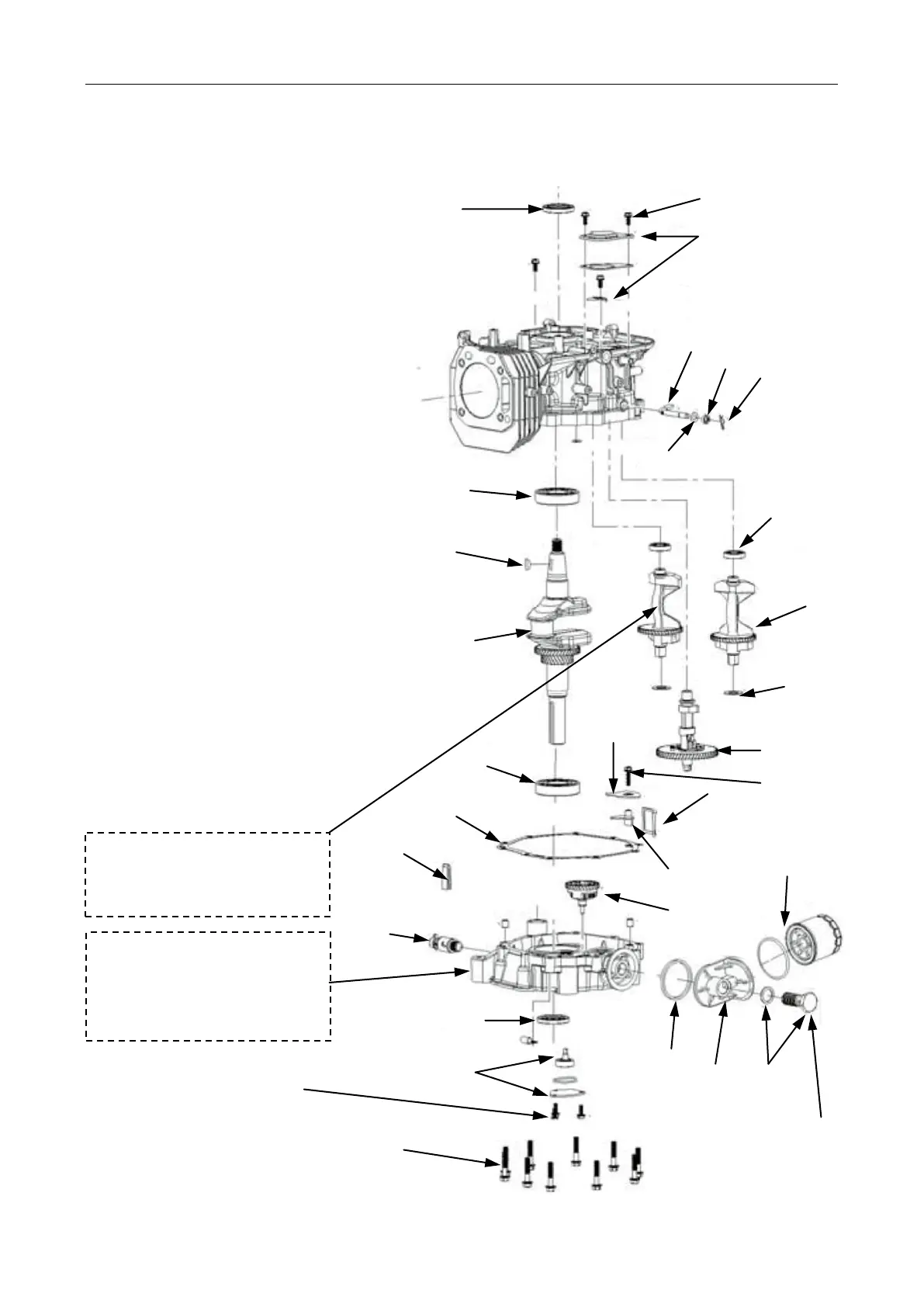

Crankcase Exploded View and Service Information
A Oil Seal
B Breather Reed Valve Asm.
C Governor Shaft
D Oil Seal
E Pin / Clip
F Washer
G Bearing (2)
H Balance Shaft (LH and RH)
I Thrust Washer
J Camshaft
K Bearing
L Key
M Crankshaft
N Bearing
O Gasket
P Oil Baffle Plate
Q Rubber Oil Deflector
R Oil Filter Asm.
S Governor Asm.
T Gasket
U Oil Filter Adaptor
V Bolt and Sealing Washer
W Oil Seal
X Oil Drain Valve
Y Oil Pump Asm.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
M
N
P
Q
R
S
T
U
Y
V
W
X
31 ft-lbs
(42 Nm)
20 ft-lbs (28 Nm)
Torque in a Crisscross Pattern
7 ft-lbs (10Nm)
7 ft-lbs (10Nm)
7 ft-lbs
(10Nm)
Important:
Mark the RH and LH Balance
Shafts for Proper Installation
Important:
Align Oil Pump Drive Shaft
and Camshaft Slot before
Installing Sump Cover
