Camshaft and Balance Shaft Timing
1. Install crankshaft.
2. Align crankshaft and camshaft timing marks and install camshaft.
3. Align the left balance shaft timing marks and install the left balance shaft.
4. Align the right balance shaft timing marks and install the right balance shaft.
3

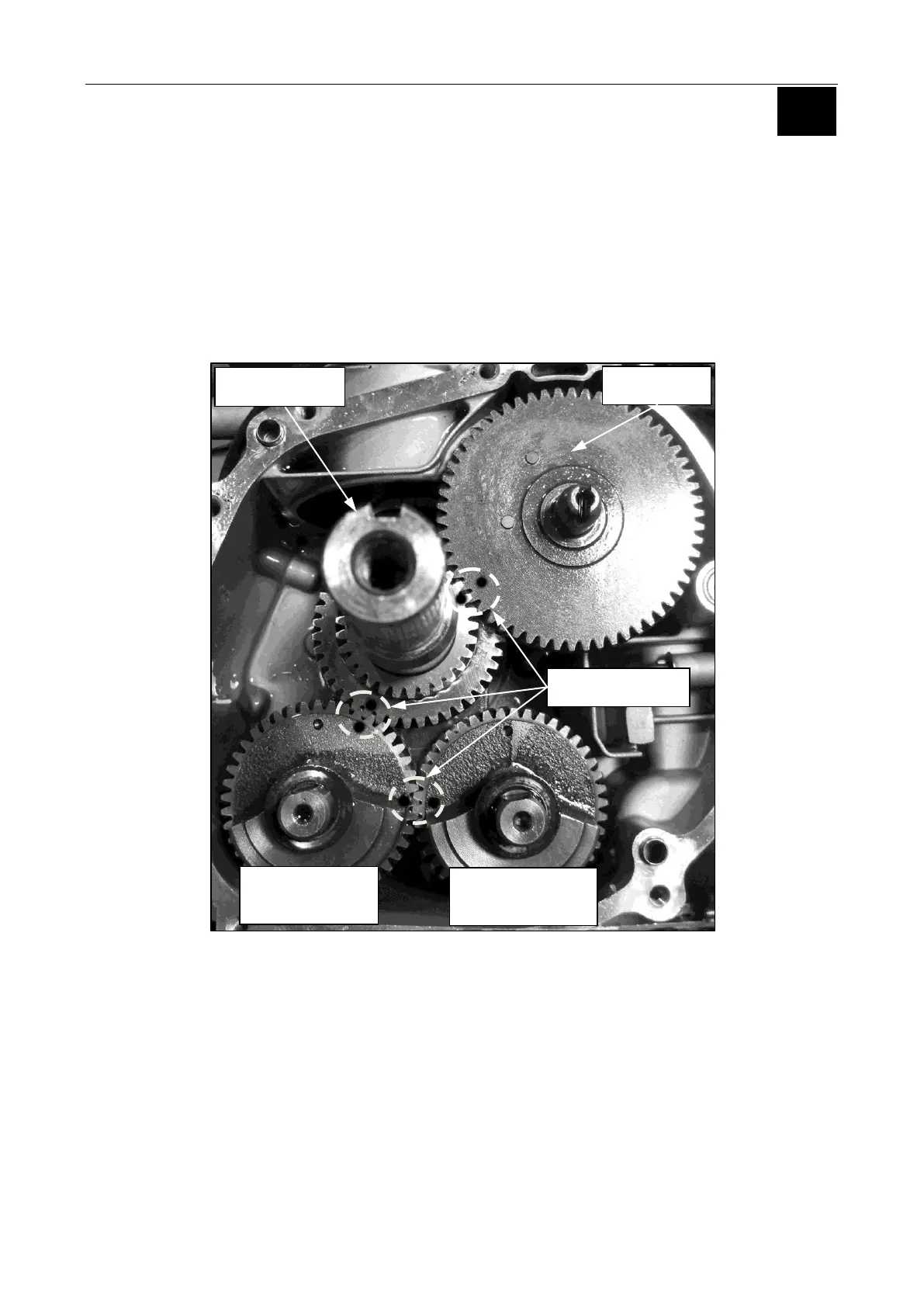

Timing Marks
Crankshaft
Camshaft
Left Balance
Shaft
Right Balance
Shaft
