Toro LC1P92F - Charging System Specifications

38

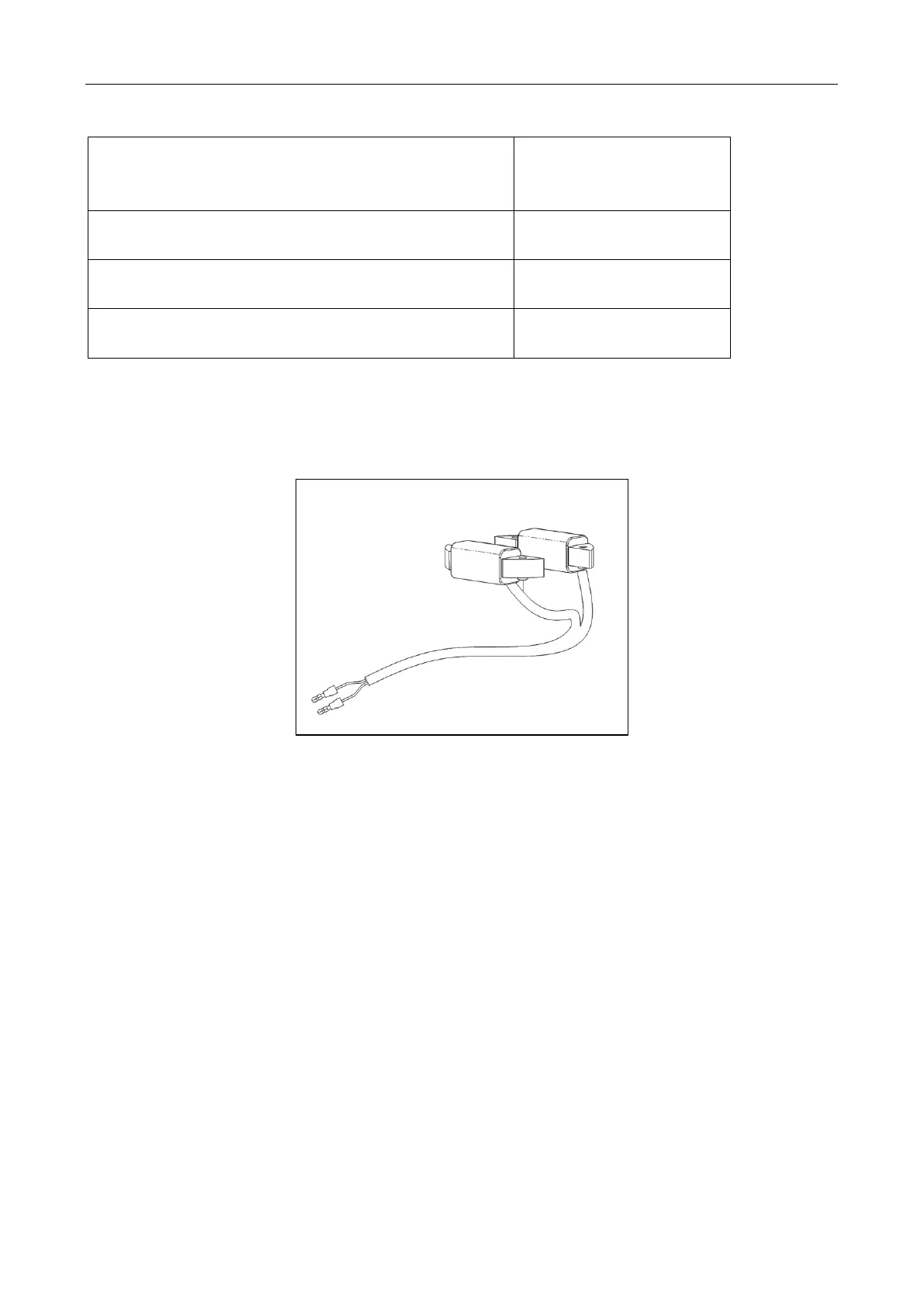

Charging System Specifications
Charge Coil(s) Air Gap
Measure Between the Magnet Area of the Flywheel and the
Charge Coil Legs
0.011- 0.019” (.3-.5 mm)
No Load DC Voltage Output @ 3000 RPM
Measure Across Battery Terminals
14.5 +/- .5 Volts DC
No Load AC Voltage Output @ 3000 RPM
Measure Across Stator Leads – Stator Leads Disconnected
30 VAC
Charge Coil / Stator Resistance
Measure Resistance Across the Two Stator Leads
0.16 Ohms +/- 15%
