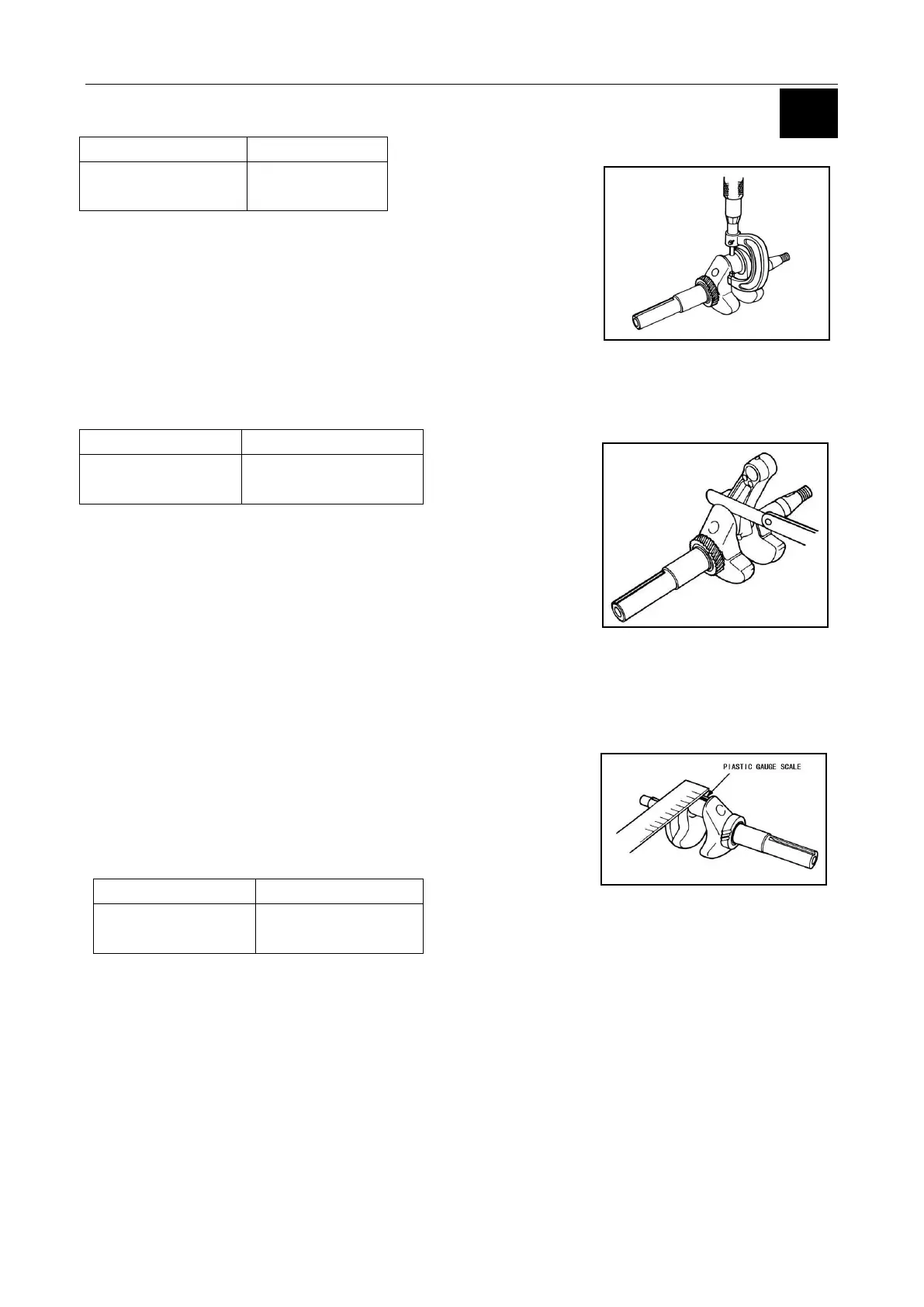

Crankshaft Pin OD
Standard
Service Limit
1.417 - 1.4165”
(35.966-35.981 mm)
1.415”
(35.946 mm)
Connecting Rod Big End Side Clearance
Standard
Service Limit
0.00079 - 0.0138”
(0.02-0.35 mm)
0.00157”
(0.4 mm)
Connecting Rod Big End Oil Clearance
1. Clean oil from the crankshaft and connecting rod.
2. Use plastic gauge style measuring tool in accordance to the
manufactures instructions to measure the oil clearance.
Connecting Rod Bolt Torque: 9.5 ft-lbs (13 Nm)
Standard
Service Limit
0.00157 - 0.00248”
(0.04-0.063 mm)
0.0047”
(0.12 mm)
3
