INTRODUCTION
The Toro Lawn Dial Outdoor Irrigation Controller
is a programmable electronic timer that controls
the watering of six or eleven stations (depending
on the model) using remote solenoid valves.
In a typical irrigation system, there is a Master
Valve (MV) which is switched on whenever one of
the Station Valves (SV) is on.
The Controller is also suitable for use on water
supplies derived by pump from a bore or a dam.
In this case, the Master Valve control line is used
to turn on a Pump Start relay which controls the
power to the pump. The Pump Start relay is not
supplied with the controller. A Relay should be
installed by a qualified electrician.
Note that the Lawn Dial Controller will not power
the pump; it will only control an auxiliary relay
that switches power to the pump.

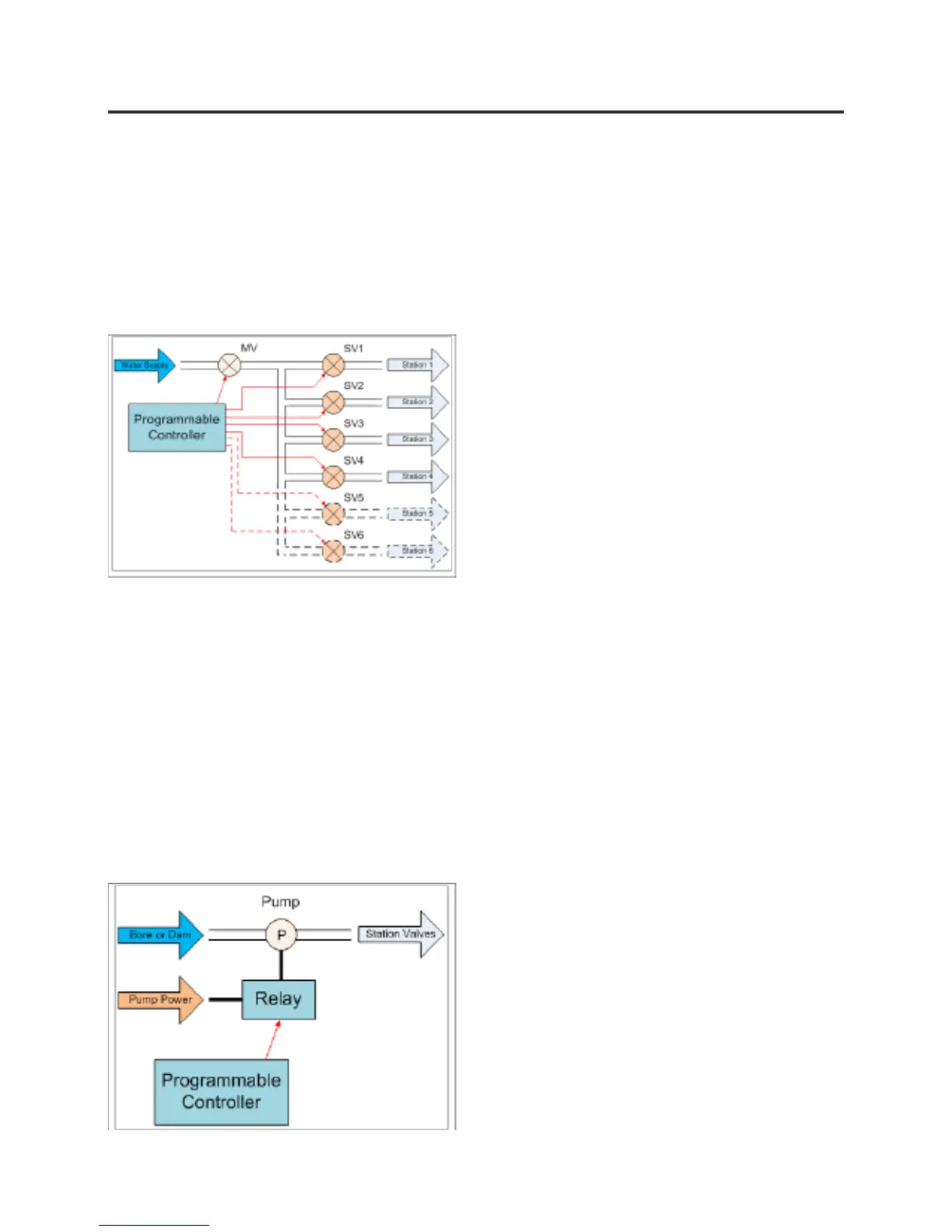

Typical Irrigation System
Using a Pump Control Relay
FEATURES
• Easy to install and program.
• 6 individual Programs.
• 6 individual Start Times per Program.
• 3 dierent watering cycles – day of the week,
odd/even days, and interval.
• Water Budget feature which provides easy
adjustment of watering for seasonal or
weather conditions.
• Rain Sensor function (external sensor
required) to prevent watering when it has
rained.
• Pump delay feature (for use with a bore or
dam pump).
• Station delay feature used to prevent or
reduce issues caused by slow closing
solenoid valves.
• Permanent memory for the retention of all
programmed information. In the event of a
loss of mains power, data will be saved for
up to 5 years. This occurs even if a backup 9V
battery is not fitted.
• Battery back-up (9V battery supplied).
• Weather resistant controller with 240VAC
power lead and plug.
