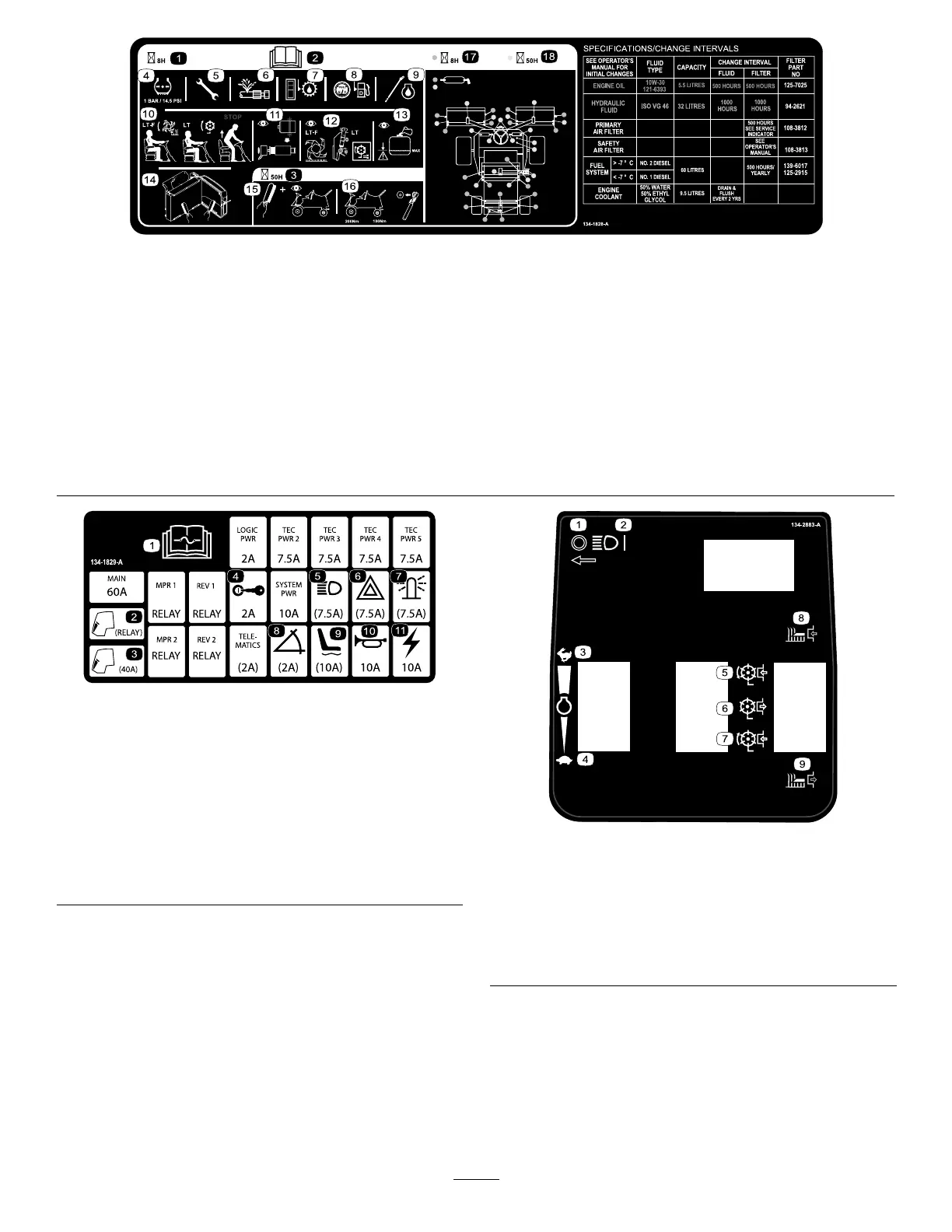

decal134-1828
134-1828
1.8hourserviceinterval
10.Checktheoperationoftheseatswitch.
2.ReadtheOperator’sManual.11.Checktheairlterelement.
3.50hourserviceinterval
12.Checkthecuttingunitsettings.
4.Checkthetirepressure.13.Checktheengine-coolantlevel.
5.Checkallboltsandnutsforpropertightness.14.Checkthecleanlinessoftheradiator.
6.Checkallhosesforleaks.15.Cleanandinspectthemachine.
7.Checkhydraulic-oillevel.16.Checkthewheelnuttightnessusingatorquewrench,front
wheels200N•m,rearwheels100N•m.
8.Checkfuellevel.
17.8hourserviceinterval
9.Checkengine-oillevel.
18.50hourserviceinterval
decal134-1829
134-1829
1.ReadtheOperator’s
Manualforinformationon
fuses.
7.Beacon—7.5A
2.Cab—relay8.Slopesensor—2A
3.Cab—40A
9.Powerseat—10A
4.Keyswitch—2A10.Horn—10A
5.Headlights—7.5A11.Power—10A
6.Hazardwarninglight—7.5
A
decal134-2883
134-2883
1.Headlights—off6.Cuttingunitdrive—off
2.Headlights—on
7.Cuttingunitdrive—reverse
3.Enginespeed—fast8.Cuttingunit—on
4.Enginespeed—slow
9.Cuttingunit—off
5.Cuttingunitdrive—forward
6
