Controls

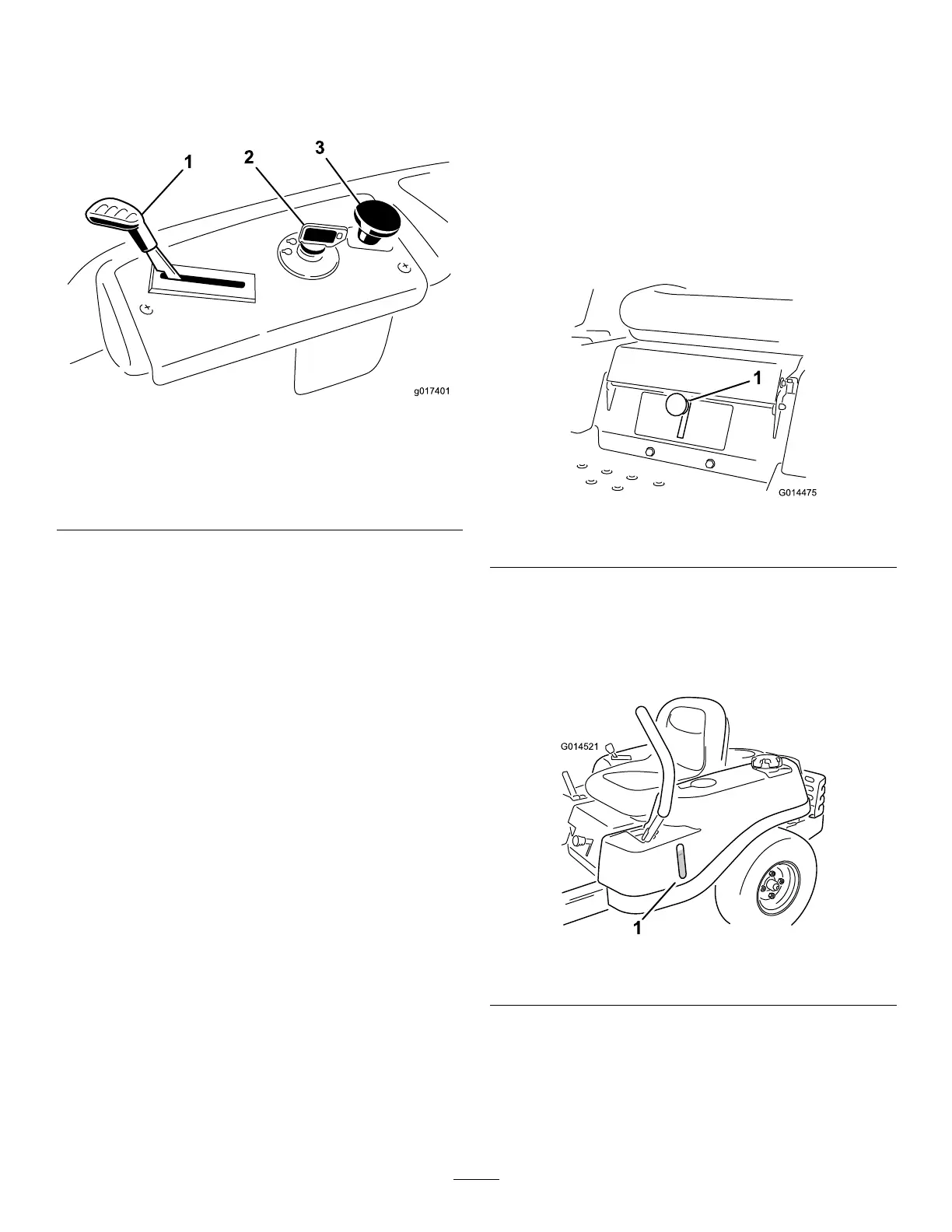

BecomefamiliarwithallofthecontrolsinFigure4,and
Figure5beforeyoustarttheengineandoperatethe
machine.
Figure5
ControlPanel
1.Throttle/Choke
3.Bladecontrolswitch
(powertake-off)
2.Ignitionswitch
IgnitionSwitch
Theignitionswitchhasthreepositions,Off,Runand
Start.ThekeywillturntoStartandmovebackto
Runuponrelease.TurningthekeytotheOffposition
willstoptheengine;however,alwaysremovethekey
whenleavingthemachinetopreventsomeonefrom
accidentallystartingtheengine(
Figure5).
Throttle/ChokeControl
Thethrottleandchokeiscombinedintoonecontrol
lever.Thethrottlecontrolstheenginespeedandithasa
continuousvariablesettingfromSlowtoFast.Engage
thechokebymovingtheleverpasttheFastsettinguntil
itstops(
Figure5).
BladeControlSwitch(PowerTake-Off)
Thebladecontrolswitch,representedbyapower
take-off(PTO)symbol,engagesanddisengagespower
tothemowerblades(
Figure5).
MotionControlLeversandPark
Position
Themotioncontrolleversarespeedsensitivecontrolsof
independentwheelmotors.Movingaleverforwardor
backwardturnsthewheelonthesamesideforwardorin
reverse;wheelspeedisproportionaltotheamountthe
leverismoved.Movethecontrolleversoutwardfrom
thecentertotheparkpositionandexitthemachine
(Figure16).Alwayspositionthemotioncontrollevers
intotheparkpositionwhenyoustopthemachineor
leaveitunattended.
SmartSpeed™ControlSystemLever
TheSmartSpeed™ControlSystemlever,locatedbelow
theoperatingposition,givestheoperatorachoiceto
drivethemachineattwospeedranges,highandlow
(
Figure6).
G014475
1
Figure6
1.Smartspeedlever
FuelWindow
Thefuelwindowlocatedonthelefthandsideofthe
machinecanbeusedtoverifythepresenceofgasoline
inthetank(
Figure7).
G014521
1
Figure7
1.Fuelpresencewindow
Height-of-CutLever
Theheightofcutleverallowstheoperatortolower
andraisethedeckfromtheseatedposition.Whenthe
leverismovedup,towardtheoperatorthedeckisraised
fromthegroundandwhenmoveddown,awayfromthe
12
