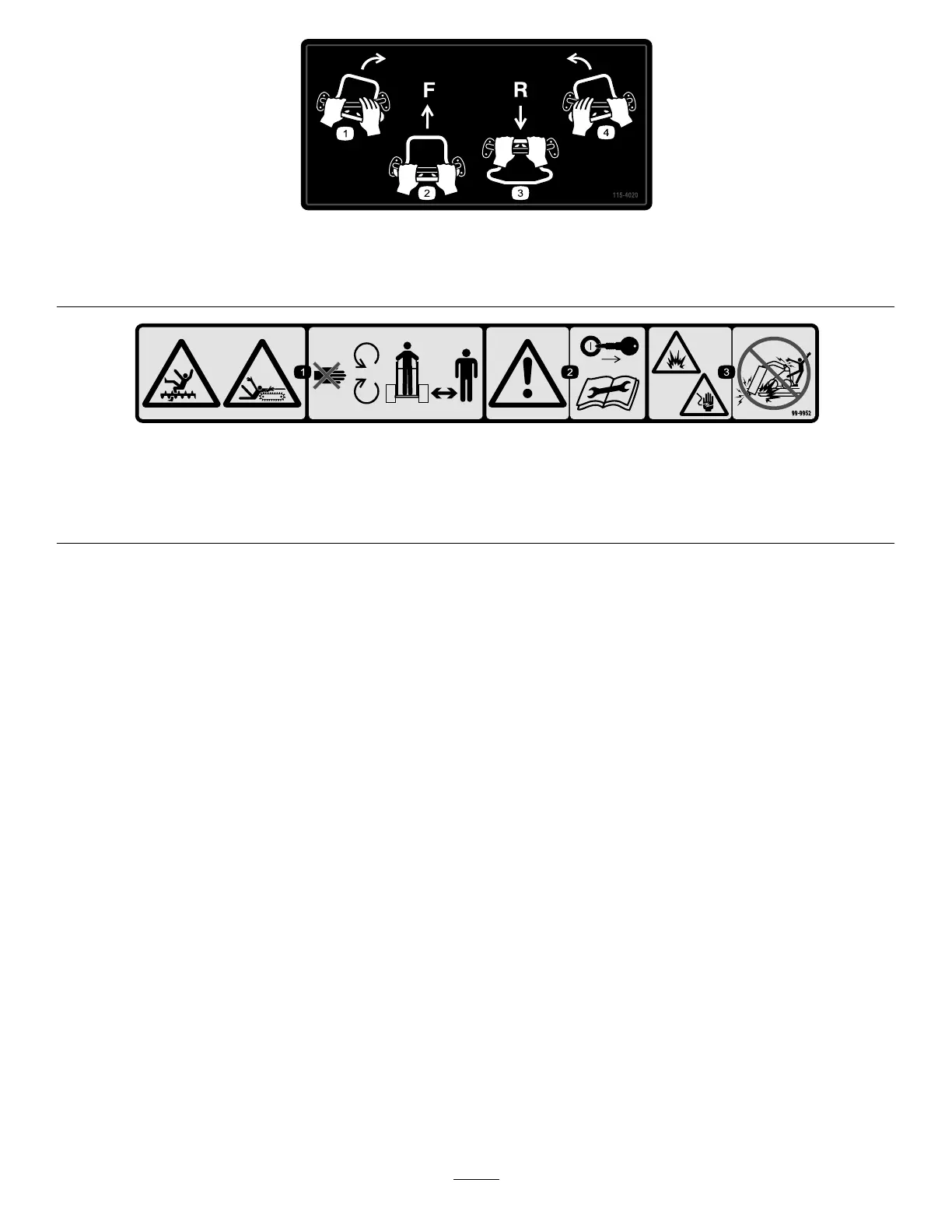

decal1
15-4020
1
15-4020
1.
Turn
right
3.
Reverse
2.
Forward
4.
Turn
left
decal99-9952
99-9952
1.
Cutting
hazard,
chain
and
auger—stay
away
from
moving
parts
and
keep
bystanders
away
from
the
machine.
2.
Warning—shut
off
the
engine
and
remove
the
key
before
preforming
and
maintenance
or
repairs.
3.
Explosion
and/or
electric
shock
hazard—do
not
dig
in
areas
with
buried
gas
or
power
lines.
8
7
9
Table of Contents
Default Chapter
2
Figure 1
2
Table of Contents
3
Safety
4
Safe Operating Practices
4
Safety and Instructional Decals
6
1 Installing the Boom and Chain
11
Setup
11
2 Checking the Fluid Levels
12
Product Overview
12
Controls
12
Key Switch
13
Specifications
15
Attachments/Accessories
15
Operation
16
Adding Fuel
16
Performing Daily Maintenance
17
Starting the Engine
17
Driving the Machine
18
Shutting off the Engine
18
Digging a Trench
18
Moving a Non-Functioning Machine
19
Securing the Machine for Transport
19
Lifting the Machine
19
Operating Tips
20
Maintenance
21
Recommended Maintenance Schedule(S)
21
Pre-Maintenance Procedures
22
Removing the Cover Plate
22
Removing the Bottom Shield
23
Lubrication
23
Greasing the Machine
23
Greasing the Trencher Housing
24
Engine Maintenance
25
Servicing the Air Cleaner
25
Servicing the Engine Oil
27
Servicing the Spark Plug
29
Fuel System Maintenance
30
Draining the Fuel Tank
30
Replacing the Fuel Filter
31
Electrical System Maintenance
31
Servicing the Battery
31
Replacing the Fuses (Models 22973 and 22974)
34
Drive System Maintenance
34
Servicing the Tracks
34
Belt Maintenance
37
Replacing the Pump-Drive Belt
37
Controls System Maintenance
37
Adjusting the Traction-Control Alignment
37
Hydraulic System Maintenance
39
Hydraulic Fluid Specifications
39
Checking the Hydraulic-Fluid Level
40
Replacing the Hydraulic Filter
40
Changing the Hydraulic Fluid
41
Trencher Maintenance
42
Replacing the Digging Teeth
42
Checking and Adjusting the Digging Chain and Boom
42
Replacing the Drive Sprocket
43
Cleaning
44
Removing Debris from the Machine
44
Storage
44
Troubleshooting
46
Schematics
48
3 Charging the Battery (Electric-Start Models Only)
12
