Toro TRX-250 - Trencher Maintenance; Replacing the Digging Teeth; Checking and Adjusting the Digging Chain and Boom

TrencherMaintenance
ReplacingtheDigging
Teeth
ServiceInterval:Beforeeachuseordaily—Check
theconditionofthediggingteeth
andreplaceanythatarewornor
damaged.
Duetothehighamountofwearplacedonthedigging
teeth,youwillneedtoreplacethemperiodically.
Toreplaceasingletooth,removetheboltssecuring
thetoothtoremoveit,theninstallanewtoothinthe
sameposition.Torquetheboltssecuringtheteethto
37to45N∙m(27to33ft-lb).
CheckingandAdjustingthe
DiggingChainandBoom
ServiceInterval:Every25hours
•Checkeachlinkinthechainforexcessivewear,
suchaslinksthatcannolongerholdteeth.
•Inspectthebottomoftheboomforwear.
•Withthetrencherboomparalleltotheground,
ensurethatthereare3.8to6.3cm(1-1/2to2-1/2
inches)betweenthebottomoftheboomandthe
topofthebottomchainspan.Ifnot,adjustthe
chaintension.
Important:Donotovertightenthechain.
Excessivechaintensionmaydamagedrive
components.
Toreplaceawornchain,iporreplaceaworn
boom,oradjustthechaintension,usethefollowing
procedure:
1.Parkthemachineonalevelsurface,engagethe
parkingbrake,andlowertheboom.
2.Shutofftheengineandremovethekey.
3.Ifyouarereplacingthechainorippingor
replacingtheboom,completethefollowing:
A.Removethe2boltsandnutssecuringthe
boomtothetrencherarm(Figure62).

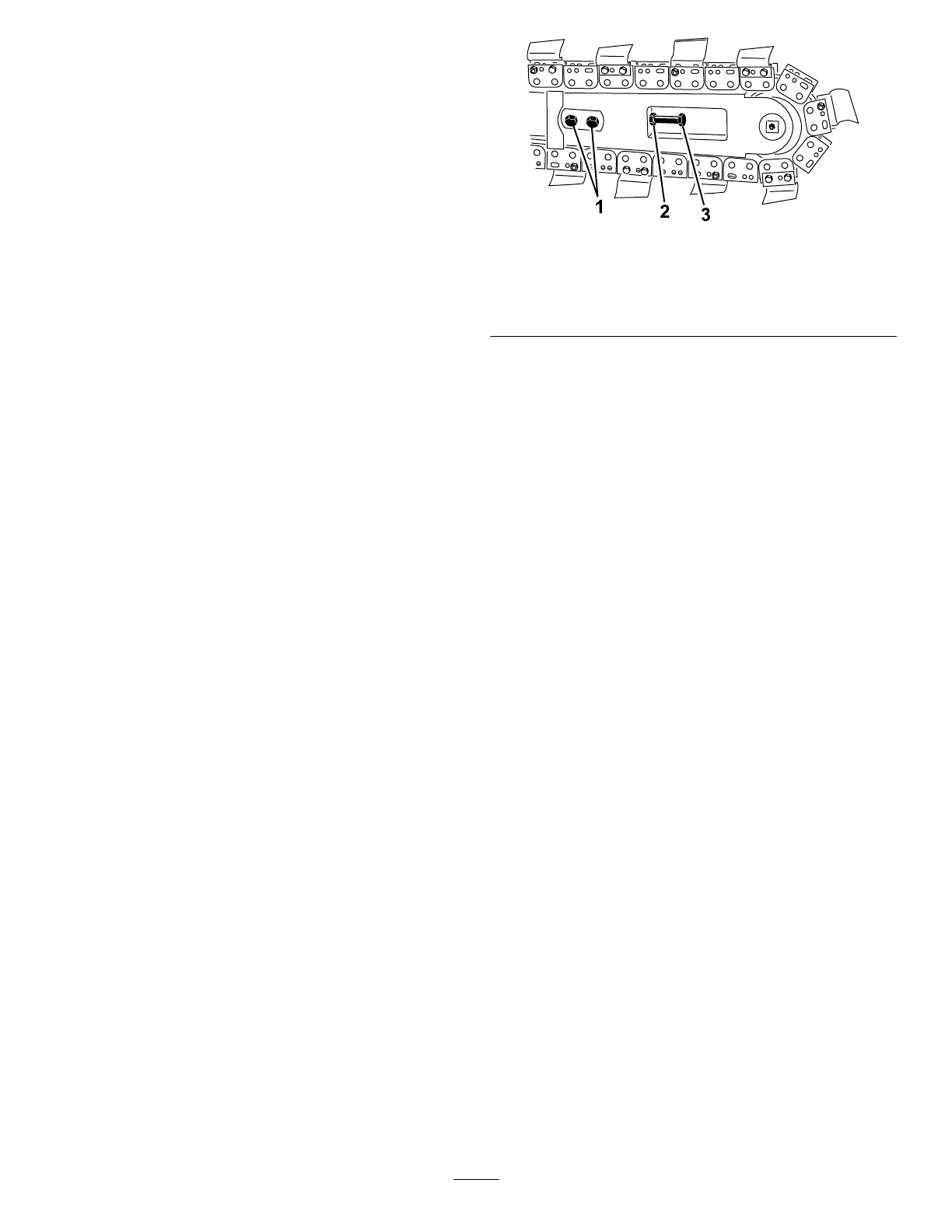

g287009
Figure62
1.Bolts
2.Jamnut
3.Adjustingbolt
B.Loosenthejamnutontheadjustingboltin
theboom.
C.Loosentheadjustingboltuntilyoucan
removethechainfromtheboom.
D.Removethechainfromthedrivesprocket.
E.Ifthechainneedsreplacing,removethe
boltandnutsecuringthespoilsaugerand
removetheaugerandchain.
F.Removetheboom,ipitoversothebottom
becomesthetop(orifyouhavealready
ippeditonce,replaceit),andinstallthe
boomagain.
G.Replacethenuts,bolts,andwashersto
securetheboom.
H.Ifyouareinstallinganewchain,connect
thelinksbypressingorhammeringthe
clevispinsuppliedwiththechainthrough
thelinks,thensecuretheclevispinwiththe
cotterpinsuppliedwiththechain.
Important:Toavoidbendingthechain
links,placeblocksunderandbetween
thelinkswhenhammeringtheclevispin
through.
I.Installthechainoverthedrivesprocketand
frontroller.
J.Ifyouremovedthespoilsauger,install
itusingtheboltandnutyouremoved
previously.T orquetheboltandnutto102
N∙m(75ft-lb).
K.Skiptostep6tocompletetheadjustment.
4.Loosenthe2boltsandnutssecuringtheboom
tothetrencherarm
5.Loosenthejamnutsecuringtheadjustmentbolt.
6.Turntheadjustmentboltinoroutasneededto
achievethedesiredtension.
7.Tightenthejamnut.
