Workman HD SeriesPage 6 -- 46Drive Train
20.Install reverse shaft (item 1) into transaxle case. Ro-
tate main shaft and reverse shaft gears to mesh gears
when installing.
21.On 4WD vehicles, install bearing to gear case (see
item 2 of Fig. 91) and center plate. Install front drive shaft
and 41T gear to the gear case.
22.Install center plate:
A. Insert two (2) dowel pins into transaxle case.
B. Apply silicone sealant onto mating surface of
center plate.
C. Position center plate to transaxle.
D. Install and tighten fifteen (15) flange head screws
to a torque from 18.5 to 22 ft--lb (24.5 to 29.5 N--m).
E. Apply multi--purpose grease onto lips of oil seal,
then insert oil seal flush with face of housing.
F. Apply moly disulfide grease to spline of main
shaft for clutch disk hub.
1
2

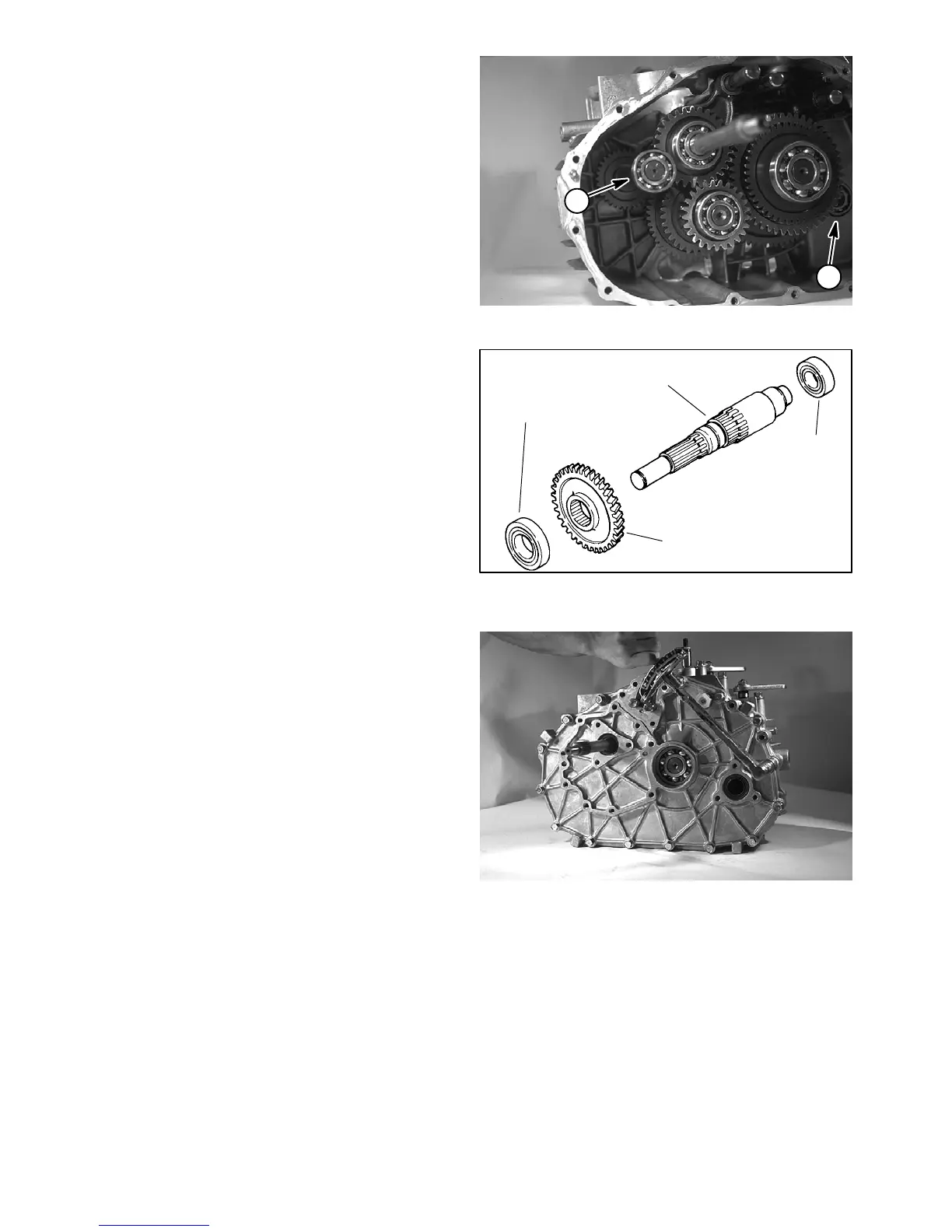

Figure 91
41T GEAR
FRONT DRIVE
SHAFT
BEARING
(GEAR CASE)
BEARING
(CENTER PLATE)
Figure 92
Figure 93
