NOTE: The thickest shim of the s him set (item 2) s hould
be positioned against the snap ring (Fig. 94).
23.Insert tabbed shim (item 4) against the bearing. In-
sert shim set (item 2) against the tabbed shim. Use thick-
est shims in set possible, that will permit installation of
the snap ring. (Fig. 94 and 95).
24.Install s nap ring into the groove of the bearing hous-
ing (Fig. 95 and 96).
1
3
2
4

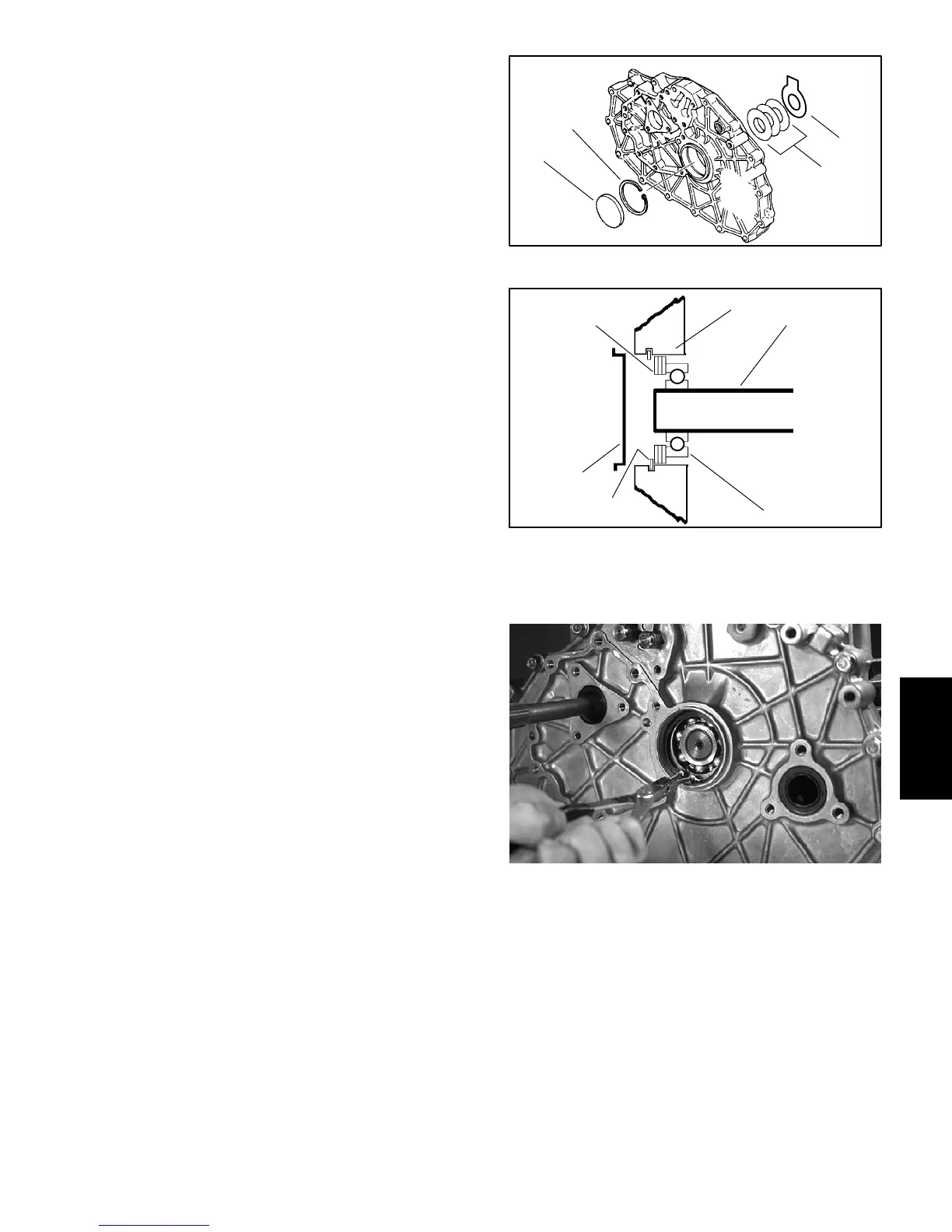

Figure 94
1. Countershaft
2. Bearing
3. Shims
4. Snap ring
5. Center plate
6. Sealing cap
Figure 95
1
5
3
6
4
2
Figure 96
Drive Train
