Workman HD Series Page 6 -- 49 Drive Train

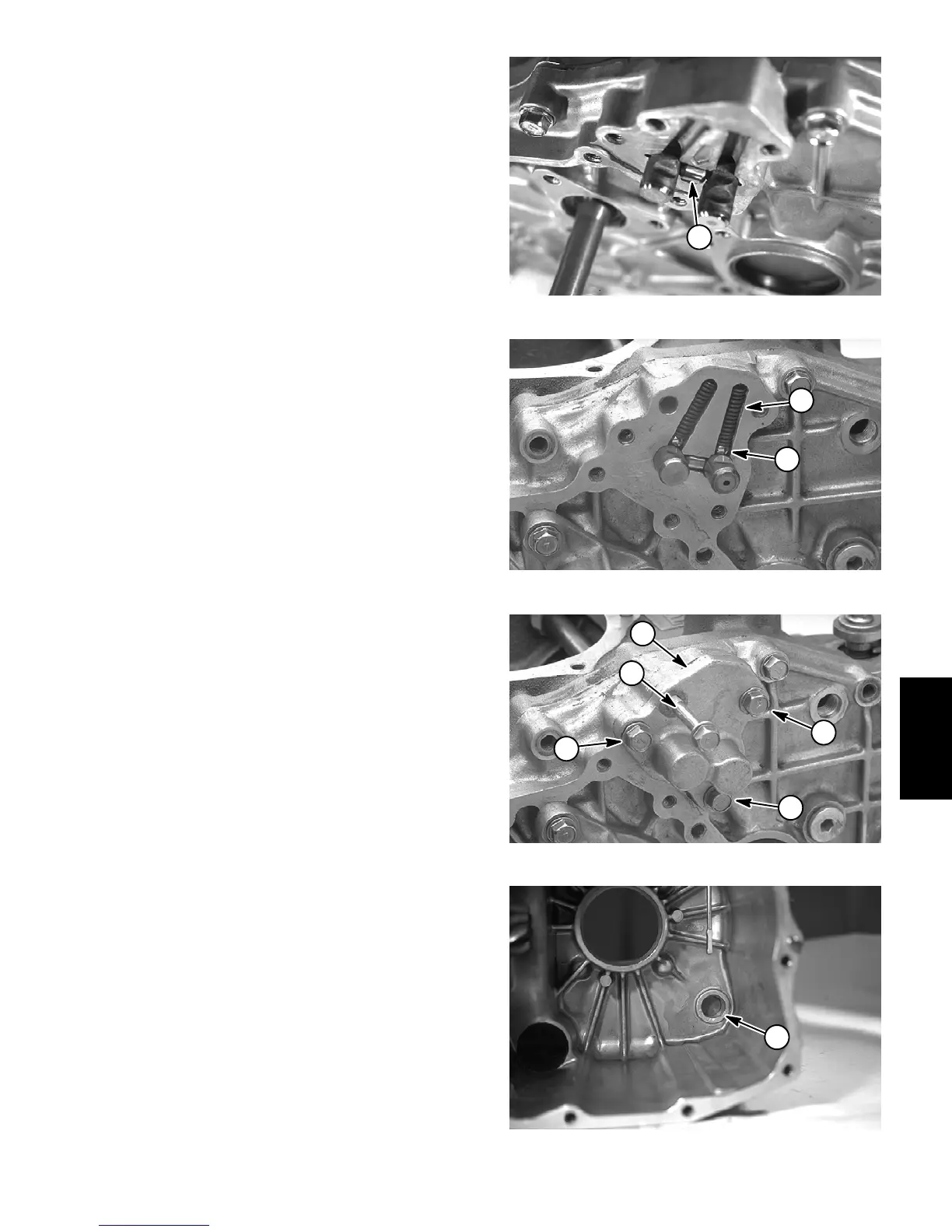

27.Install fork shaft case:
A. Insert spindle (item 1) between fork shafts.
B. Insert two (2) steel balls (item 2) and two (2)
springs (item 1) into the grooves.
C. Apply silicone sealant to mating surface of fork
shaft case (item 3).
D. Install fork s haft case (item 3). Install and tighten
flange head screws (items 2 and 1) to a torque from
18.5 to 22 ft--lb (24.5 to 29.5 N--m).
E. Check operation of shifters and detent.
28.Insert a washer (item 1) into housing of transaxle
case. Apply moly disulfide grease to washer before
installing.
1
Figure 99
1
2
Figure 100
1
3
1
1
2
Figure 101
1
Figure 102
Drive Train
