29.Install differential gear assembly (item 1) together
with fork shaft (item 2) onto transaxle case.
30.Install side cover:
A. Insert two (2) dowel pins onto transaxle case.
B. Apply silicone sealant onto mating surface of side
cover.
C. Install side cover and secure with ten (10) flange
head screws. Torque screws from 18.5to22ft--lb
(24.5 to 29.5 N--m).
31.Install R.H. axle shaft assembly:
A. Apply silicone sealant onto mating surface of seal
cover.
B. Install axle shaft assembly (item 2) and secure
with four (4) flange head screws (item 1). Torque
screws from 18.5 to 22 ft--lb (24.5 to 29.5 N--m).

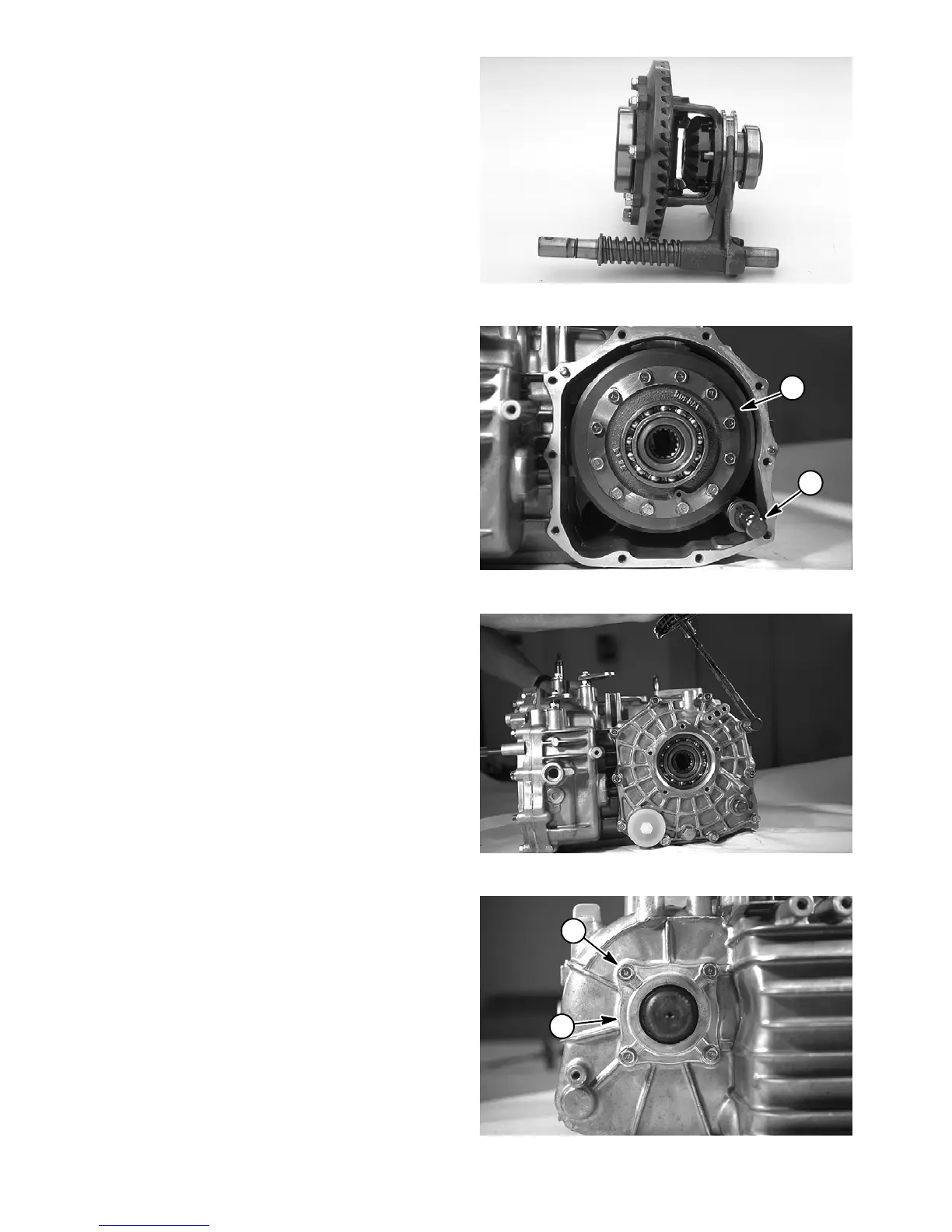

Figure 103
1
2
Figure 104
Figure 105
1
2
Figure 106
