Workman HD SeriesPage 6 -- 52Drive Train

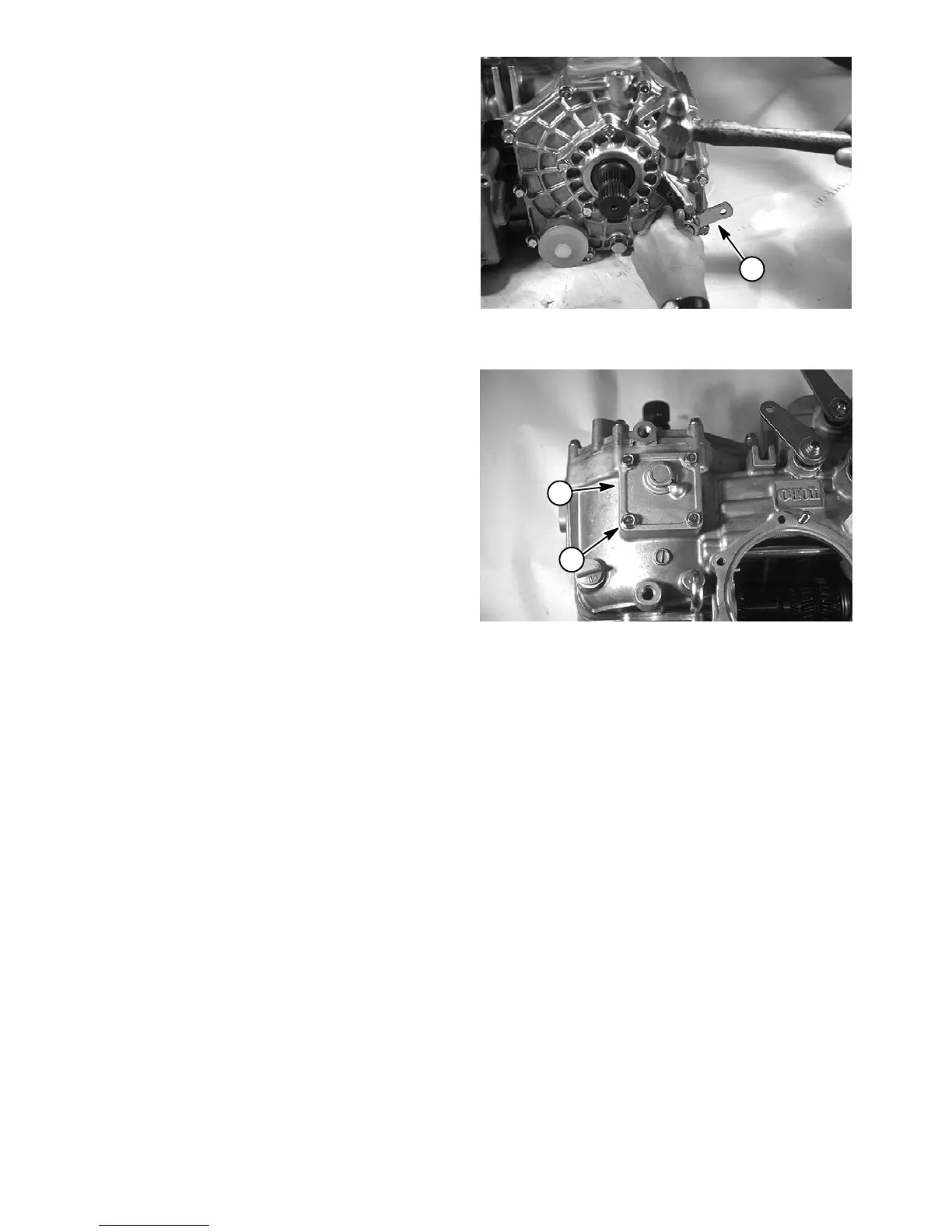

34.Install differential lock arm (item 1) onto fork shaft. In-
sert lock pin into fork shaft and arm. Pay attention to
direction of slit in lock pin.
35.Apply silicone sealant to mating surface o f upper
cover (item 2). Pay attention to direction of cover and
install. Secure with four (4) flange head screws (item 1).
Torque screws from 18.5 to 22 ft--lb (24.5 to 29.5 N--m).
1
Figure 110
1
2
Figure 111
