Toro Workman MDX User Manual

Adjusting the High/Low Idle
1. Lift the cargo bed and secure it open with the
prop rod.
2. With the machine of f, fully press the accelerator
pedal and measure the gap between the leading
edge of the governor bellcrank and the bracket
tab.
This gap should be between 0.8 to 2.0 mm (.03
to .08 inches).
3. At the throttle cable, loosen the forward jam nut
and tighten the rear jam nut to increase the low
idle ( Figure 35 ).
g312686

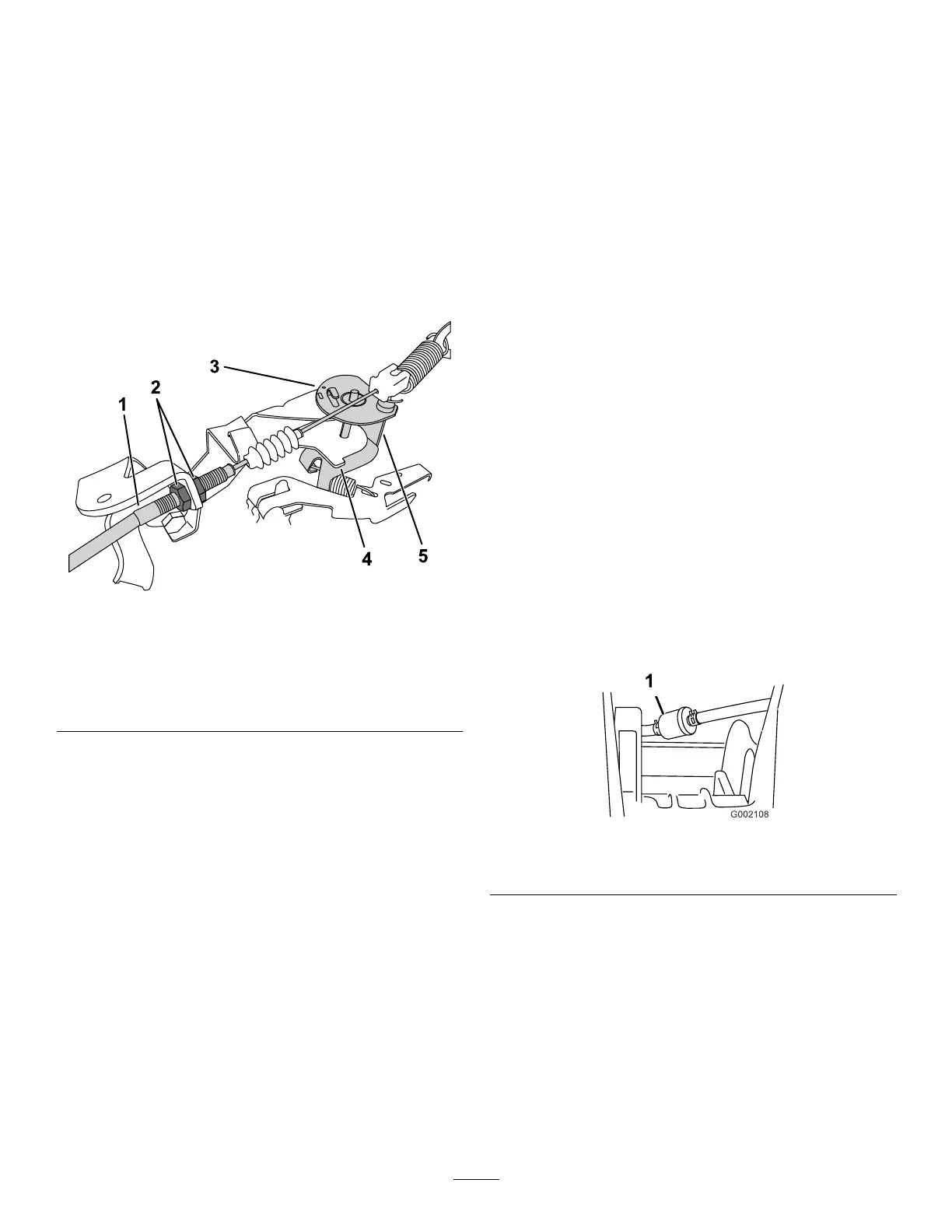

Figure 35
Bellcrank shown without accelerator pedal pressed
1. Throttle cable 4. Bracket tab
2. Jam nuts 5. Leading edge
3. Bellcrank
4. T est the high idle with a tachometer:
A. T urn the key switch to the O N position.
B. Ensure that the shift lever is in the N EUTRAL
position.
C. Fully press the accelerator pedal and
measure the engine speed with a
tachometer; the engine speed should be
between 3,550 to 3,650 rpm. If it is not, shut
of f the engine and adjust the cable jam nuts.
Important: Do not lower the high idle.
T est using a tachometer to ensure that
the high idle is between 3,550 to 3,650
rpm.
5. Push on the prop rod and lower the cargo bed.
Fuel System
Maintenance
Inspecting Fuel Lines and
Connections
Service Interval : Every 400 hours/Y early (whichever
comes rst)
Inspect the fuel lines, ttings, and clamps for signs of
leaking, deterioration, damage, or loose connections.
Note: Repair any damaged or leaking fuel system
component before using the machine.
Replacing the Fuel Filter
Service Interval : Every 800 hours/Y early (whichever
comes rst)
1. Raise the bed and support it with the prop rod.
2. Rotate the key switch to the O FF position and
remove the key .
3. Disconnect the battery; refer to Disconnecting
the Battery ( page 42 ) .
4. Place a drain pan under the fuel lter .
5. Remove the clamps securing the fuel lter to the
fuel lines ( Figure 36 ).
g002108
Figure 36
1. Fuel lter
6. Remove the old fuel lter from the fuel lines.
Note: Drain the old lter and discard it at a
certied recycling center .
7. Install the replacement lter to the fuel lines so
that the arrow points toward the carburetor .
8. Secure the lter to the lines with the clamps the
you removed in step 5 .
9. Connect the battery and lower the cargo bed;
refer to Connecting the Battery ( page 43 ) .
37
