Belt Maintenance
Servicing the Drive Belt
Checking the Drive Belt
Service Interval : After the rst 8 hours
Every 200 hours
1. Park the machine on a level surface, engage the
parking brake, shut of f the engine, and remove
the key .
2. Raise the cargo bed and secure it with the prop
rod.
3. Shift the transmission to the N EUTRAL position.
4. Rotate and inspect the belt ( Figure 66 ) for signs
of excessive wear or damage.
Note: Replace the belt if it is excessively worn
or damaged; refer to Replacing the Drive Belt
( page 53 ) .

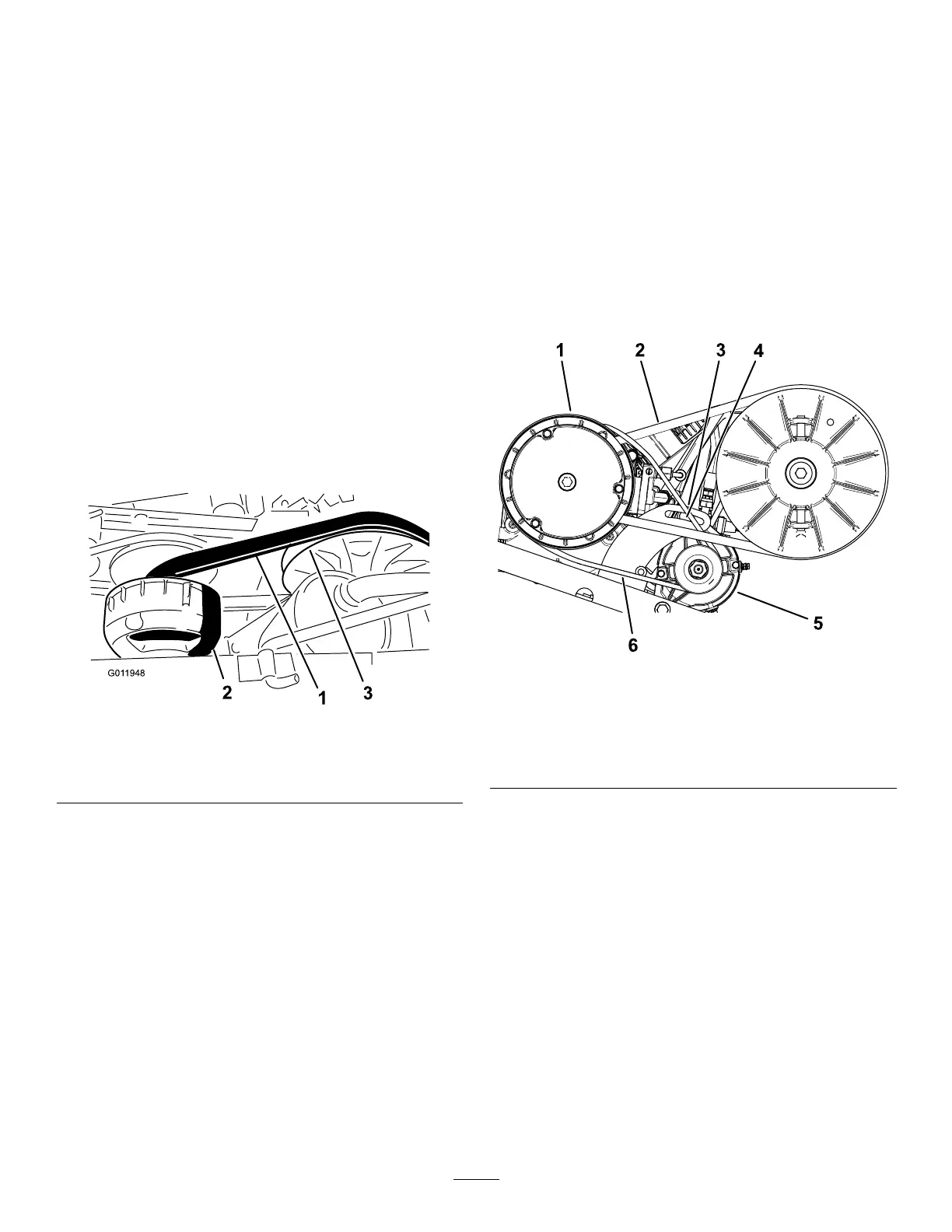

g01 1948
Figure 66
1. Drive belt
3. Secondary clutch
2. Primary clutch
5. Lower the cargo bed.
Replacing the Drive Belt
1. Raise the cargo bed.
2. Shift the transmission into N EUTRAL , engage the
parking brake, rotate the key switch to the O FF
position, and remove the key .
3. Rotate and route the belt over the secondary
clutch ( Figure 66 ).
4. Remove the belt from the primary clutch ( Figure
66 ).
Note: Discard the old belt.
5. Align the new belt over the primary clutch
( Figure 66 ).
6. Rotate and route the belt over the secondary
clutch ( Figure 66 ).
7. Lower the cargo bed.
Adjusting the
Starter-Generator Belt
Service Interval : After the rst 8 hours
Every 200 hours
1. Raise the cargo bed.
2. Loosen the pivot nut for the starter generator
( Figure 67 ).
g312687
Figure 67
1. Primary drive clutch
housing
4. Pivot nut
2. Drive belt
5. Starter generator
3. Generator-pivot bracket 6. Starter-generator belt
3. Align a pry bar between the engine mount and
starter .
4. Apply downward pressure to the pry bar to rotate
the starter down in the slot until the belt tension
only allows 6 mm (1/4 inch) belt deection with
44 N∙m (10 ft-lb) of force ( Figure 67 ).
5. T ighten the pivot nut by hand, and remove the
pry bar ( Figure 67 ).
6. T orque the pivot nut to 88 to 1 15 N∙m (65 to 85
ft-lb).
7. Lower the cargo bed.
53
