Mid-Mount Z Service Manual 5 - 13
CHASSIS

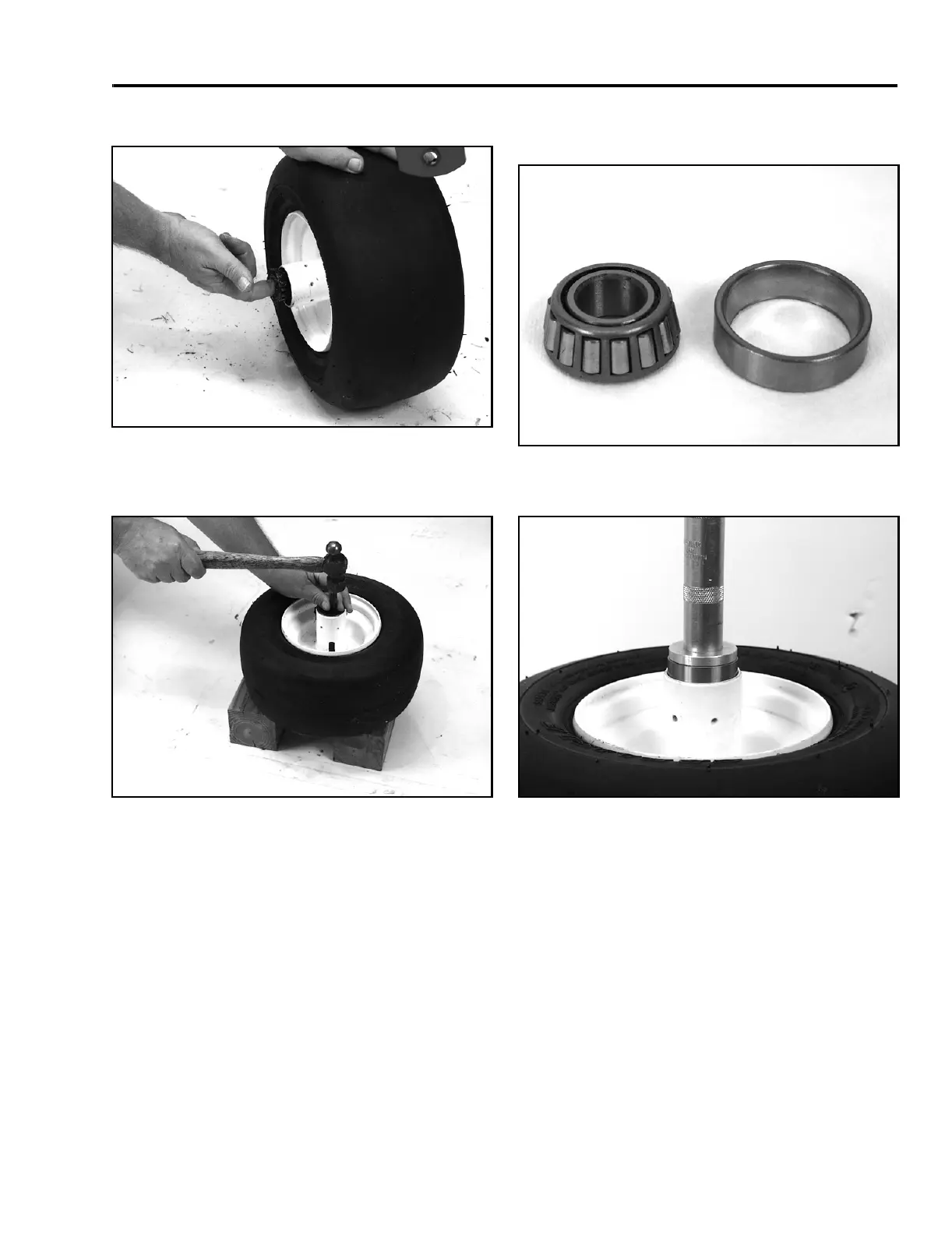

6. Remove the wheel bearing (Figure 101).
Figure 101
1030-020
7. Drive the bearing race out from the opposite side
of the wheel using a long drift (Figure 102).
Figure 102
1030-018
8. Clean the bearing and bearing race and inspect
for signs of pitting or other damage (Figure 103).
Figure 103
1030-017
9. Press a new race into the wheel hub (Figure 104).
Figure 104
1030-019
