Selection of Motor Data screen
11
Selection of Battery Data screen
12
Selection of Charger Data screen
13
Selection of Settings
14
Selection of Error Display

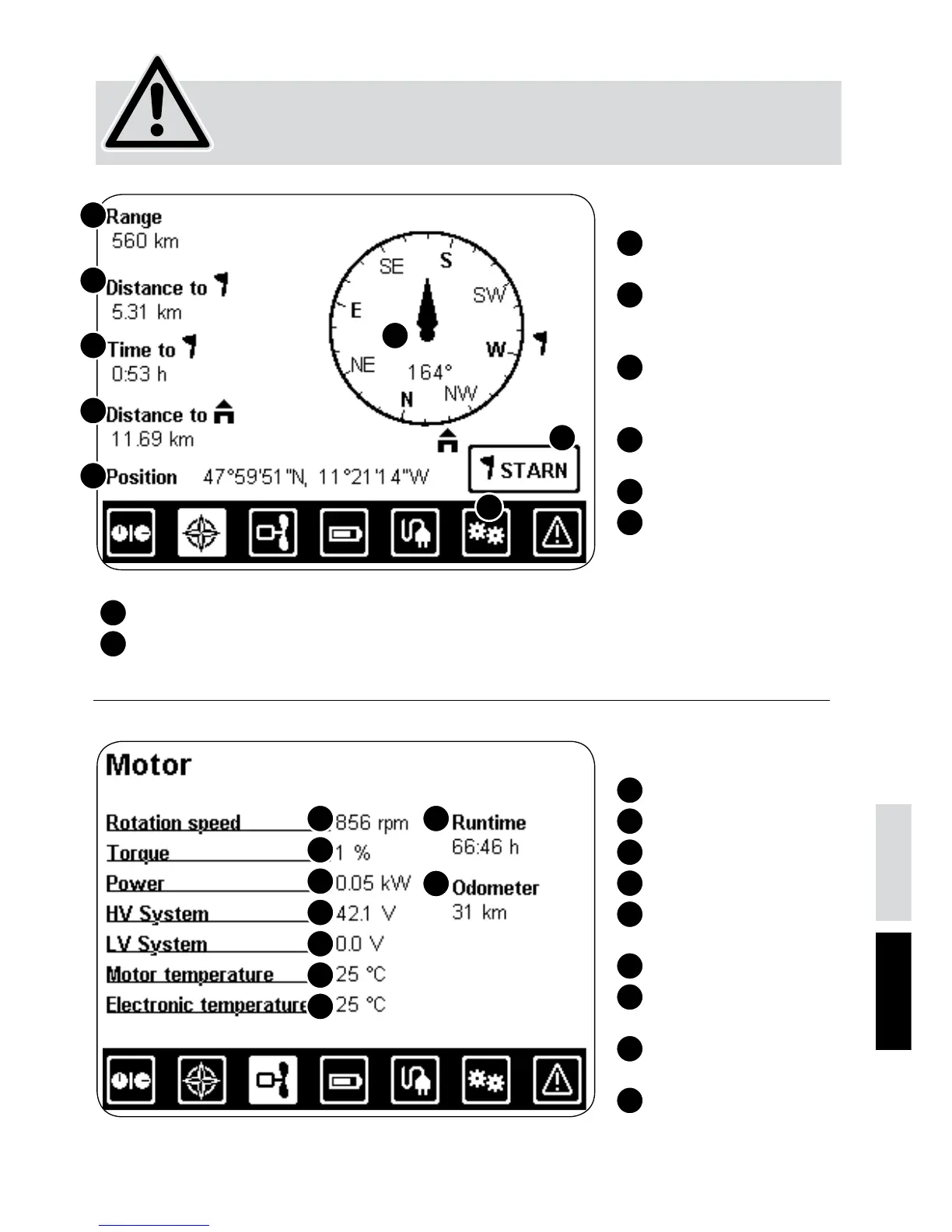

Navigation screen
1
Remaining range at
current speed
2
Distance to selected
waypoint (linear
distance)
3
Remaining time until
arrival at selected way-
point at current speed
4
Distance to “Home“
(linear distance)
5
Current position
6
Compass with directio-
nal indication “Home“
and selected waypoint
Motor data
1
Rotation speed
2
Torque
3
Power
4
Motor voltage
5
Low voltage system
voltage
6
Motor temperature
7
Motor electronics
temperature
8
System total
operating hours
9
Total distance covered
since commissioning
7
Choice of waypoint and display of chosen waypoints
8
MenuSettings:Selectandsavesettingsfor“Home“andforwaypointshere.
1
1
2
2
3
3
4
5
6
4
5
7
6
8
7
8
9
Please note that range indications may not be precise and may differ
due to changing wind and current conditions.
