Power trim function (around 0° - 15°, slow tilt motion):
Canbeoperatedwhendrivingtheboat.Allowsnetuningbetweentheboat‘shulland
thepropeller‘sangleinthewater.Allowsoptimizationofdrivingbehaviourand
efficiency.
Power tilt function (around 15° - 80°, fast tilt motion):
To be used in stationary position of the boat to tilt the outboard out of the water. Protects
underwater components of the motor against additional wear, aging, algae growth, etc.
4.4 On-board computer and touchscreen display
• Beforetiltingthemotordown:Makesurethatthetiltlockonthe
transom bracket does not restrict the shaft from being tilted down.
• Tiltingupofthemotordrainscoolingcircuitoftheoutboard.
Please always put the motor into tilted position to ensure entire drai-
nage.Thisalsopreventswearandhelpstoextendservicelifeofthe
outboard system!

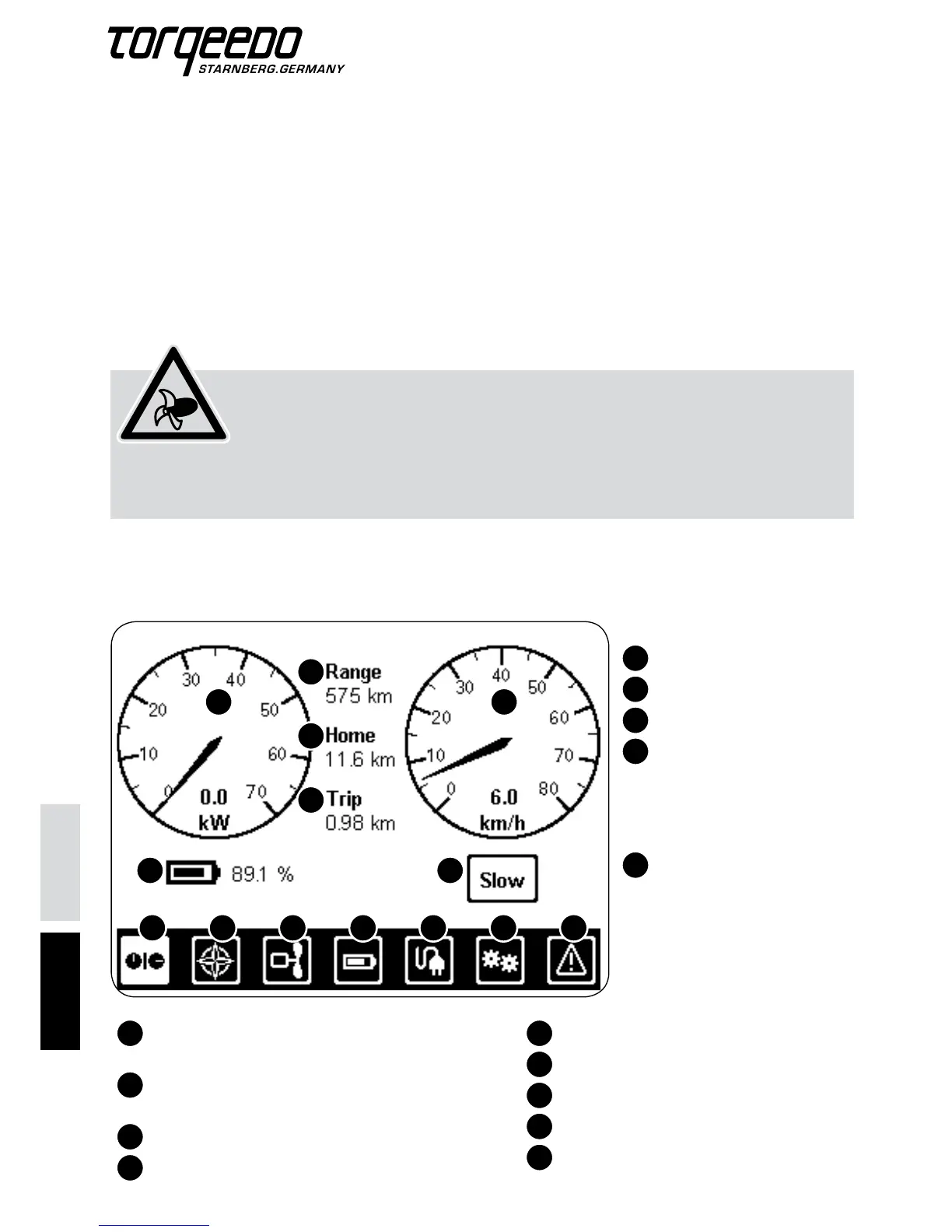

Main screen
1
Input power
2
Speed over ground
3
Battery charge status
4
Power limitation, desi-
gned for slow moving
within limited areas like
harbours (deactivation
only in neutral position)
5
Remaining range at
current speed (if no
GPS signal is available,
remaining range is not
displayed)
6
Distance to “Home“ (if “Home“ has
been stored under “Settings“)
7
Current distance covered (is set to
zero when motor is switched off)
8
Selection of main screen (selected)
9
Selection of Navigation screen
10
Selection of Motor Data screen
11
Selection of Battery Data screen
12
Selection of Charger Data screen
13
Selection of Settings
14
Selection of Error Display
1 2
3
8 9
10 11 12 13 14
4
5
6
7
