ESPAÑOL ( ES )
9
●

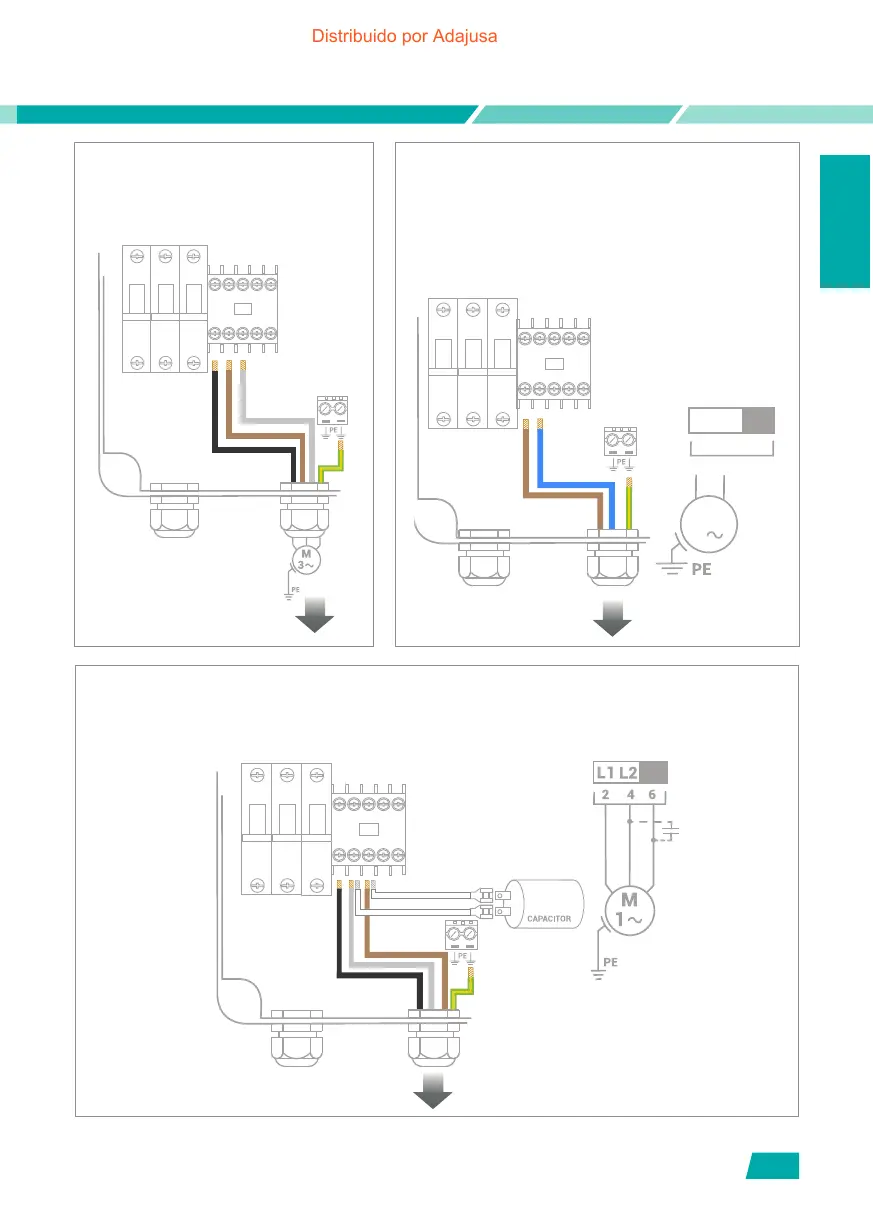

Salida a bomba monofásica con condensador de arranque separado.
L N C
2
4 6
NL C
X X
2
4 6
C
●
Salida a bomba trifásica.
2
4 6
VU W X X
2
4
6
L1
L2
L3
●
Salida a bomba monofásica con con-
densador de arranque integrado.
2
4 6
NL
X X X
M
1
L N
2 4 6
N
L
V1N
V1N
V1N
9. CONEXIONADO DE MOTOR V1N
