User’s Manual 2-6
The Grand Tour
Underside

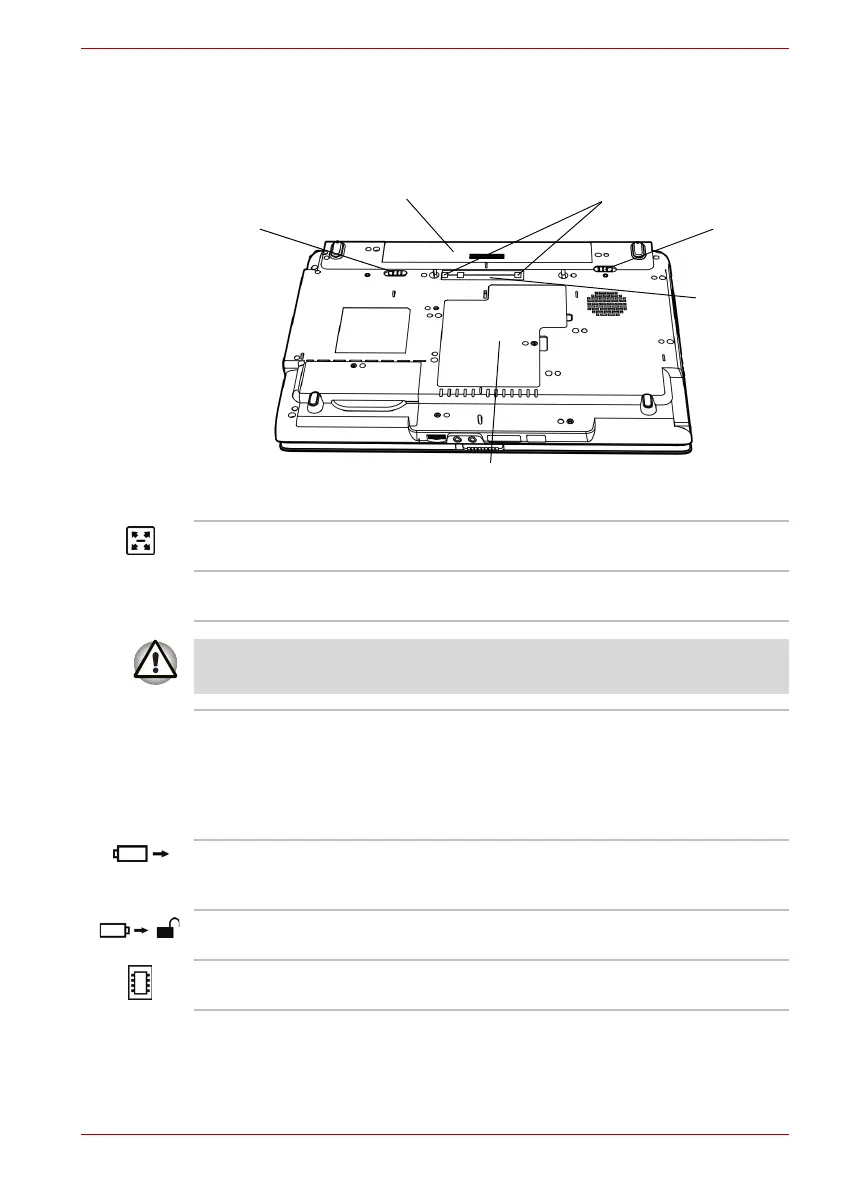

The figure below shows the underside of the computer. Make sure the
display is closed before turning over your computer.
The underside of the computer
Memory module cover
Battery Pack Lock
Battery pack
Battery Release Latch
Docking Hole
Docking Port
Docking holes These holes ensure a proper connection between the
computer and an optional Port Replicator III Plus.
Docking port Use this port to connect an optional Port Replicator III
Plus.
Keep foreign objects out of the docking port. A pin or similar object can
damage the computer’s circuitry.
Battery pack The battery pack powers the computer when the
AC adaptor is not connected. The Batteries section in
Chapter 6, Power and Power-Up Modes, describes how
to access the battery pack. Additional battery packs can
be purchased from your TOSHIBA dealer to extend the
computer’s battery operating time.
Battery pack
cover latch
Slide this latch to release the battery pack.
This latch moves only when the computer is upside
down.
Battery lock Slide the battery pack lock to unlocked position to free
the battery latch.
Memory
module cover
This cover protects two memory module sockets. One or
two modules are preinstalled.
