INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33005
1. Linerless Label Kit: B-EP902-LL-QM-R/B-EP904-LL-QM-R
1- 2
• Required Tools
● Slotted jewellers screw driver
● Phillips head jewellers screw driver (Only for installing the B-EP904-LL-QM-R)
• Installation Procedure
1. Turn the printer power off and remove the battery pack from the printer.
2. Press the top cover open button and fully open the top cover.

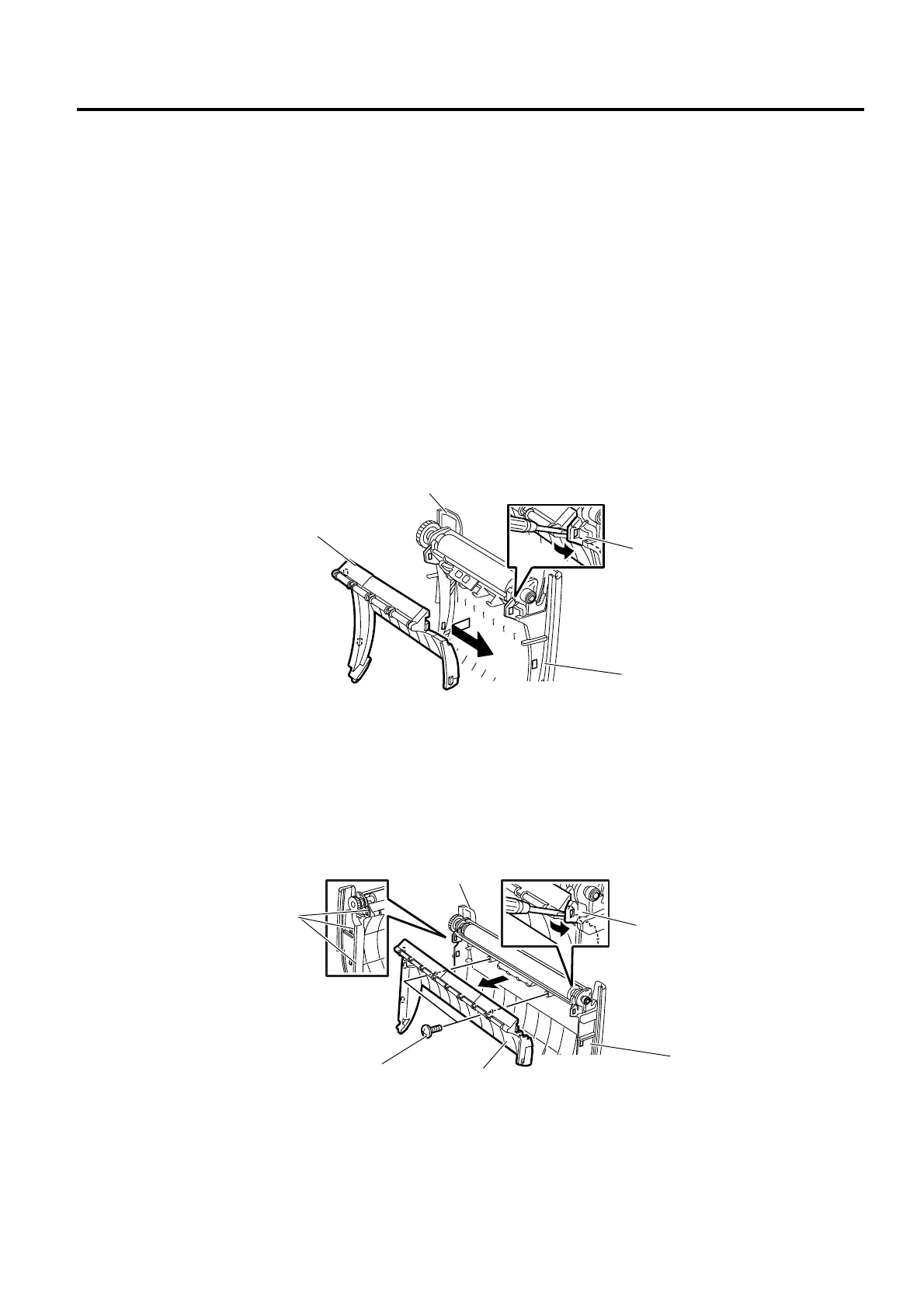

3. Remove the inner top cover using the following procedure.
(For the B-EP2DL Series)
Release the two hooks on the right side of the inner cover with a slotted jewellers screw driver and
remove the inner cover from the top cover.
If the inner cover cannot be removed easily, release the left side hooks, also.
(For the B-EP4DL Series)
(1) Remove the two screws securing the inner cover with a Phillips head jewellers screw driver.
(2) Release the two hooks on the right side of the inner cover with a slotted jewellers screw driver.
(3) Release the three hooks on the left side of the inner cover with a slotted jewellers screw driver,
and remove the inner cover from the top cover.
NOTE: Do not push the hooks too hard, as doing so may break the hooks.
Top Cover
Hook
Hook
Inner Cover
Top Cover
Hook
Hook
Inner Cover
M-2 x 5 Screw
Hook
To Next Page
