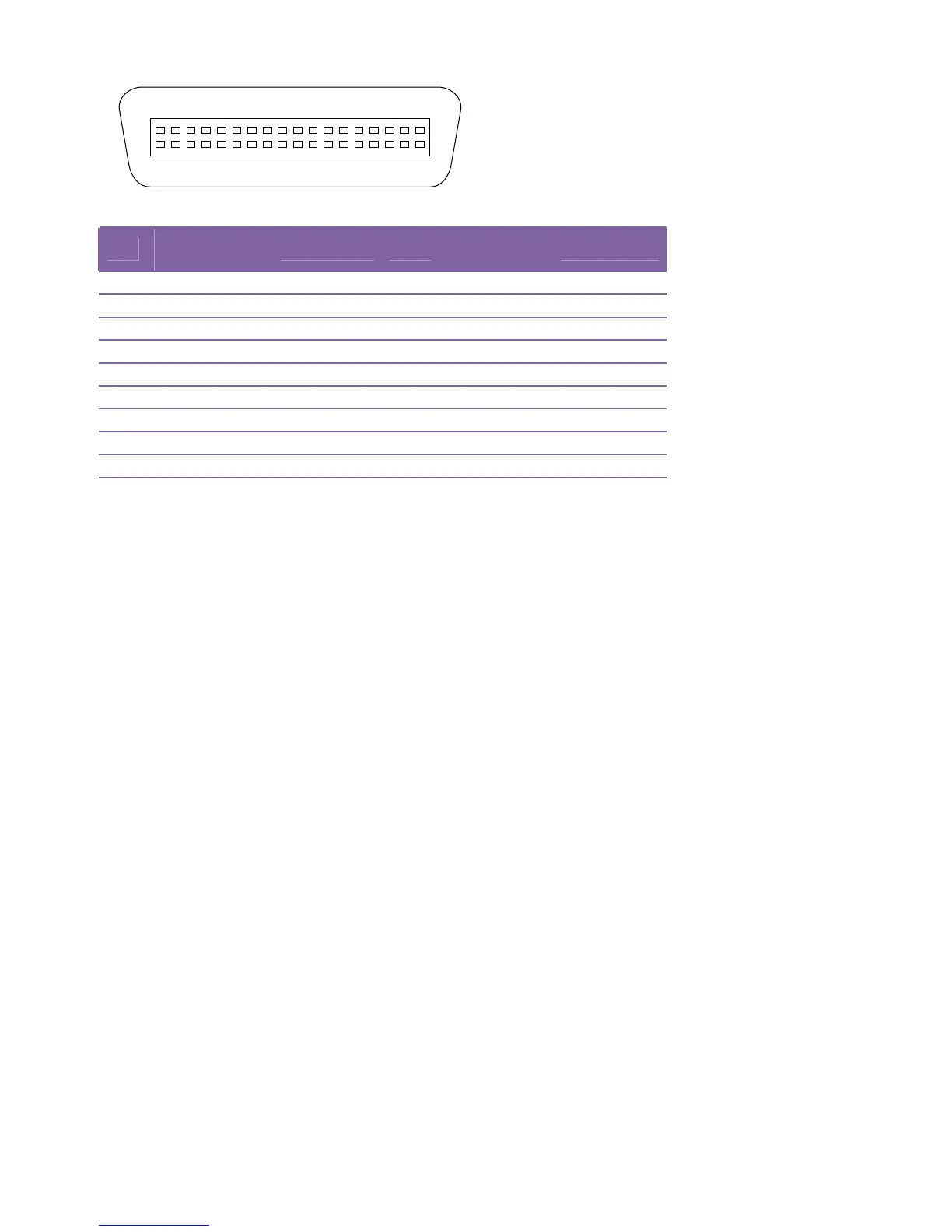

B‐FV700‐BLTH‐QM‐R
‐47‐
118
19
36
Pin
Signal
Direction
Signal Pin
Signal
Direction
Signal
1 ToPrinter /STROBE 11 FromPrinter BUSY
2 ToPrinter Data1 12 FromPrinter PE
3 ToPrinter Data2 13 FromPrinter +5V
4 ToPrinter Data3 14‐15 ‐ NC
5 ToPrinter Data4 16‐17 Ground GND
6 ToPrinter Data5 18 ‐ NC
7 ToPrinter Data6 19‐30 Ground GND
8 ToPrinter Data7 31 ‐ NC
9 ToPrinter Data8 32 FromPrinter /FAULT
10 FromPrinter /ACK 33‐36 ‐ NC
