INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT
EO15-33002
1. Cutter Module: B-SX208-QM-R
1- 1
INSTALLATION PROCEDURE FOR OPTIONAL
EQUIPMENT
1. Cutter Module: B-SX208-QM-R
B-SX208-QM-R is an optional cutter module for the B-SX6T/SX8T Series.

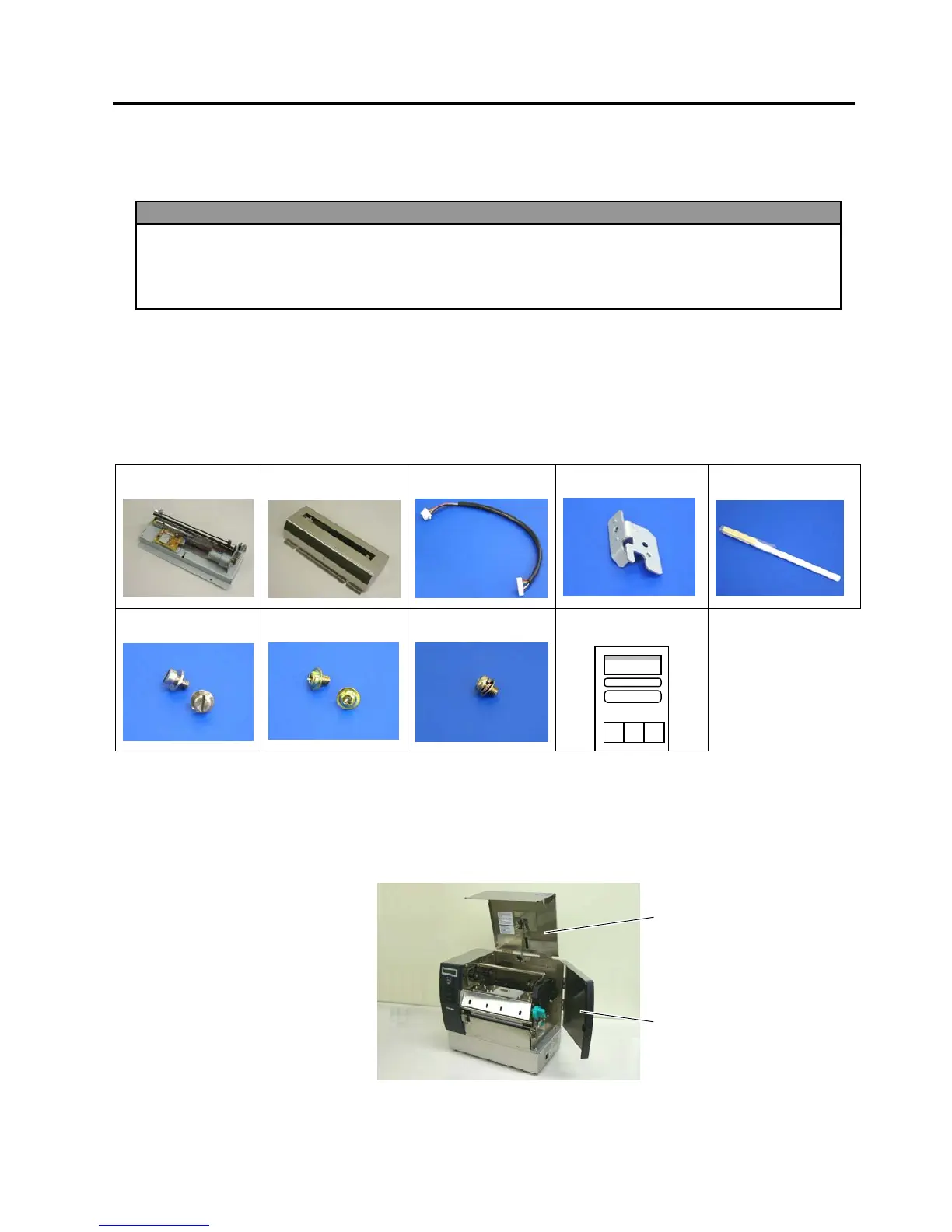

• Packing List
The following parts are supplied with the kit. Make sure you have all items shown below.
Cutter Unit (1 pc.)
Cutter Module Cover
(1 pcs.)
Cutter Harness (1 pc.)
Cutter Support Plate
(1 pc.)
Print Head Cleaner
(1 pc.)
Cutter Attaching
Screw (2 pcs.)
FL-4x6 Screw (2 pcs.)
SM4x6 Screw (1 pc.)
Installation Manual
(1 copy)
Note: for how to use the print head cleaner, please refer to the Owner’s Manual.
• Installation Procedure
1. Turn the power off.
2. Open the right side cover and top covers.
WARNING!
1. Turn the printer power off and disconnect the power cord before installing an optional
equipment.
2. Be careful not to pinch your fingers or hands with the covers.
3. Be careful not to injure your fingers when installing the cutter module.
Top Cover
Right Side Cover
To Next Page
