ADM/DSS Console
ADM
72 Strata CIX DP5000-series Telephone UG 11/08
ADM
Buttons and LEDs

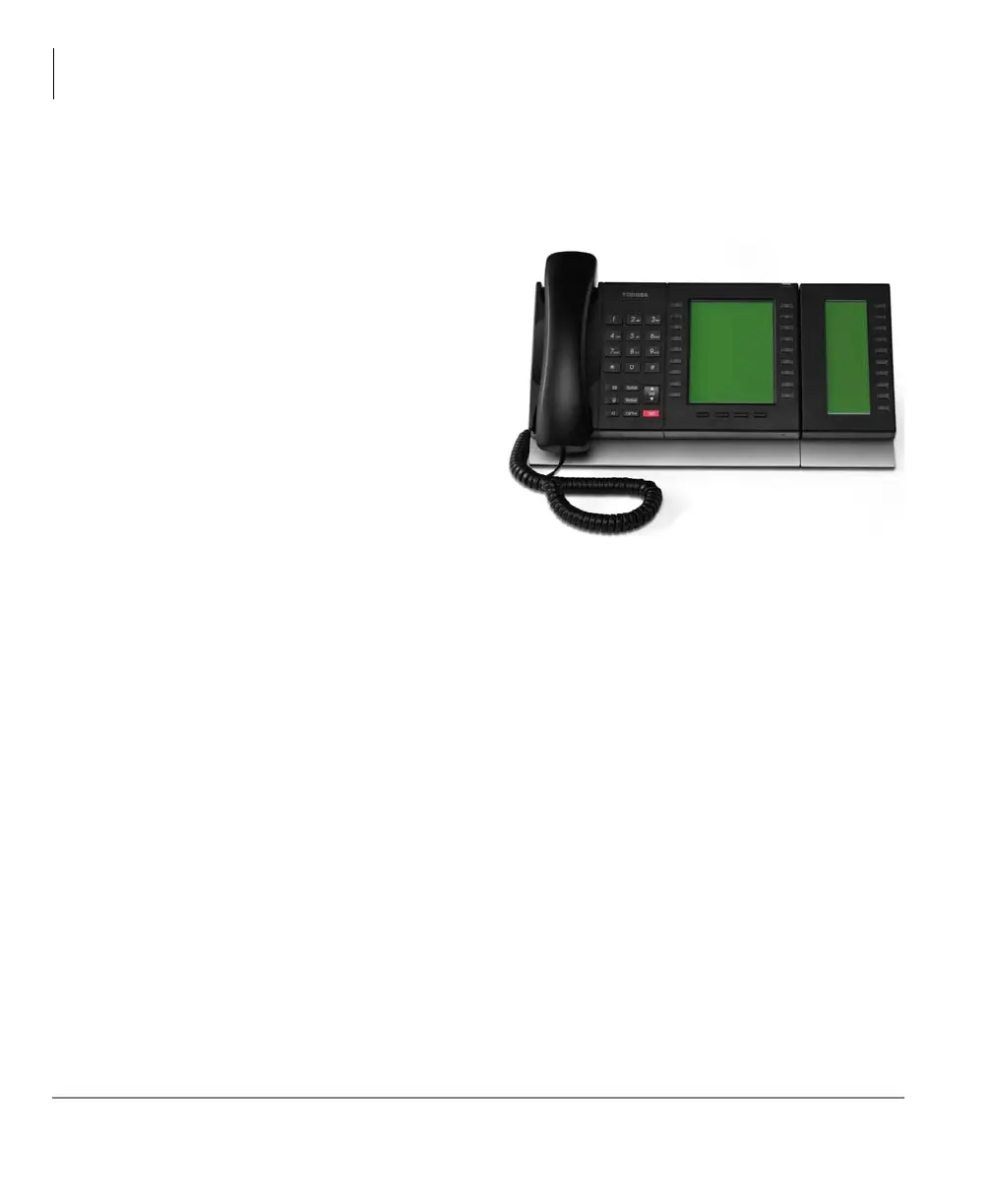

The 10 button LED add on module
and the 20 button keystrip add on
module have programmable feature
buttons that can be assigned as CO
Line, Directory Number, DSS, One
Touch Speed Dial or any other
programmable feature.
When a Programmable Feature
Button is programmed as a DSS
button or a Line button, it will have an
LED that provides a status of the
outside line or station assigned to it.
The DSS button acts like a speed dial
button to a specific extension.
• A station or line shows steady red when in use by others; green when in use by
your extension.
• A DSS LED will flash red while making a call and turn intermittently green once
connected.
• An outside Line LED is green when the outside line is in use by your extension. It
is red if it is in use by another telephone user.
