e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY and REPLACEMENT
4 - 212
4.10.9 Upper paper exit roller

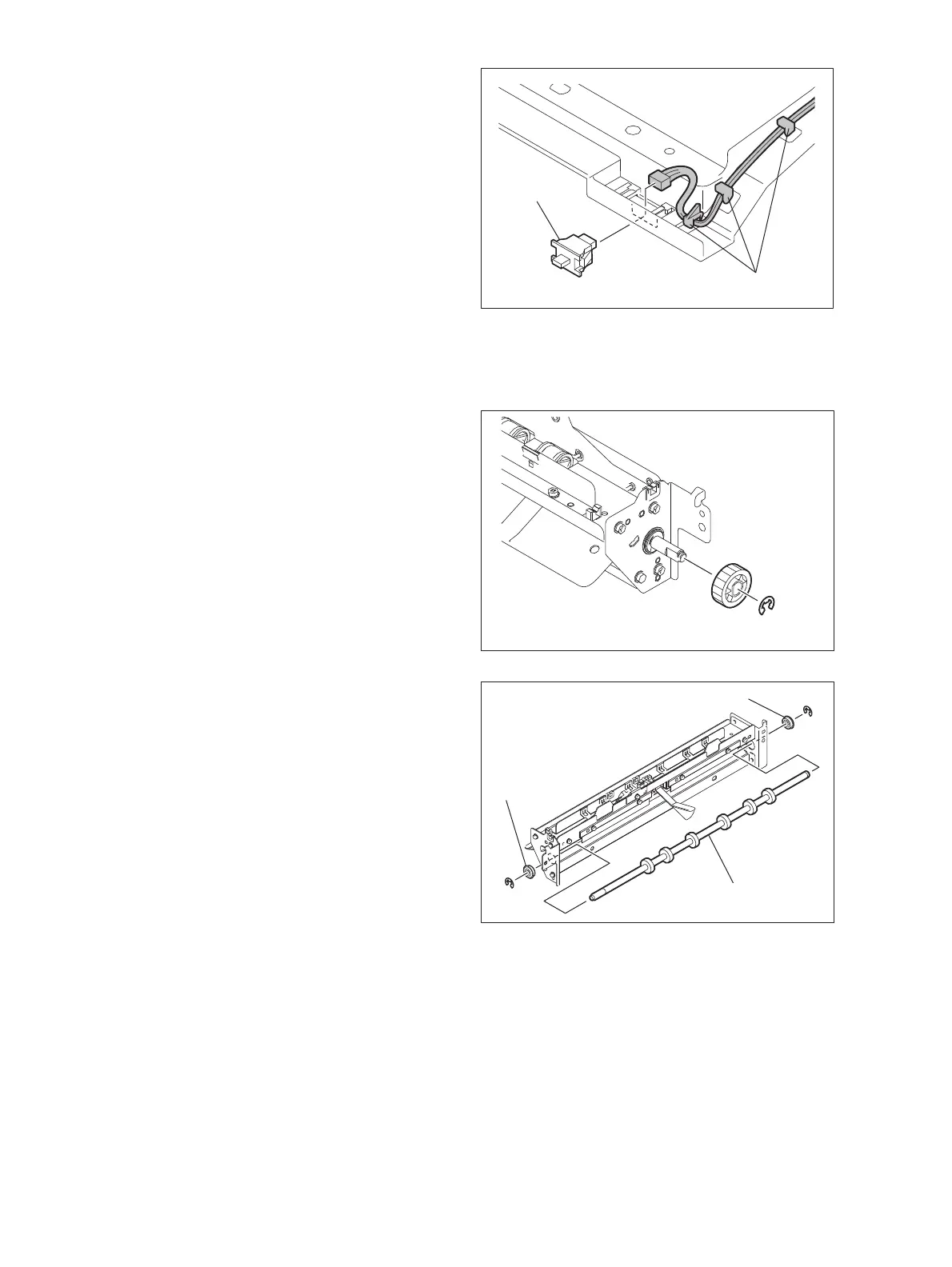

(4) Release a harness from 3 hooks [1].
(5) Take off the reverse path cover switch (SW5)
[2] from the sensor bracket.
(6) Disconnect a connector from the reverse
path cover switch [2].
Fig. 4-614
(1) Take off the bracket of the upper paper exit
roller unit.
P. 4-208"4.10.5 Upper paper exit sensor
(S61) / Upper exit tray paper full detection
sensor (S62)"
(2) Remove the E-ring from the rear side and
then remove the gear.
Fig. 4-615
(3) Remove E-rings from both ends.
(4) Take off the upper paper exit roller by
removing the gear and the bearing.
Fig. 4-616
[
1
]
[
2
]
Upper paper exit roller
Bearing
Bearing
