PREVENTIVE MAINTENANCE (PM)
7 - 19
7.6.3 Duplexing unit

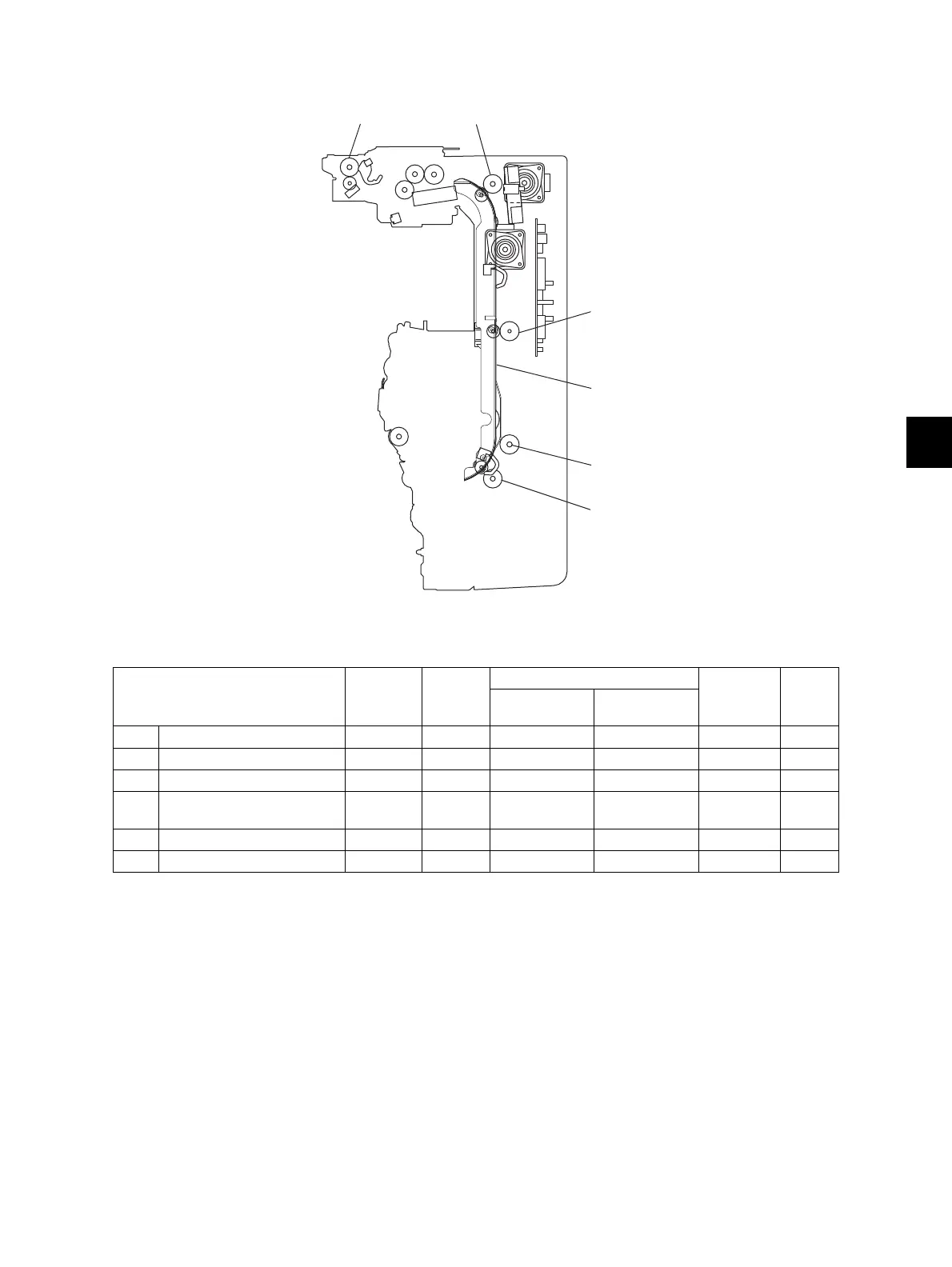

Fig. 7-14
Items to check Cleaning
Lubrica
tion/
Coating
Replacement
Operation
check
Parts
list
<P-I>
(x 1,000
sheets)
(x 1,000 drive
counts)
C1 ADU transport roller 1 A R R 18-6
C2 ADU transport roller 2 A R R 18-5
C3 ADU transport roller 3 A R R 18-7
C4 Duplexing bridge transport
roller
A R R 20-12
C5 Pulley stud W1
C6 Paper guide B 19-2
C4
C1
C2
C3
C6
C5

Toshiba e-studio 6570c Specifications

General

Category	All in One Printer
Type	Color Multifunction Printer
Printing Technology	Laser
Print Speed (Black)	65 ppm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Functions	Print, Copy, Scan
Scan Resolution	600 dpi
Original Size	11 x 17 inches
Automatic Document Feeder	Yes
Connectivity	Ethernet, USB
Network Connectivity	Ethernet
