Toshiba e-studio 6570c User Manual

4
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
DISASSEMBLY and REPLACEMENT
4 - 301

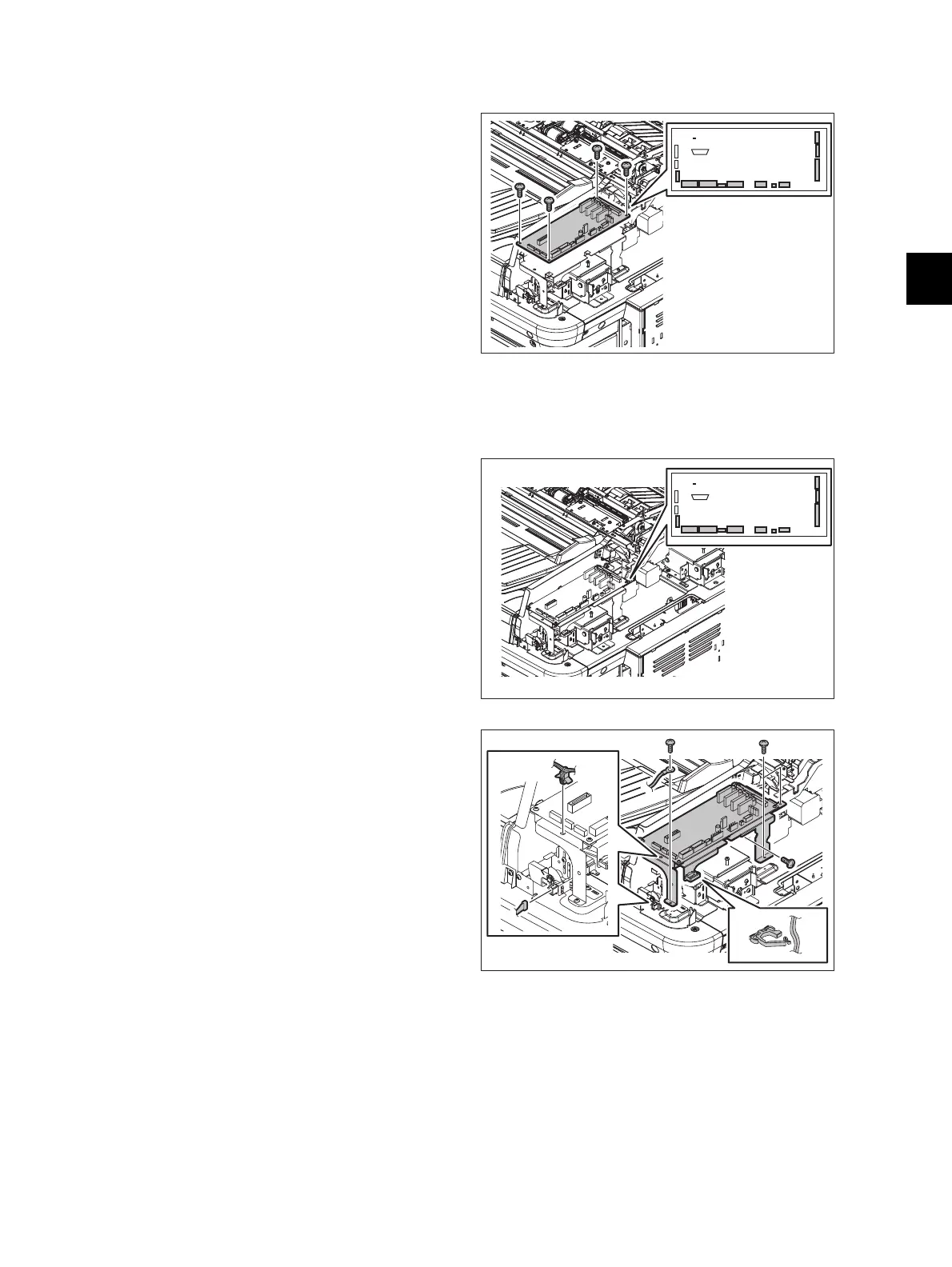

4.11.53 RADF board (RADF)
4.11.54 RADF board bracket
(1) Take off the RADF rear cover.
 P. 4-258"4.11.3 RADF rear cover"
(2) Disconnect 11 connectors. Remove 4 screws
and take off the RADF board.
Notes:
When replacing the RADF board, be sure to
perform the original reading start sensor
adjustment.
 P. 6-126"6.12.8 Original reading start
sensor adjustment"
Fig. 4-878
(1) Take off the RADF rear cover.
 P. 4-258"4.11.3 RADF rear cover"
(2) Disconnect 11 connectors.
Fig. 4-879
(3) Disconnect 1 connector. Take off the harness
clamp. Remove 4 screws and take off the
RADF board bracket.
Fig. 4-880
LED3
LED3

Toshiba e-studio 6570c Specifications

General

Category	All in One Printer
Type	Color Multifunction Printer
Printing Technology	Laser
Print Speed (Black)	65 ppm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Functions	Print, Copy, Scan
Scan Resolution	600 dpi
Original Size	11 x 17 inches
Automatic Document Feeder	Yes
Connectivity	Ethernet, USB
Network Connectivity	Ethernet
