Toshiba HFC R407C - Normal Operation - Heat Mode

Toshiba HFC R407C
80 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
22

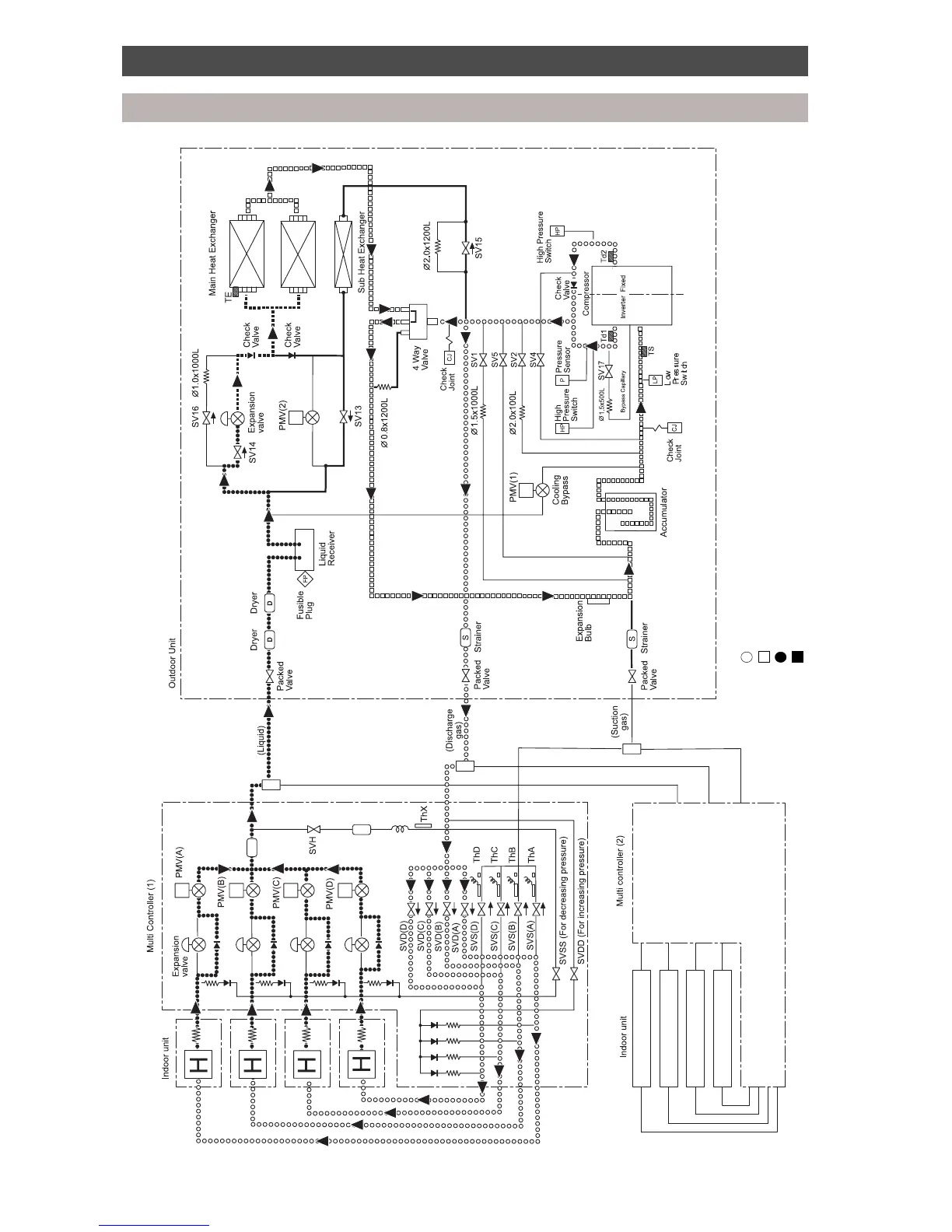

Refrigeration piping schematic diagram
Normal operation - heat mode
Key:
High pressure gas
Low pressure gas
High pressure liquid
Low pressure liquid
