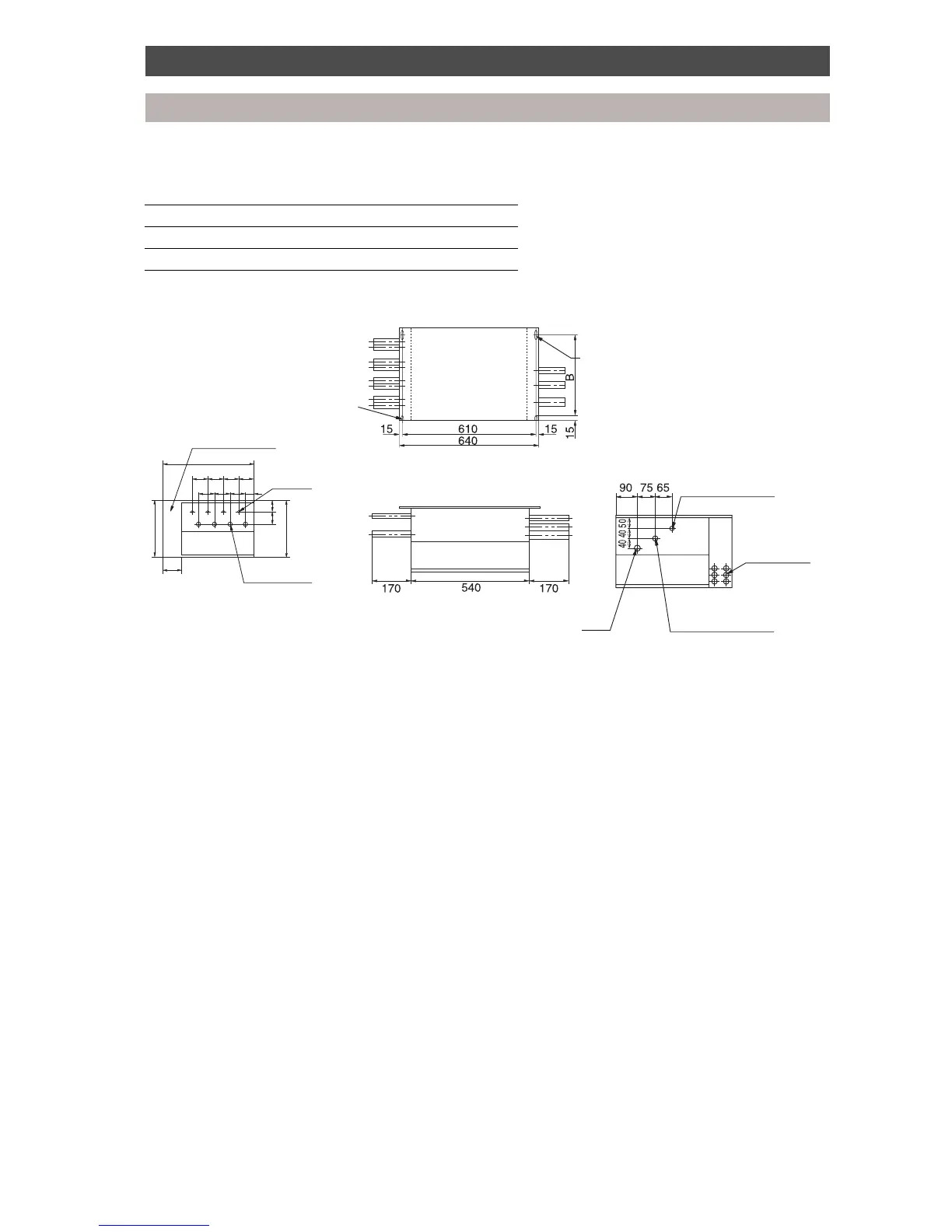

Construction view
Multi Controller
Model A B C D E F
RBM-Y1034F-PE 460 300 - 90 - 90
RBM-Y1044F-PE 530 370 90 90 90 90
All dimensions are in mm
A
C
D
EF
90
90
55
55
110
300
300
80
50
Electric parts box
Refrigerant pipe
connection (brazing)
Liquid side ø 12.7
Refrigerant pipe
connection (brazing)
Gas side ø 19
2 notches for
hanging bolts
(12 x 21)
2 slots for
hanging bolts
(12 x 52)
3-pipe:
RBM-Y1034F/Y1044F-PE
Connection (brazing)
Liquid side ø 15.9
Refrigerant pipe
connection (brazing)
Delivery gas side ø 19
Refrigerant pipe
connection (brazing)
Suction gas side ø 28.6
Wiring knockouts
6 x ø 20
