41
Troubleshooting

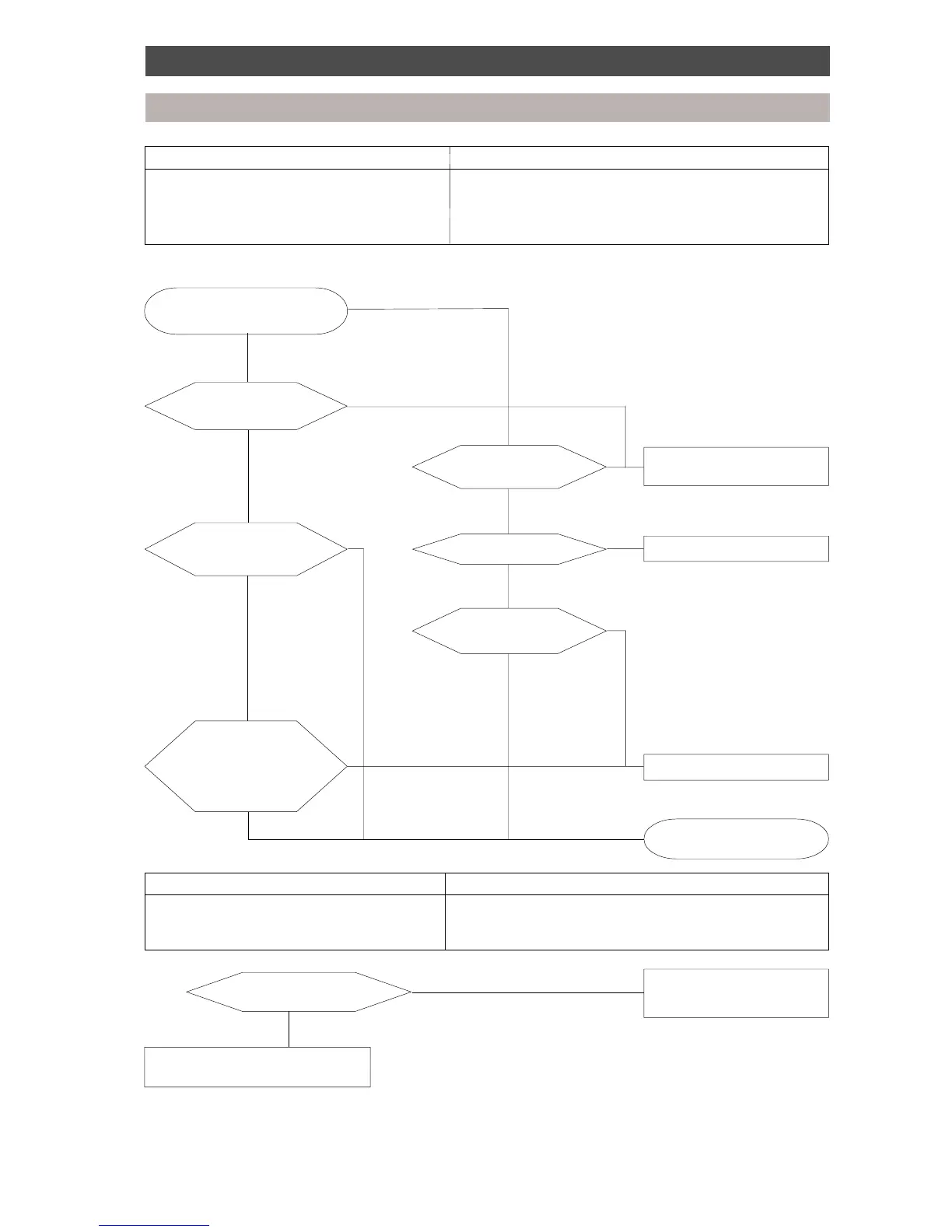

Diagnostic procedure for check code
Check code Operation cause
[11] 1. Fan motor circuit connection error.
Indoor fan motor short circuit alarm 2. Capacitor error.
3. Fan motor error.
4. Defective indoor PC board.
Does indoor fan operate for a
short period after resetting and
resuming?
Is there a connection error of
CN07 connector?
Is approx. DC12V to 13V output
to CN07 connector 1-3 pins?
Is revolution pulse input from
hole IC to CN18 connector 2-3
pins during fan operation?
(Measurement by tester:
Approx. DC2 to 2.5V)
Is there a connection error
of CN07 connector?
Is capacitor normal?
Confirm there is no
mechanical lock on the fan
motor?
Modify connection and wiring.
Replace capacitor.
Replace fan motor.
Replace MCC-1292
PC board
j
j
j
j
j
j
j
j
j
j
h
h
h
h
Ye s
Ye s
Ye s
Ye s
Ye s
Ye s
No
Ye s
No
No
No
No
No
No
Check code Operation cause
[12] 1. Irregularity of power source.
Indoor PC board short circuit alarm 2. Noise of peripheral equipment.
3. Defective indoor PC board.
Is there an irregularity of
power source?
Check power source voltage, modify
lines, remove noise, etc.
Indoor PC board check
Defective t Replacement
j
h
No
Ye s
To Next Page
