Toshiba M5 Maintenance Manual

4 Replacement Procedures 4.16 Video board
4.16 Video board
Removing the Video board
To remove the video board, follow the steps below and refer to Figure 4-28 to 4-29.
1. Remove the video cable holder while releasing latches. (one latch from the back)
2. Disconnect the video cable from the connector CN9600 on the system board.
Latches
video cable holder
Video cable
CN9610
CN9600

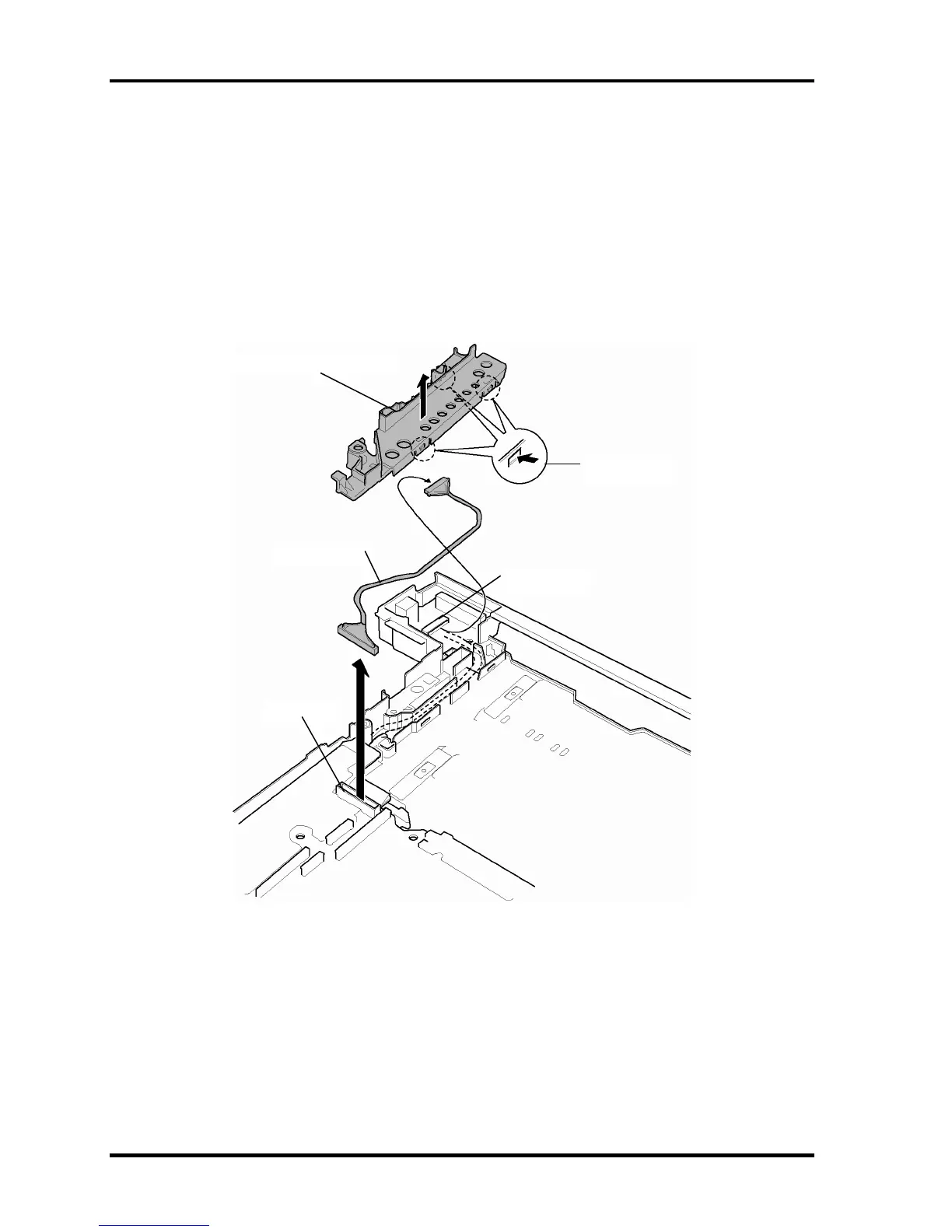

Figure 4-28 Removing the video cable holder
3. Disconnect the video cable from the connector CN9610 on the video board.
4-44 [CONFIDENTIAL] TECRA M5 Maintenance Manual (960-542)
