4.20 Speaker 4 Replacement Procedures
PORTÉGÉ R700 Maintenance Manual (960-833) [CONFIDENTIAL] 4-59
4.20 Speaker
Removing the Speaker
To remove the speaker, follow the steps below and refer to Figure 4-36 and 4-37.
1. Turn up the insulator and release the wireless LAN antenna cable and speaker
harness.
2. Remove the following screw and speaker holder L.
• M2.5×6B FLAT HEAD ×1

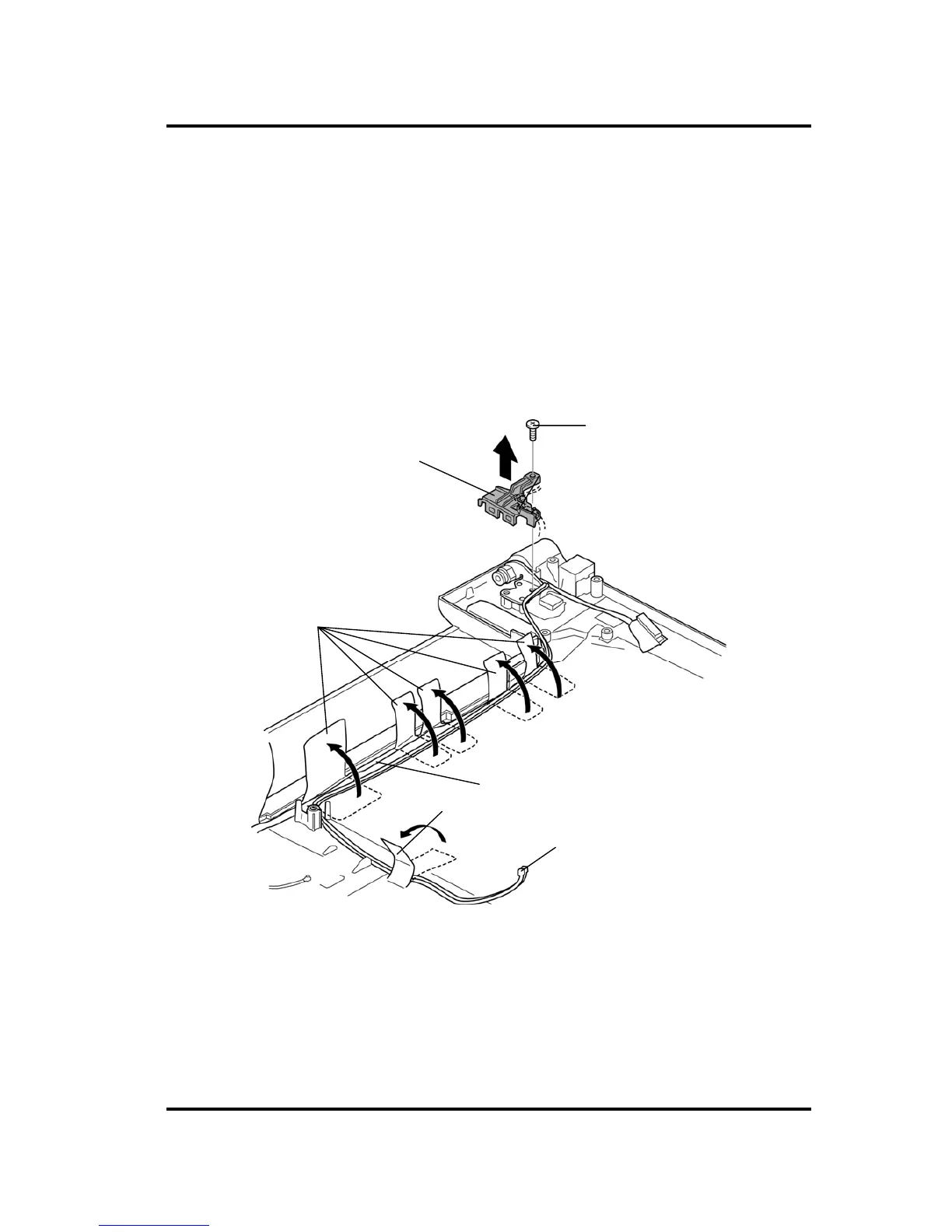

Figure 4-36 Removing the speaker (1)
Speaker holder L
Insulator
M2.5x6B FLAT HEAD
Wireless LAN antenna cable
Speaker harness
Insulator
