Toshiba PORTEGE R700 Series Maintenance Manual

Troubleshooting Procedures
2.15 SD Card Slot Troubleshooting
This section describes how to determine if the computer's SD Card functions are functioning
properly. Perform the steps below starting with Procedure 1 and continuing with the other
procedures as required.
Procedure 1: Check on Windows OS
Procedure 2: Connector Check and Replacement Check
2.15.1 Procedure 1 Check on Windows OS
Insert a SD Card (SD memory card/Multimedia card) into the slot. Check if the installed
Windows recognizes automatically the SD Card and the data in the SD Card can be read.
If the card is not recognized or data are not red, go to Procedure 2.
2.15.2 Procedure 2 Connector Check and Replacement Check

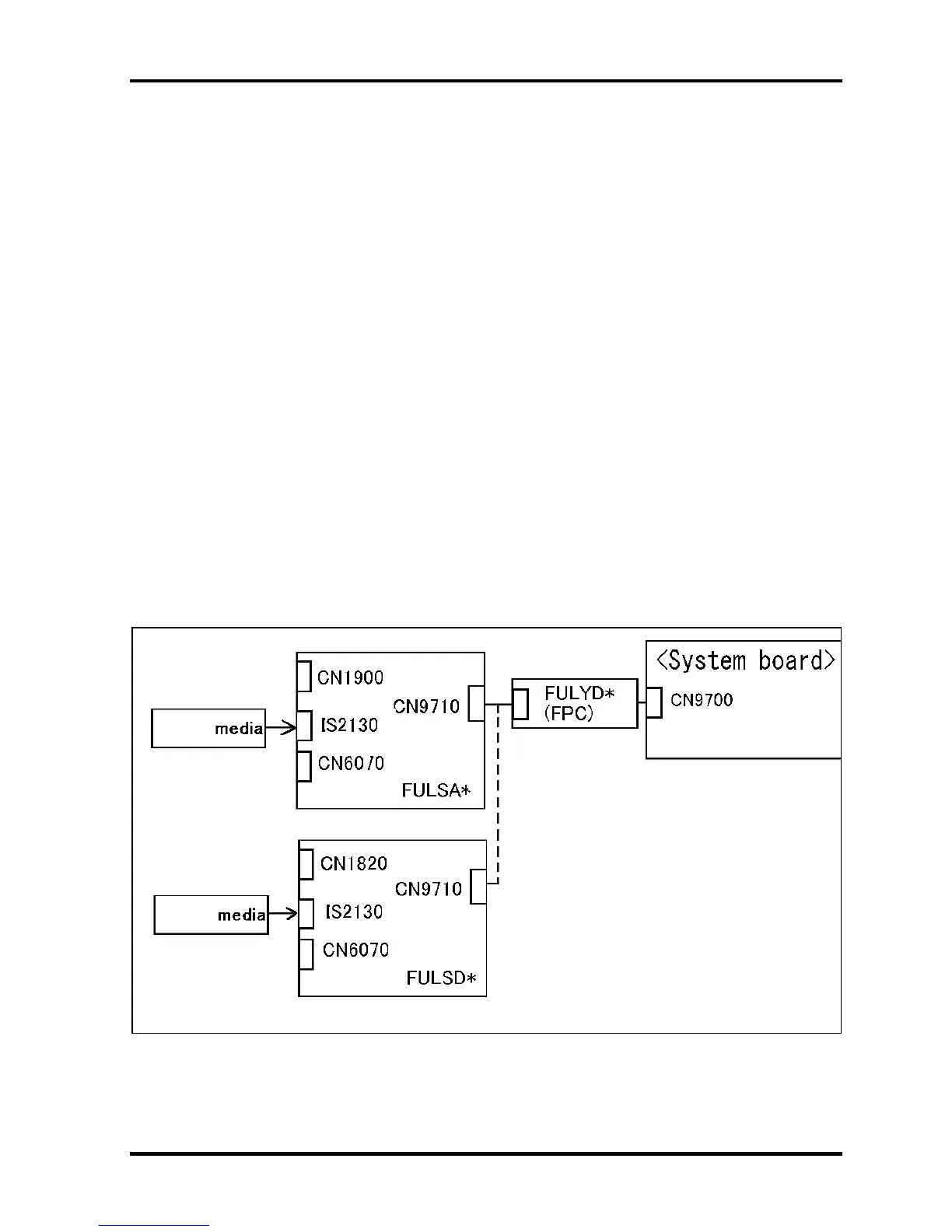

The SD Card is connected to IS2130 on the SD/ODD board (FULSA*or FULSD*).
SD Card supports SD memory card/Multimedia card.
SD
SD
2-54 PORTÉGÉ R700 Series Maintenance Manual (960-833) [CONFIDENTIAL]

Toshiba PORTEGE R700 Series Specifications

General

Processor	Intel Core i5 or i7
Display Size	13.3 inches
Resolution	1366 x 768
RAM	Up to 8GB DDR3
Graphics	Intel HD Graphics
Operating System	Windows 7 Professional
Optical Drive	DVD SuperMulti Drive
Bluetooth	Bluetooth 2.1 + EDR
Card Reader	SD Card Reader
Webcam	Integrated Webcam
Storage	HDD or SSD options available
Wireless	Wi-Fi 802.11 a/g/n
Ports	USB 2.0, VGA, HDMI, Ethernet
Weight	Approximately 1.4 kg (3.1 lbs)
Battery Life	Up to 8 hours (depending on configuration and usage)
