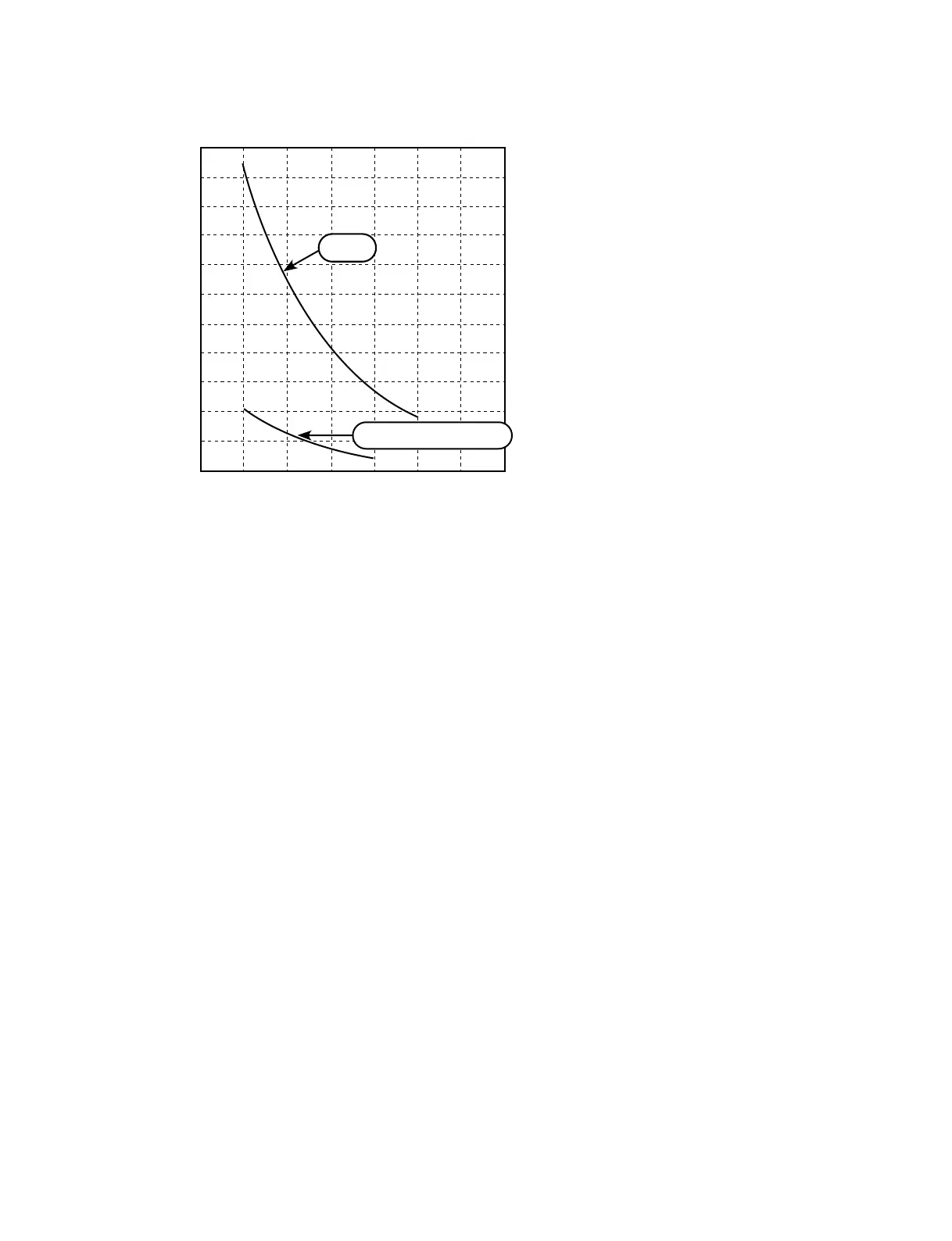

[1] Sensor characteristic table
TD : Discharge temp. sensor
TA : Room temp. sensor
TC : Heat exchanger temp. sensor
TO : Outdoor temp. sensor
TE : Outdoor heat exchanger temp. sensor
TS : Suction temp. sensor
TD
100
90
80
70
60
50
40
30
20
10
0
TA, TC, TO, TE, TS
100203040
Temperature (°C)
Resistance value (kW)
