FILE NO. SVM-05026
− 73 −

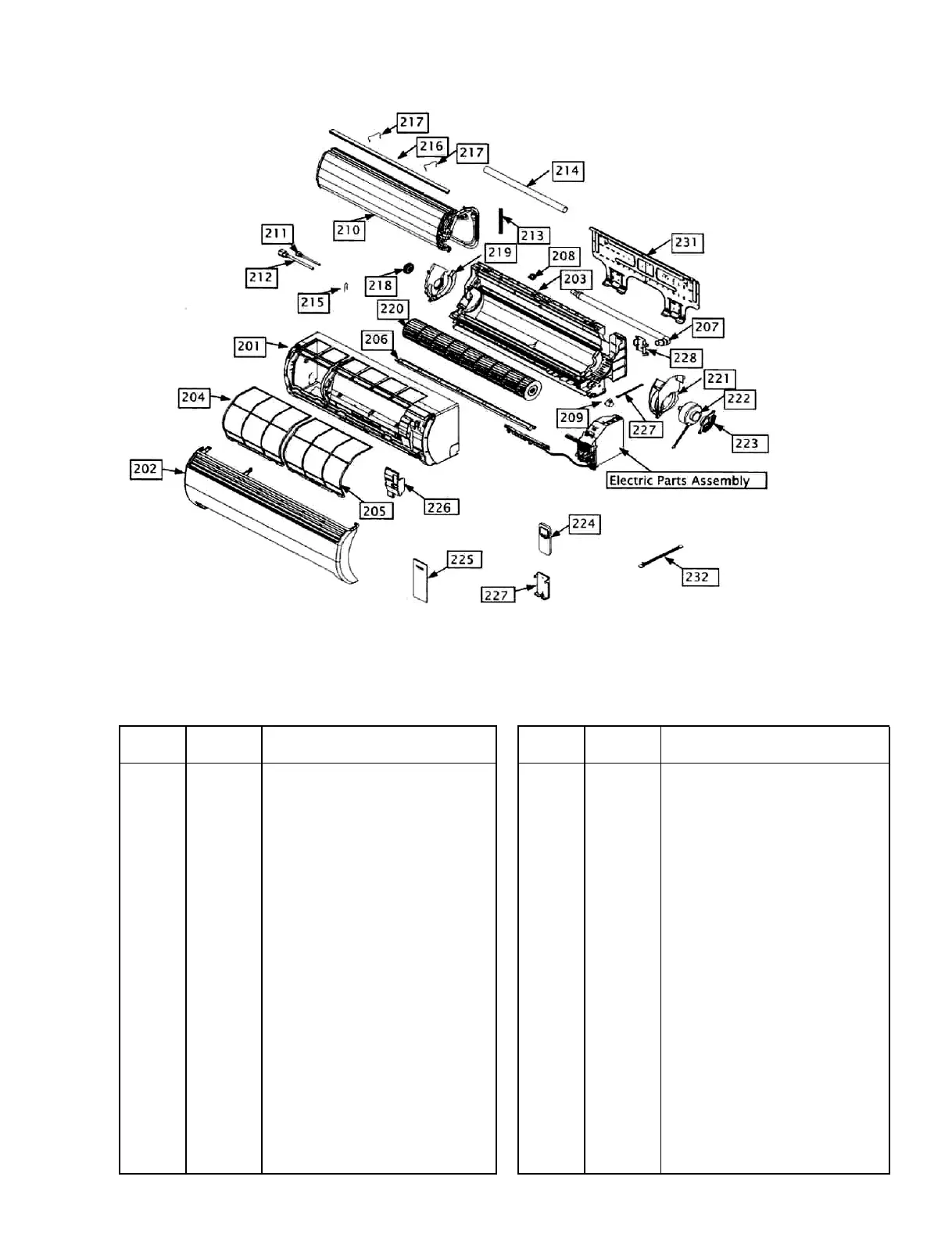

12-2. Indoor Unit
Location Part Location Part
No. No. No. No.
201 43T00414 FRONT PANEL ASSY 221 43T39302 BAND MOTOR-L
202 43T09342 INLET GRILLE ASSY 222 43T21338 MOTOR FAN
203 43T03316 BACK BODY ASSY 223 43T39303 BAND MOTOR-R
204 43T80311 AIR-FILTER(R) 224 43T69421 WIRELESS-REMOCO
205 43T80310 AIR FILTER (L) 225 43T85468 OWNER'S MANUAL
206 43T09328 HORIZONTAL LOUVER
(For RAS-10NKV-E
207 43T70002 DRAIN-HOSE
and RAS-10NKV-A)
208 43T79301 CAP-DRAIN 225 43T85469 OWNER'S MANUAL
209 43T21321 MOTOR; STEPPING
(For RAS-10NKV-E)
210 43T44366 REFRIGERATION CYCLE ASSY 225 43T85470 OWNER'S MANUAL
211 43T47006 PIPE; DELIVERY
(For RAS-10NKV-E)
212 43T47005 PIPE; SUCTION 225 43T85471 OWNER'S MANUAL
214 43T11301 PIPE SHIELD
(For RAS-10NKV-E)
215 43T19302 HOLDER SENSOR 225 43T85472 OWNER'S MANUAL
216 43T49302 PLATE OF EVA SEAL
(For RAS-10NKV-E)
217 43T49006 HOLDER FOR PLATE 225 43T85475 OWNER'S MANUAL
218 43T22002 ASM-M-BEARING
(For RAS-10NKV-E)
219 43T39301 BASE; BEARING 226 43T62302 TERMINAL COVER
220 43T20302 FAN; CROSS FLOW 227 43T60317 CORD MOTOR LOUVER
228 43T07303 HOLDER PIPE
231 43T82301 PLATE; INSTALLATION
Description Description
