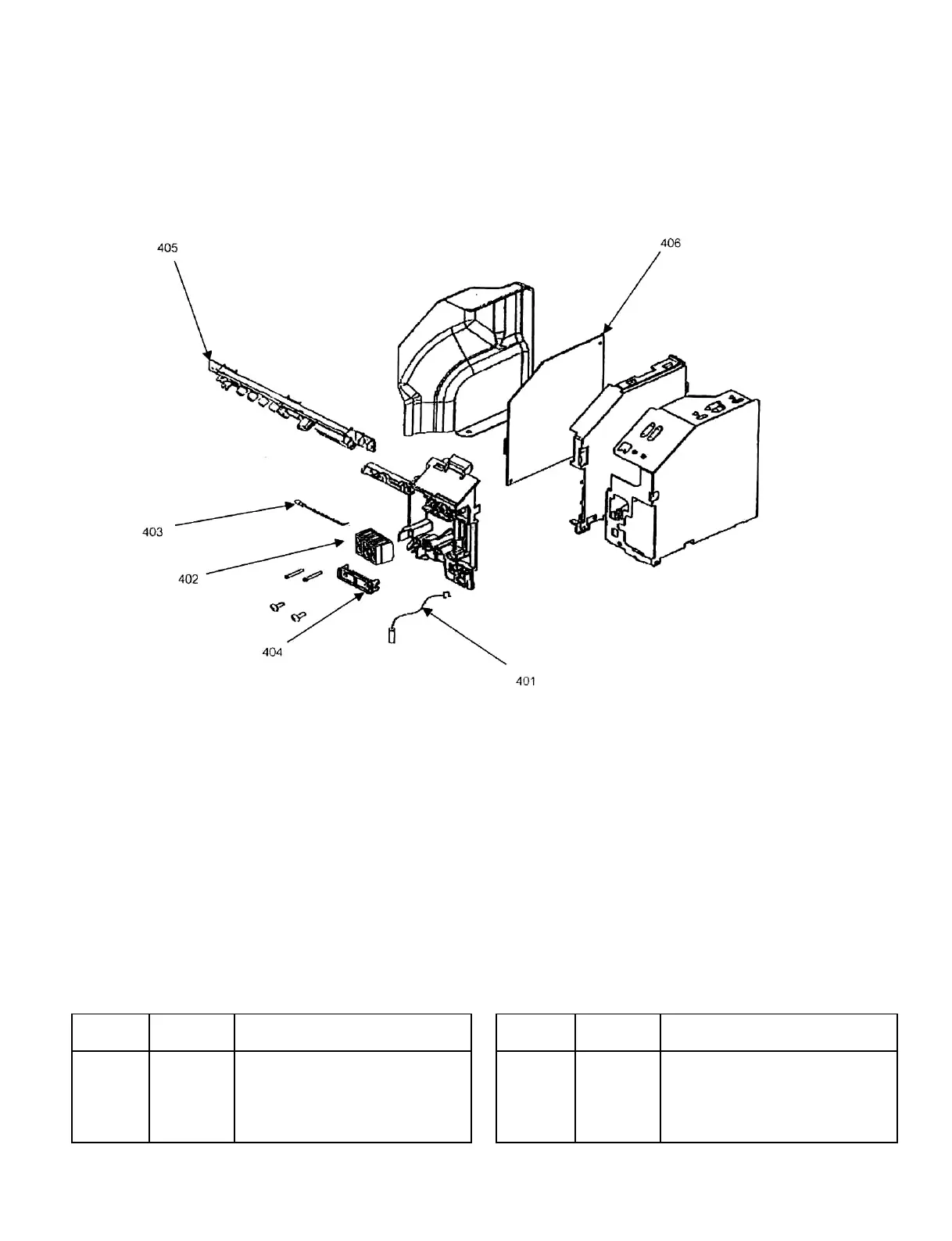

12. EXPLODED VIEWS AND PARTS LIST
12-1. Indoor Unit (E-Parts Assy)
Location Part Location Part
No. No. No. No.
401 43T69319 TEMPERATURE SENSOR 404 43T62003 CORD CLAMP
402 43T60002 TERMINAL BLOCK; 3P 405 43T69079 PC BOARD ASSY;WRS-LED
403 43T69320 TEMPERATURE SENSOR 406 43T69472 PC BOARD
Description Description
