FILE NO. SVM-05026
– 65 –
No. Part name Procedures Remarks
1) Turn the power supply off to stop the
operation of air conditioner.
2) Remove the front panel.
• Remove the 4 fixing screws.
(∅4 x 14s)
3) Remove the Electric parts cover.
1 Common
procedure
11-2. Microcomputer
Replace the thermal fuse, terminal
block, microcomputer ass’y and the
P.C. board ass’y

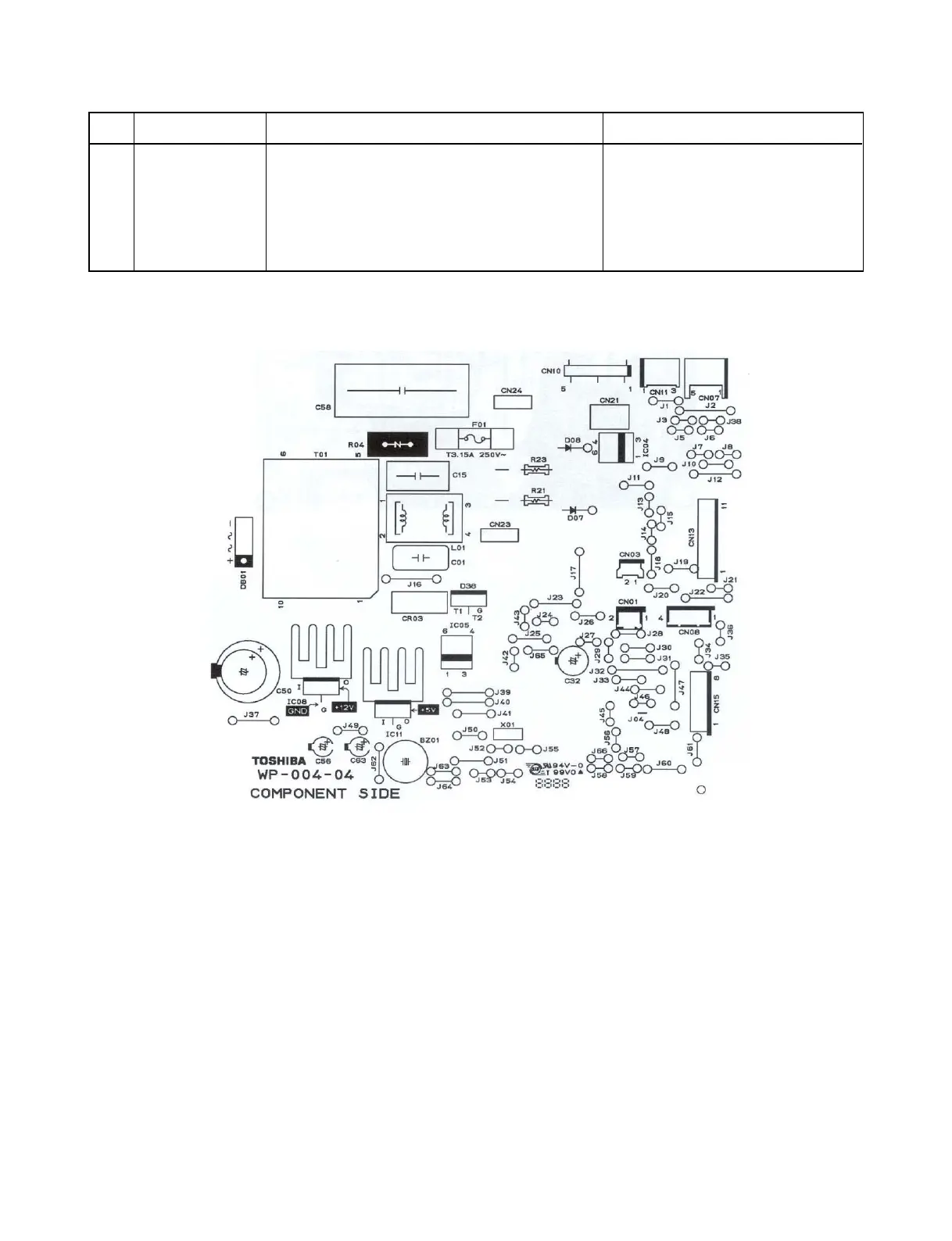

<P.C. board layout>
MCC-5009
Top View
To Next Page
