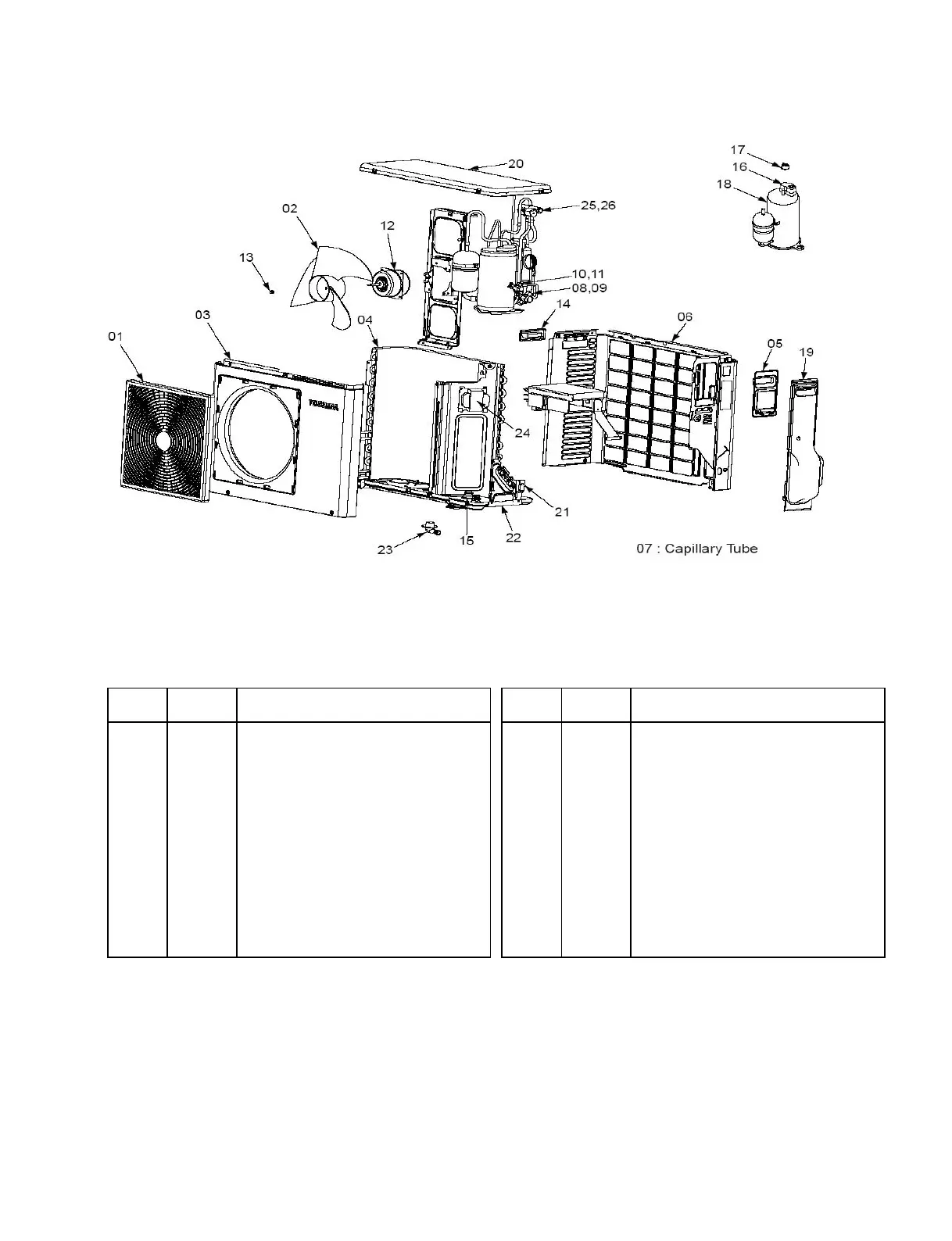

12-3. Outdoor Unit
Location Part Location Part
No. No. No. No.
1 43T19313 FAN GUARD 14 43T19312 HANDLE
2 43T20306 PROPELLER FAN 15 43T49001 CUSHION,RUBBER
3 43T00398 FRONT CABINET COATING ASSEMBLY 16 43T63005 HOLDER;THERMOSTAT;BIMETAL
4 43T43323 CONDENSOR ASSEMBLY 17 43T54304 BIMETAL THERMO
5 43T62309 TERMINAL COVER 18 43T41381 COMPRESSOR
6 43T00363 BACK CABINET COATING ASSEMBLY 19 43T62305 PACKED VALVE COVER
7 43T47308 CAPILLARY TUBE; 1.0 DIA 20 43T00394 UPPER CABINET COATING ASSEMBLY
8 43T46011 VALVE;PACKED 9.52 DIA 21 43T63301 FIXING PLATE VALVE
9 43T47332 BONNET, 9.52 DIA 22 43T42314 BASE COATING ASSEMBLY
10 43T46308 VALVE;PACKED 6.35 DIA 23 43T79305 DRAIN NIPPLE
11 43T47331 BONNET, 6.35 DIA 24 43T46313 REACTOR
12 43T21356 FAN-MOTOR (HF-240-20B-2) 25 43T46321 4 WAY VALVE
13 43T47001 NUT FLANGE 26 43T46327 COIL-4WAY ASSEMBLY
