1-7-2 E3B90DC
Reference Notes
1. Locking Tabs (L-1) and (L-2) are fragile. Be careful
not to break them.
1-1. Remove Screw (S-2).
1-2. Release five Locking Tabs (L-1).
1-3. Release three Locking Tabs (L-2) and
remove the Front Assembly.
2. Do not replace the DVD Mechanism or the DVD/
HDD MAIN BOARD Assembly separately, when
replacing the DVD Mechanism & DVD/HDD MAIN
BOARD Assembly. Order the new DVD
Mechanism & DVD/HDD MAIN BOARD Assembly.
2-1. Whenever you have replaced the HDD unit,
initialize the HDD unit. To initialize the HDD
unit, perform the following.To put the HDD &
DVD/VCR into the HDD mode, press the
[HDD] button on the remote control unit.
2-2. To put the HDD & DVD/VCR into the self-
check mode, after pressing [VARIABLE
SKIP] button, press the [3], [6], and [9]
buttons on the remote control in that order
within three seconds.
2-3. Press [ENTER] button. The HDD & DVD/
VCR is initialized and the power is turned off
automatically after two seconds.
3. When reassembling, solder wire jumpers as
shown in Fig. D8.
4. Before installing the Deck Assembly, be sure to
place the pin of LD-SW on the BOARD POWER
as shown in Fig. D8. Then, install the Deck
Assembly while aligning the hole of Cam Gear
with the pin of LD-SW, the shaft of Cam Gear with
the hole of LD-SW as shown in Fig. D8.
(S-1)
(S-1)
(S-1)
(S-1)
(S-1)

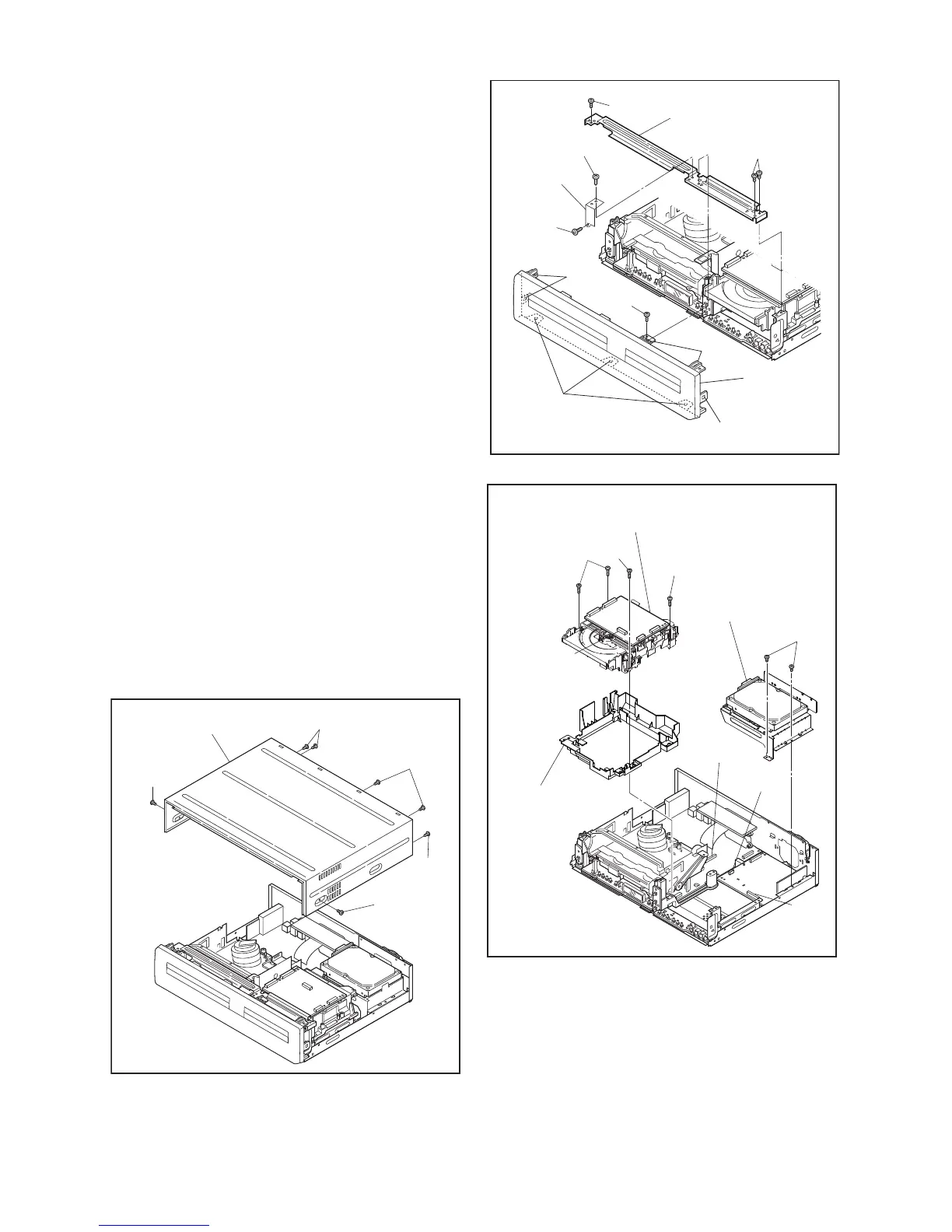

[1] Cover Top
Fig. D1
(S-3B)
(S-3B)
(L-1)
(L-2)
(L-1)
(S-3)
(S-3B)
(S-2)
(L-1)
Fig. D2
Front
Support
[2] Front
Assembly
[3] Front Bracket
(S-4)
(S-5)
(S-5)
(S-6)
CN901
Cover Dust
CN1003
CN1502
CN1001
Fig. D3
[4] HDD Assembly
[5] DVD Mechanism &
DVD/HDD MAIN BOARD
Assembly
To Next Page
